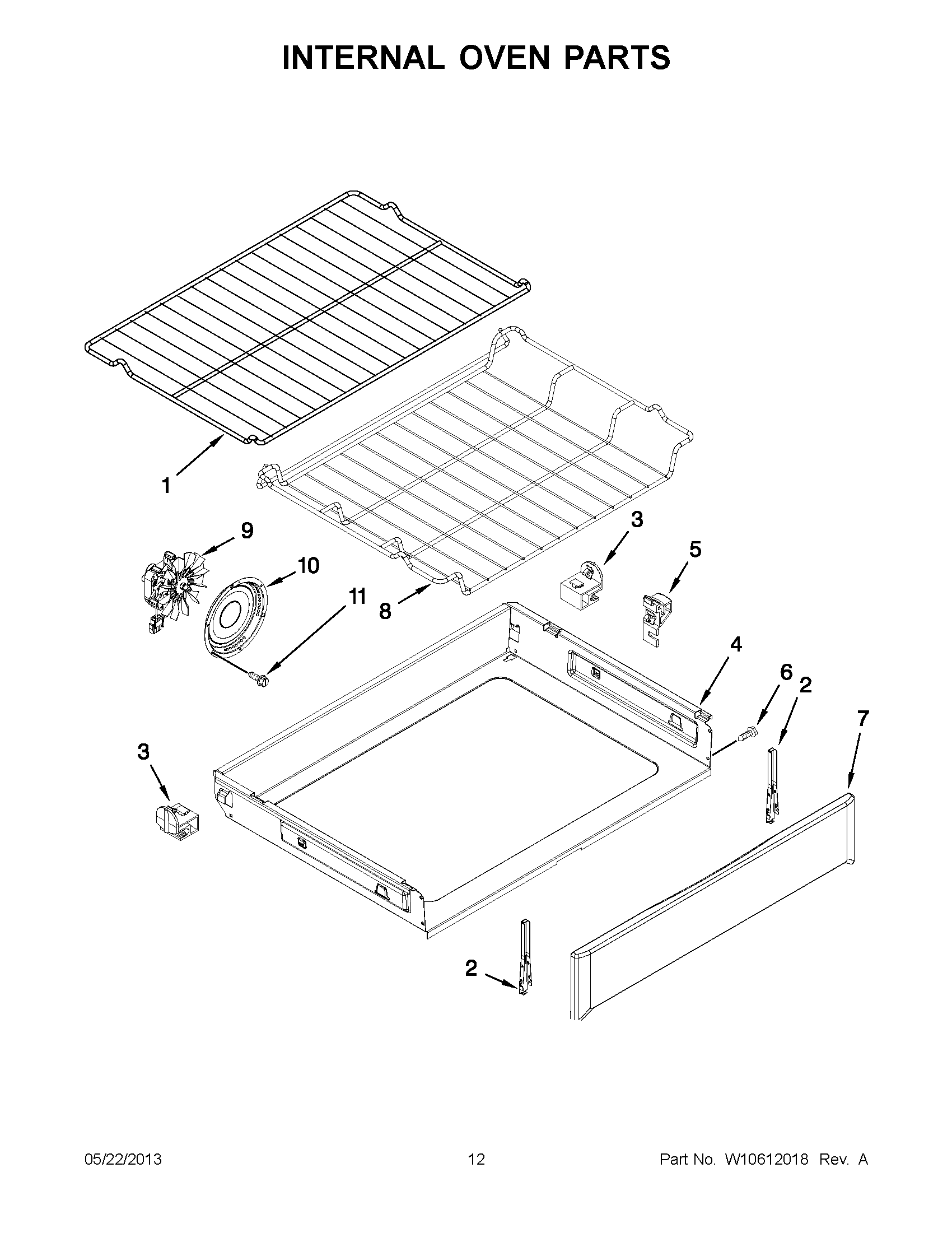

MGR8775AS1 06 – INTERNAL OVEN PARTS

MGR8775AS1 06 – INTERNAL OVEN PARTS

Written by

in

MGR8775AS1 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WPW10318026 Whirlpool Mounting Bracket
4W10813962 Whirlpool Utility Drawer
5GLIDE-RANGE DRAWER KIT
6WP3196175 Whirlpool Screw
7WPW10325673 Whirlpool Drawer Panel
7WPW10325671 Whirlpool Panel Drawer
7WPW10325670 Whirlpool Drawer Panel
8WPW10289145 Whirlpool Oven Rack
9WPL W10399033
10WPW10346154 Whirlpool Cover Assembly
11SCREW
