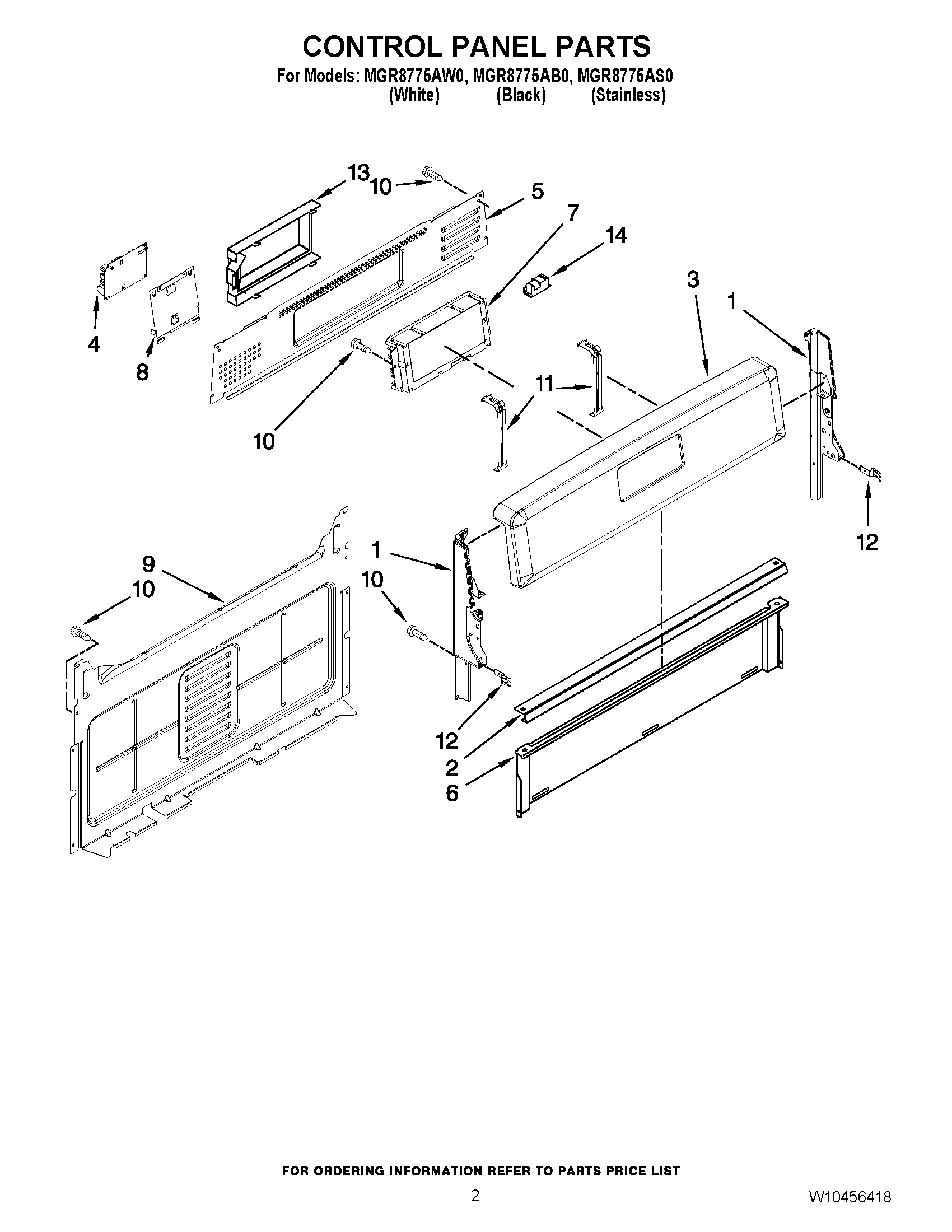

MGR8775AW0 02 – CONTROL PANEL PARTS

MGR8775AW0 02 – CONTROL PANEL PARTS

Written by

in

MGR8775AW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2BRKT-MNTG,CONSOLE
3MAY W10333932
3MAY W10333931
3MAY W10333933
4MAY W10331686
5COVER, UPPER
6SHIELD, HEAT
7MAY W10348723
7MAY W10348724
7MAY W10348725
8Brkt-Mntg, DSI
9Cover, Back
10SCREW
11MAY W10324410
12BRACKET, REAR COOKTOP
13Cover
14MODULE, SPARK
