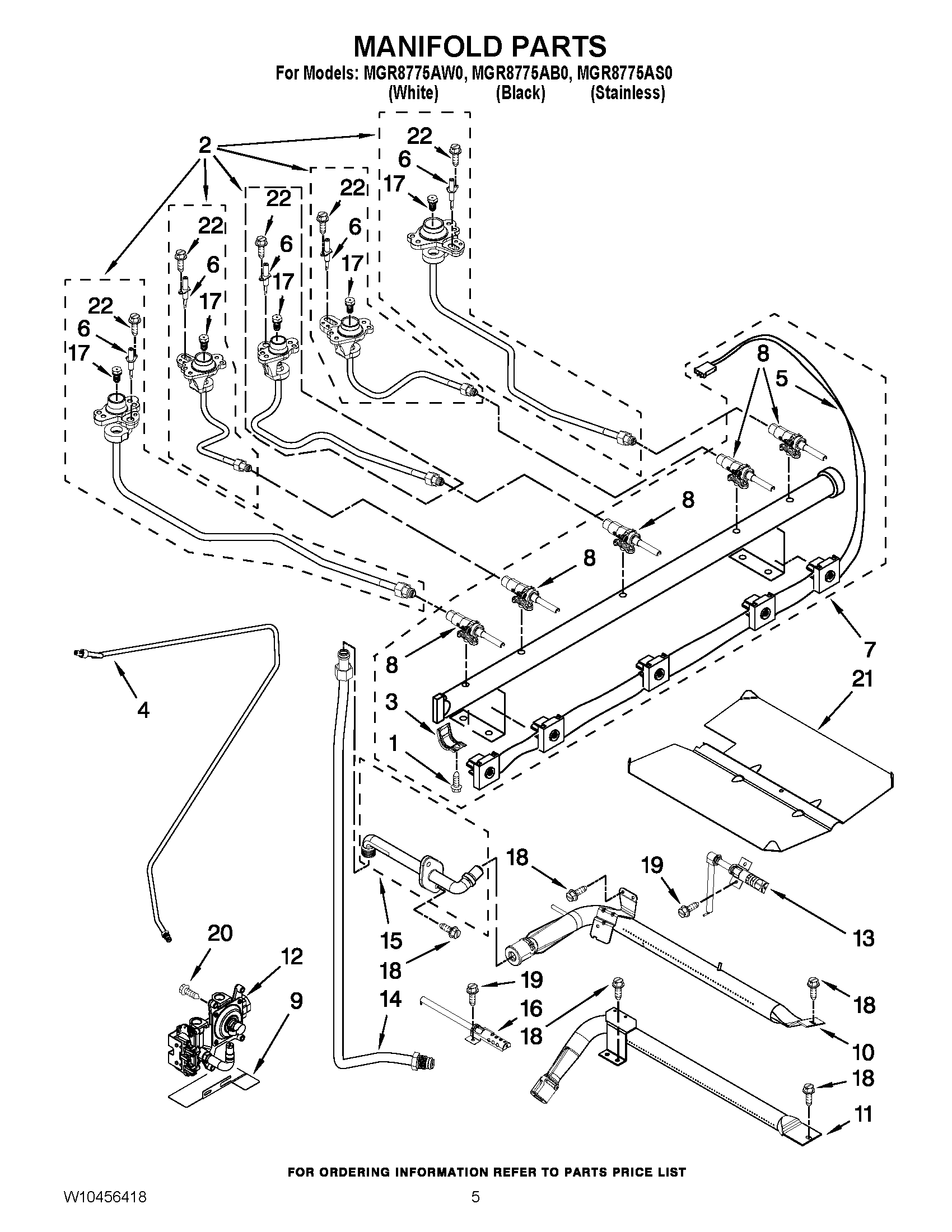

MGR8775AW0 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10400497
NI	MAY W10400494
NI	KIT, LP 5 ORIFICE CONVERSION
1	SCREW, VALVE
2	MAY W10347410
2	HOLDER, ORIFICE ((LF) 15K)
2	HOLDER, ORIFICE ((CENTER) 8K)
2	MAY W10157418
2	MAY W10157415
3	BRACKET, SADDLE VALVE
4	MAY W10224922
5	MAY W10413868
6	Electrode (4)
7	MAY W10413870
8	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	MAY W10273197
11	MAY W10323984
12	MAY W10224915
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10319134
16	ELECTRODE, BROIL
17	MAY W10170507
17	MAY W10170511
17	ORIFICE, NATURAL (5K) (RIGHT REAR)
17	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17	ORIFICE, NATURAL (9.5K) (LEFT REAR)
18	SCREW
19	SCREW
20	SCREW
21	MAY 3601P336-45
22	MAY 8273062
