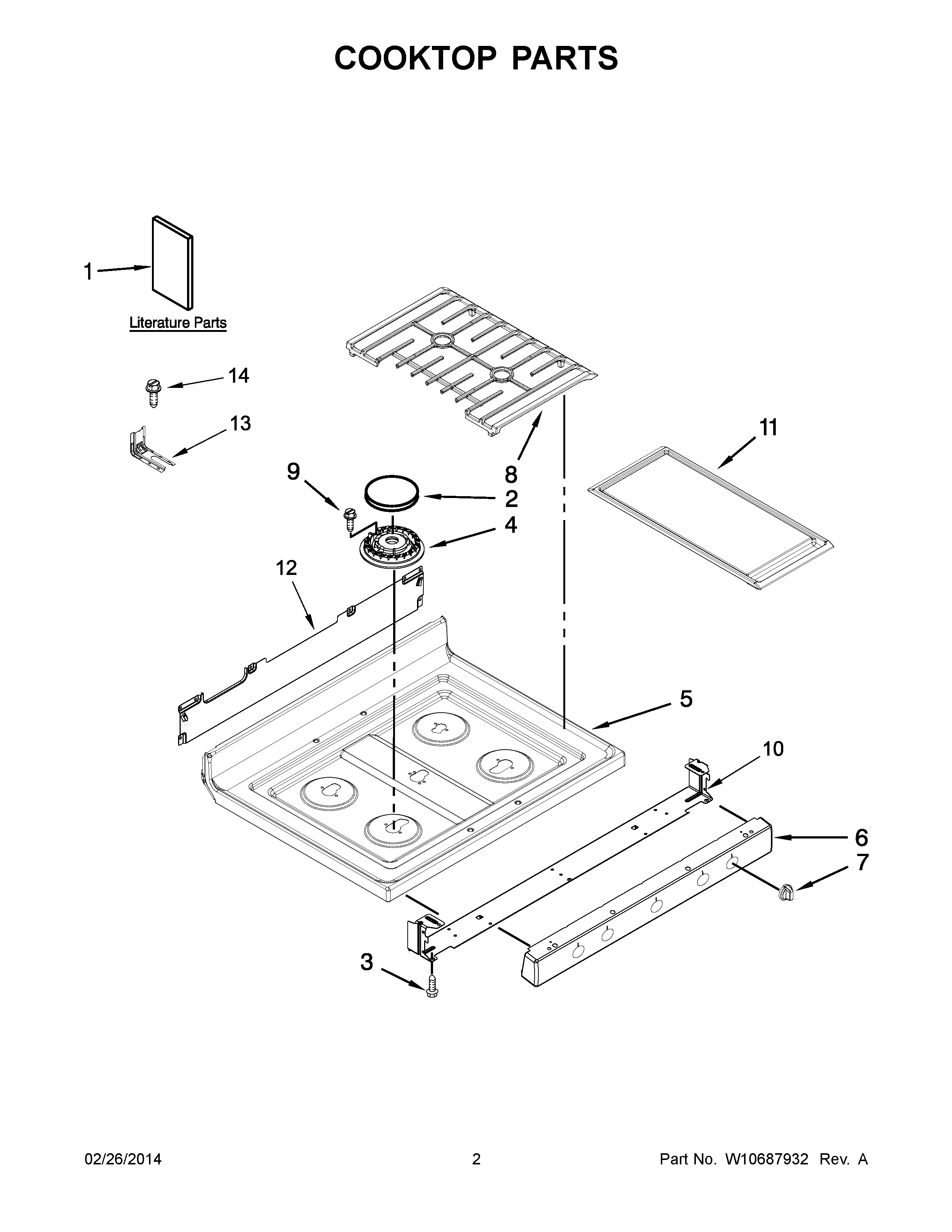

MGR8800DE0 02 – COOKTOP PARTSadmin2025-04-26T09:13:11+00:00MGR8800DE0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10553363 |
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY W10667179 |
| 1 | MAY W10538798 |
| 1 | MAY W10400066 |
| 1 | MAY W10538797 |
| 2 | CAP, BURNER (SET) |
| 3 | SCREW |
| 4 | ASSEMBLY, BURNER (6K) (RIGHT REAR) |
| 4 | ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) |
| 4 | ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT) |
| 5 | MAY W10366729 |
| 5 | MAY W10366730 |
| 6 | MAY W10655891 |
| 6 | MAY W10655890 |
| 6 | MAY W10655889 |
| 7 | MAY W10650400 |
| 8 | MAY W10655132 |
| 9 | SCREW |
| 10 | BRACKET, MAINFOLD (FRONT) |
| 11 | MAY W10347385 |
| 12 | BRACKET, MANIFOLD (REAR) |
| 13 | BRACKET, ANTI-TIP |
| 14 | SCREW, ANTI-TIP KIT |
