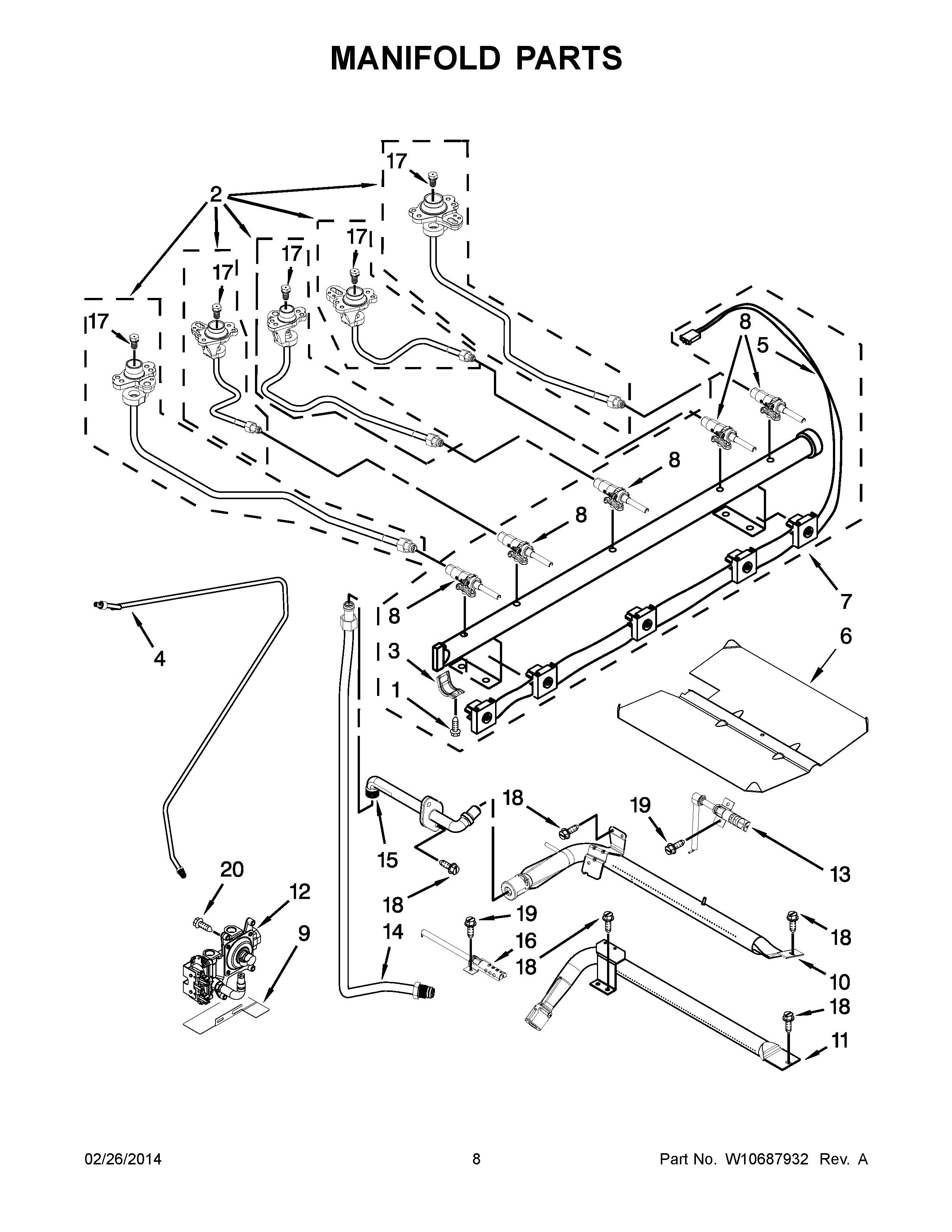

MGR8800DE0 05 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP 5 ORIFICE CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
2	HOLDER, ORIFICE (CENTER (8K))
2	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
2	MAY W10474152
2	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
3	BRACKET, SADDLE VALVE
4	MAY W10510125
5	MAY W10413869
6	MAY 3601P336-45
7	MAY W10442082
8	VALVE, GAS (RIGHT REAR)
8	VALVE, GAS (LEFT REAR)
8	VALVE GAS (18K) (LEFT FRONT & RIGHT FRONT)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10439243
12	MAY W10602004
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10319134
16	ELECTRODE, BROIL
17	ORIFICE (18K) (LEFT FRONT)
17	MAY W10170507
17	ORIFICE, NATURAL (5K) (RIGHT REAR)
17	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17	ORIFICE, NATURAL (9.5K) (LEFT REAR)
18	SCREW
19	SCREW
20	SCREW
