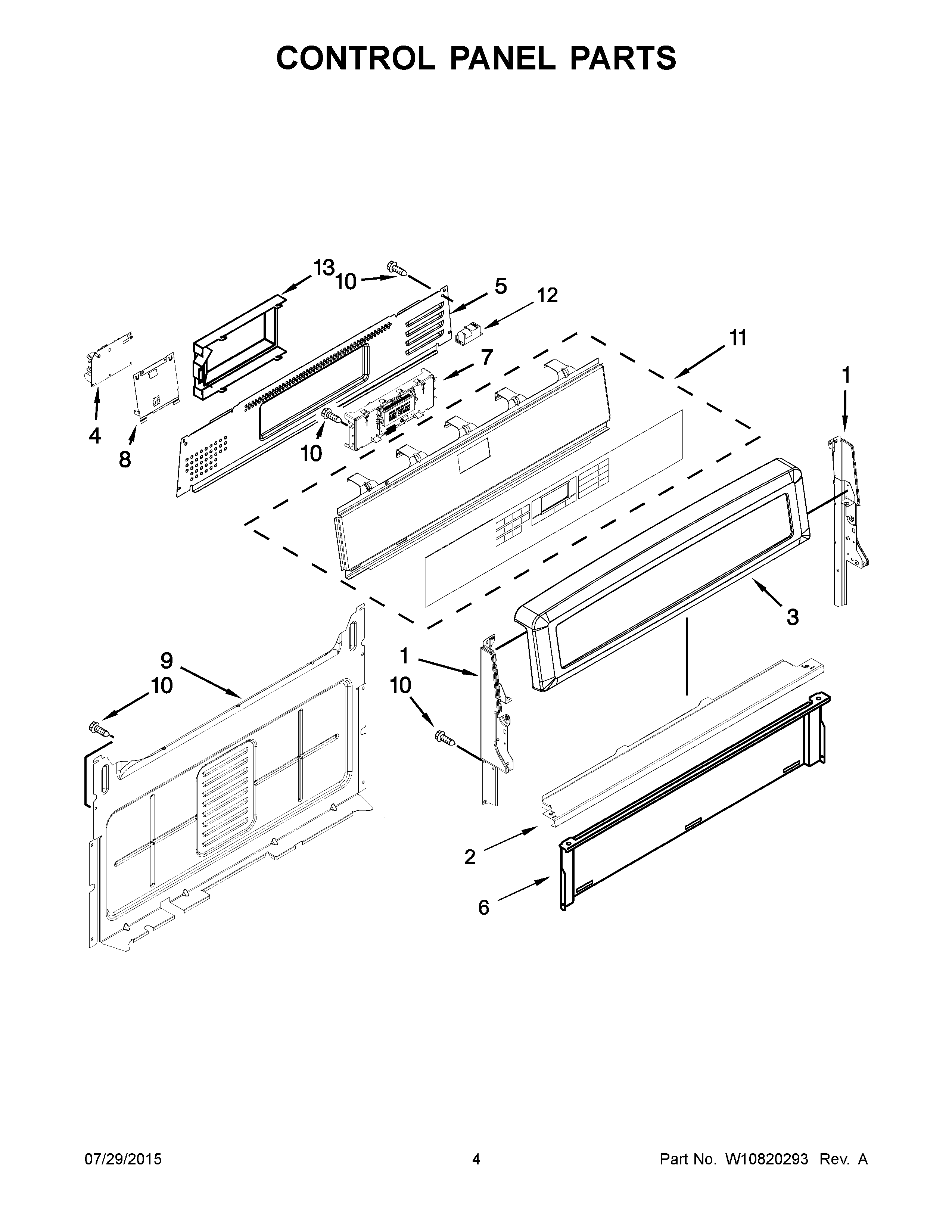

MGR8800DE2 03 – CONTROL PANEL PARTS

MGR8800DE2 03 – CONTROL PANEL PARTS

Written by

in

MGR8800DE2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1A	ENDCAP (WHITE (LEFT))
1B	ENDCAP (BLACK (RIGHT))
1C	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3A	MAY W10097270
3	MAY W10097280
3B	CONSOLE (STAINLESS)
4	MAY W10511278
5	COVER, UPPER
6	SHIELD, HEAT
7	MAY W10340325
8	BRACKET, GAS
9	Cover, Back
10	SCREW
11	MAY W10655873
11A	MAY W10655871
11B	MAY W10655875
12	MAY W10475149
13	Cover
