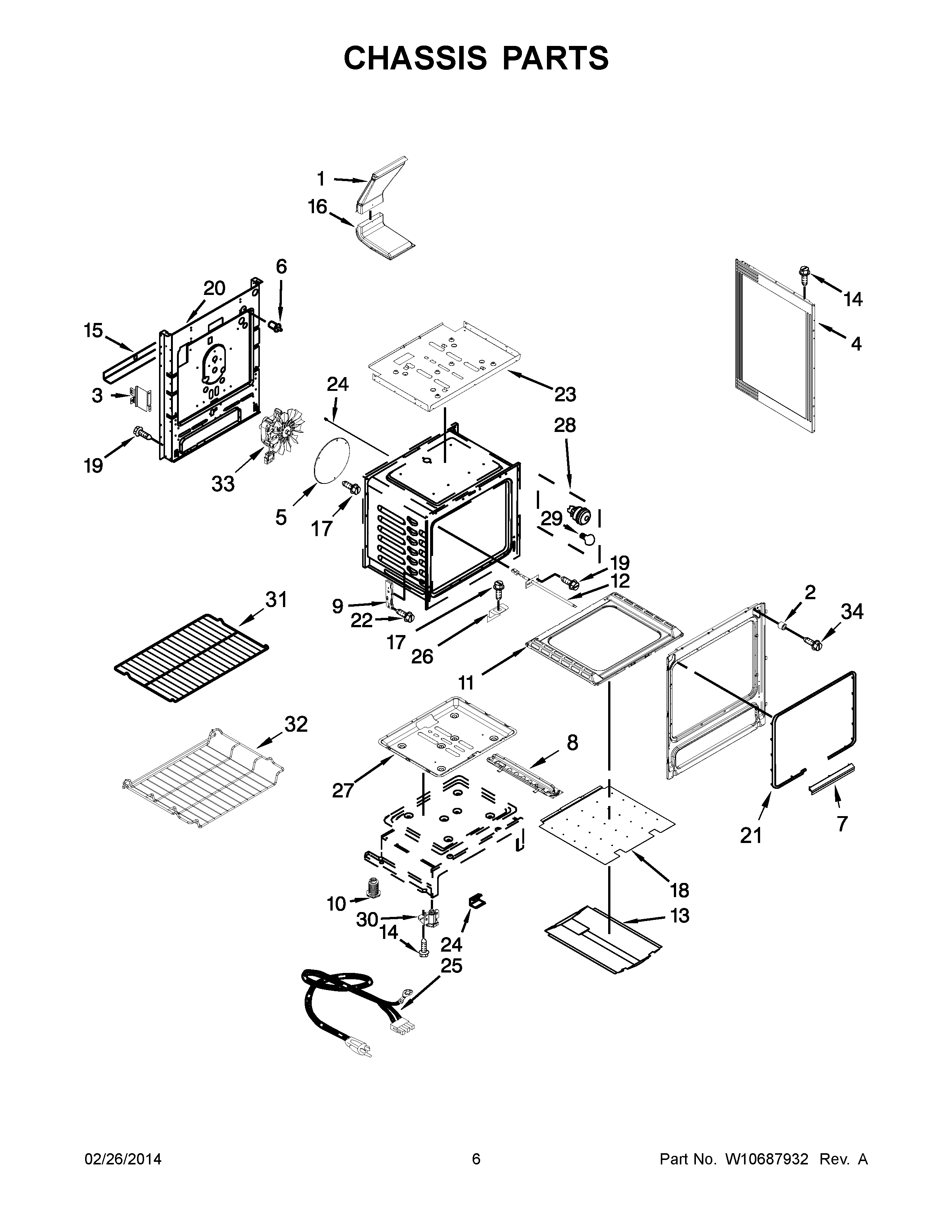

MGR8800DH0 04 – CHASSIS PARTS

Products

Position	Product
NI	STRAP, INSULATION
NI	MAY W10526209
NI	INSULATION, WRAP GAS
1	MAY W10314347
2	SPACER, DOOR
3	BRACKET, SUPPORT
4	MAY W10322770
4	MAY W10322769
5	MAY W10346154
6	SWITCH, DOOR
7	MAY W10501599
8	ASSEMBLY, BASE RAIL (LEFT)
8	ASSEMBLY, BASE RAIL (RIGHT)
9	RECEIVER, HINGE
10	FOOT, LEVELING
11	MAY W10211368
12	SENSOR, OVEN
13	MAY 3601P356-45
15	BRACE, MAIN BACK
16	ASSEMBLY, UPPER FLUE
17	MAY W10362924
18	MAY W10323077
19	SCREW
20	MAY W10273005
21	MAY W10162385
22	MAY W10031780
23	MAY W10273195
24	ROD, REAR DOOR
25	Cord, Power
26	MAY W10035900
27	MAY W10273204
28	ASSEMBLY, LIGHT
29	BULB, OVEN LIGHT
30	ASSEMBLY, FRONT FOOT
31	MAY W10531060
32	ACCESSORIES, RACK, OVEN (GULL-WING)
33	MOTOR, FAN (CONVECTION)
34	SCREW
