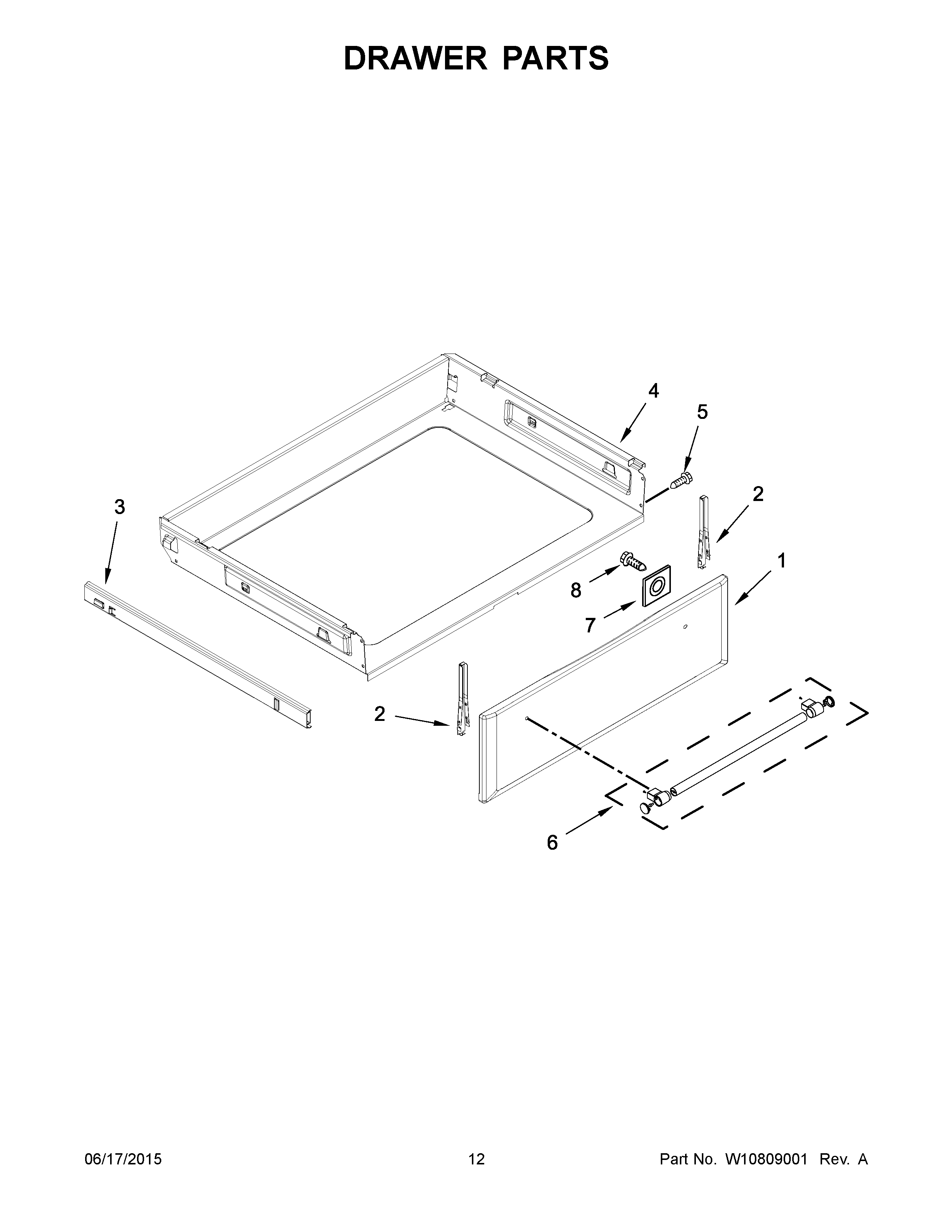

MGR8800DH1 07 – DRAWER PARTS
Products
| Position | Product |
|---|---|
| 1 | MAY W10667937 |
| 1A | MAY W10667936 |
| 1B | MAY W10432481 |
| 2 | BRACKET, MOUNTING |
| 3A | MAY W10441805 |
| 3 | MAY W10441804 |
| 4 | DRAWER, STORAGE |
| 5 | SCREW |
| 6 | MAY W10665831 |
| 7 | MAY 3823F017-45 |
| 8 | SCREW |
