MGR8800DS0 02 – COOKTOP PARTS

MGR8800DS0 02 – COOKTOP PARTS

Written by

in

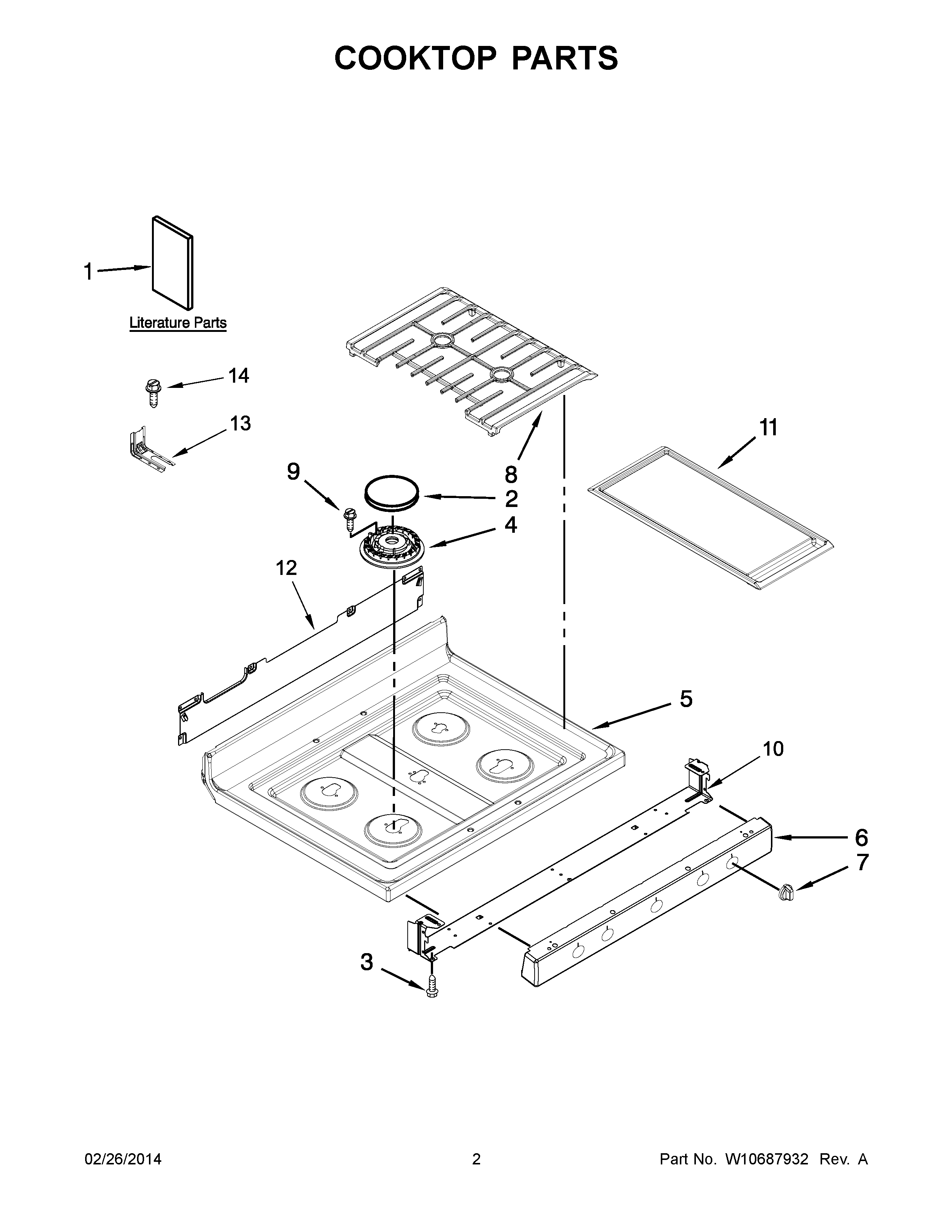

MGR8800DS0 02 – COOKTOP PARTS

Products

PositionProduct
1MAY W10553363
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10667179
1MAY W10538798
1MAY W10400066
1MAY W10538797
2CAP, BURNER (SET)
3SCREW
4ASSEMBLY, BURNER (6K) (RIGHT REAR)
4ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
5MAY W10366729
5MAY W10366730
6MAY W10655891
6MAY W10655890
6MAY W10655889
7MAY W10650400
8MAY W10655132
9SCREW
10BRACKET, MAINFOLD (FRONT)
11MAY W10347385
12BRACKET, MANIFOLD (REAR)
13BRACKET, ANTI-TIP
14SCREW, ANTI-TIP KIT
