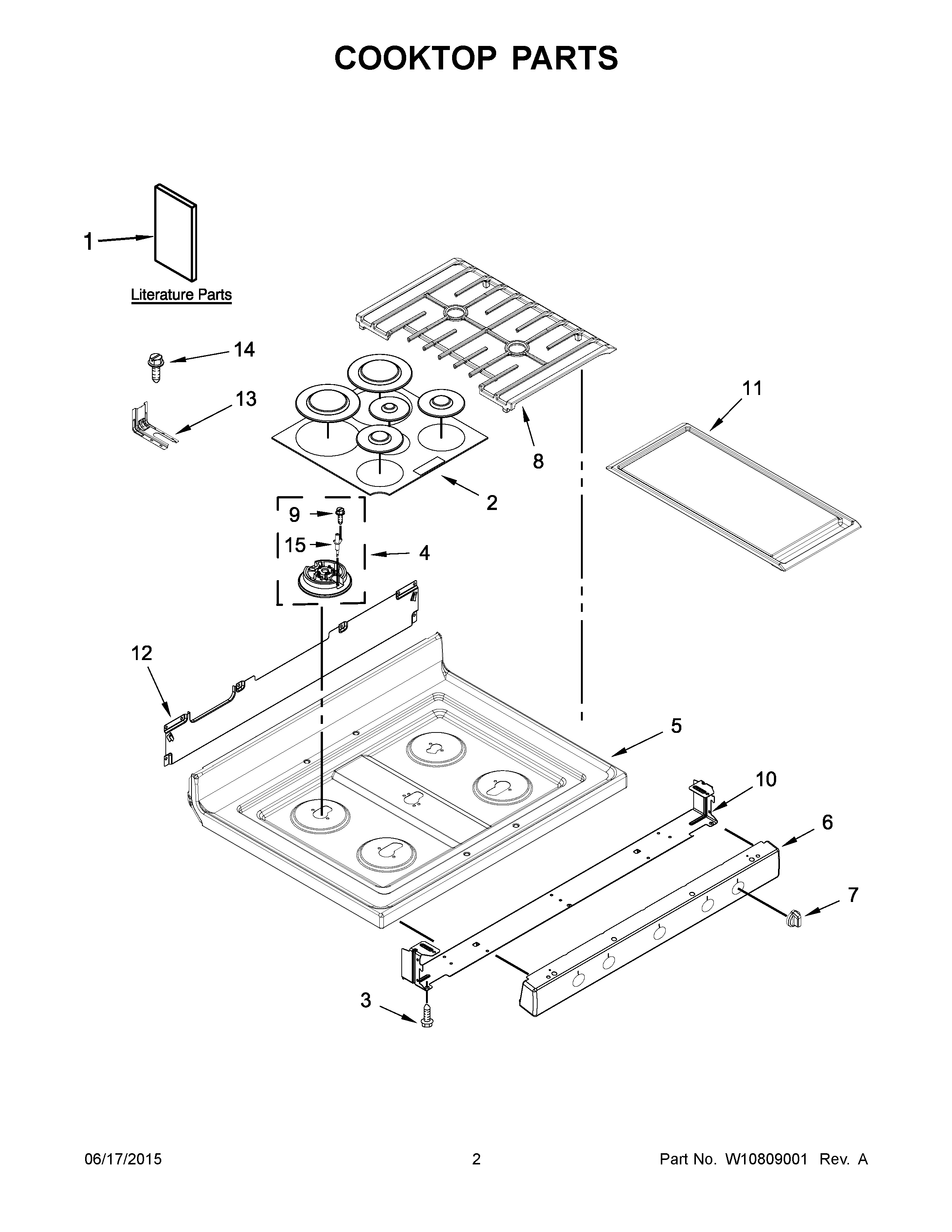

MGR8800DS1 02 – COOKTOP PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, MAIN
NI	HARNESS, BAKE/BROIL
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, HARNESS
NI	WIRING HARNESS PARTS, HARNESS, COOKTOP
NI	MAY W10519920
1D	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10553363
1F	MAY W10400066
1B	MAY W10538797
1C	MAY W10538798
1E	TIPS, SAFE COOKING (FRENCH)
1A	MAY W10667179
2	CAP, BURNER (SET)
3	SCREW
4B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
4	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
5A	MAY W10366729
5	MAY W10366730
6B	MAY W10655891
6	MAY W10655890
6A	MAY W10655889
7	MAY W10650400
8	MAY W10655132
9	MAY 8273062
10	BRACKET, MAINFOLD (FRONT)
11	MAY W10347385
12	BRACKET, MANIFOLD (REAR)
13	BRACKET, ANTI-TIP
14	SCREW, ANTI-TIP KIT
15	ELECTRODE (RIGHT REAR)
