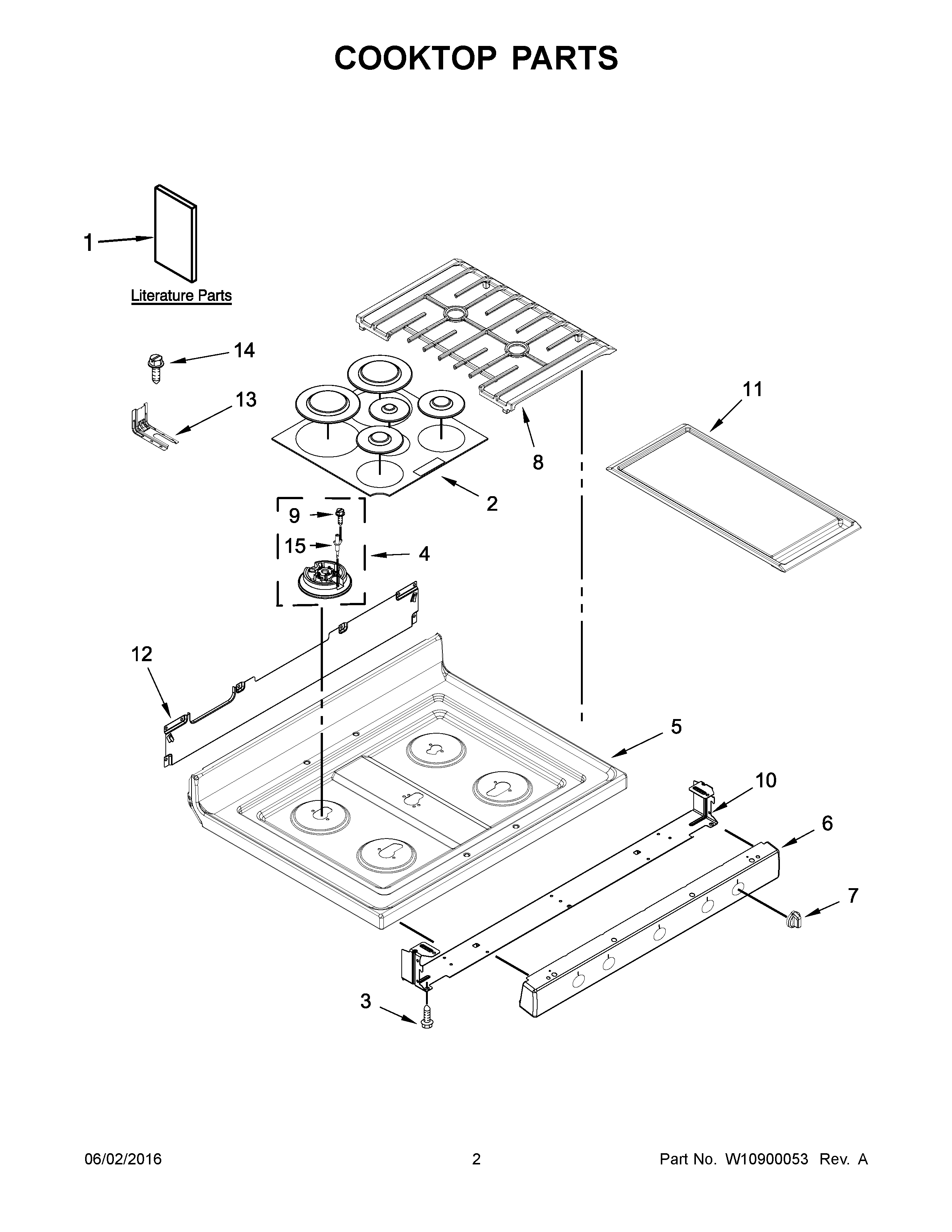

MGR8800DS3 02 – COOKTOP PARTS

Products

Position	Product
NI	WIRING HARNESS PARTS, MAIN
NI	WIRING HARNESS PARTS, HARNESS, COOKTOP
NI	MAY W10519920
NI	HARNESS, BAKE/BROIL
NI	CLIP, GAS WIRING
NI	CLIP, HARNESS
NI	CLIP, HARNESS
1F	MAY W10400066
1	MAY W10694025
1A	MAY W10667179
1D	TIPS, SAFE COOKING (ENGLISH)
1C	MAY W10538798
1B	MAY W10538797
1E	TIPS, SAFE COOKING (FRENCH)
2	CAP, BURNER (SET)
3	SCREW
4	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
5	MAY W10366730
6	MAY W10655891
7	MAY W10650400
8	MAY W10655132
9	MAY 8273062
10	BRACKET, MAINFOLD (FRONT)
11	MAY W10347385
12	BRACKET, MANIFOLD (REAR)
13	BRACKET, ANTI-TIP
14	SCREW, ANTI-TIP KIT
15	ELECTRODE (RIGHT REAR)
