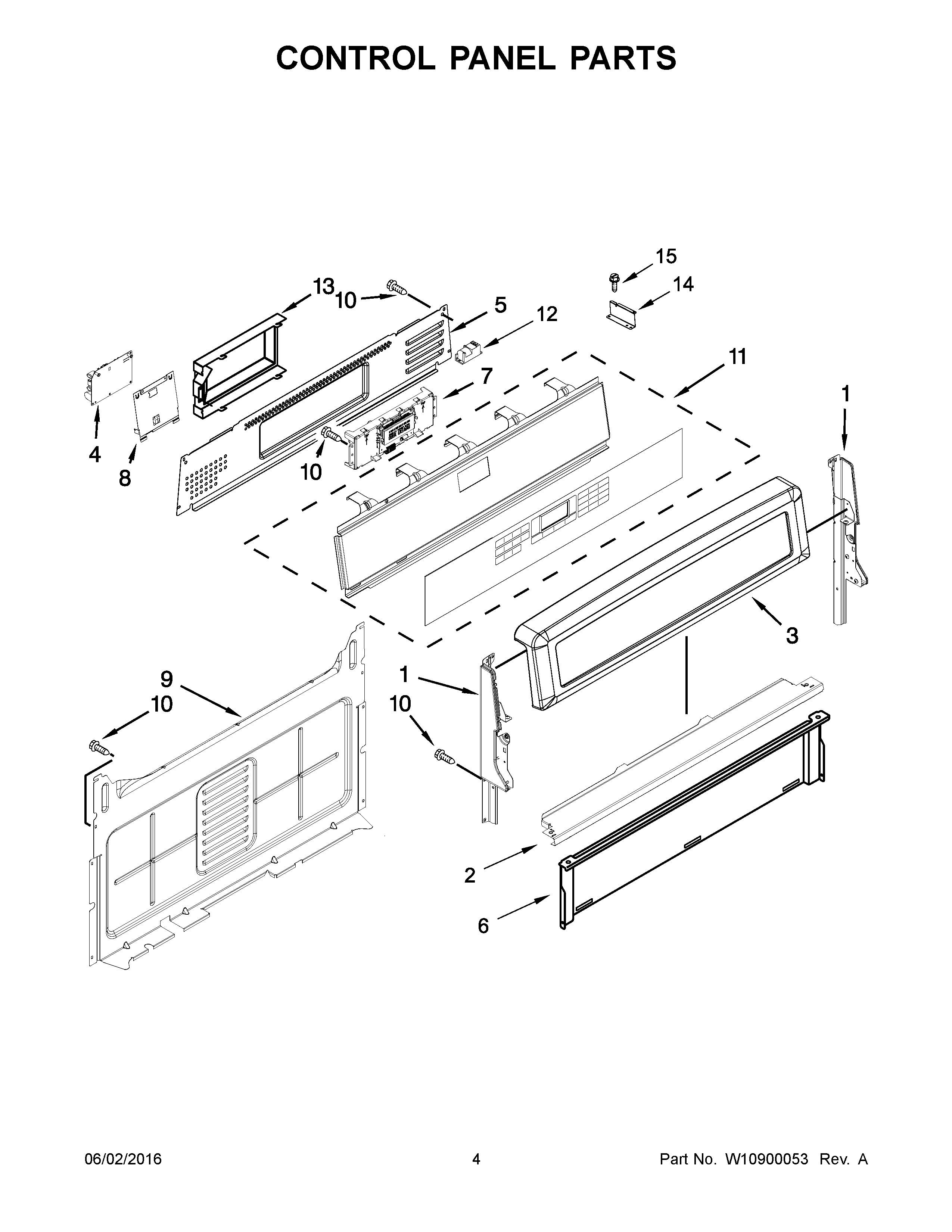

MGR8800DS3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1AENDCAP (BLACK (RIGHT))
2BRACKET, CONSOLE MOUNTING
3CONSOLE (STAINLESS)
4MAY W10511278
5COVER, UPPER
6SHIELD, HEAT
7MAY W10340325
8BRACKET, GAS
9Cover, Back
10SCREW
11MAY W10655875
12MAY W10475149
13Cover
14BRACKET, IGNITOR
15SCREW
