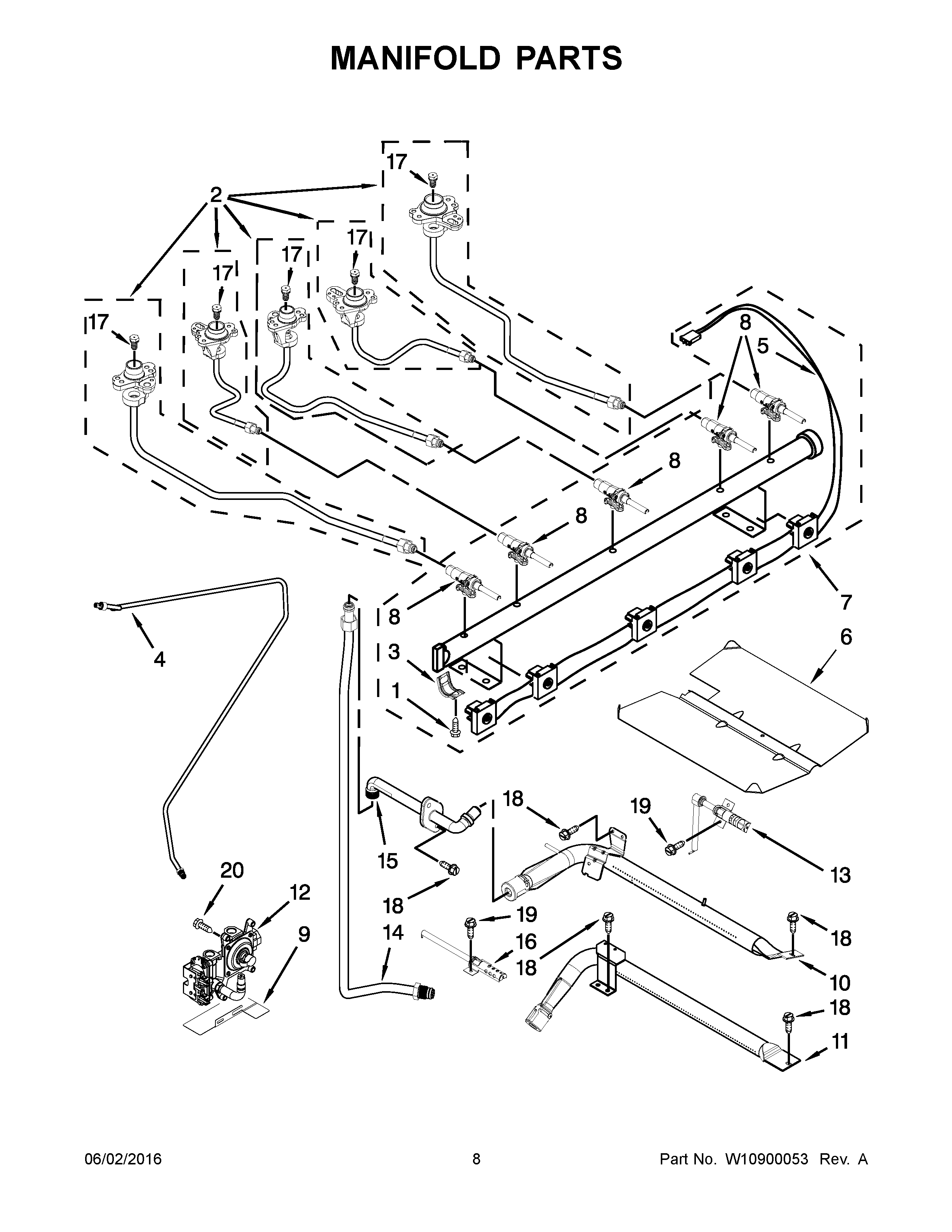

MGR8800DS3 05 – MANIFOLD PARTSadmin2025-04-26T11:34:35+00:00MGR8800DS3 05 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | KIT, LP 5 ORIFICE CONVERSION |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10566535 |
| 1 | SCREW, VALVE |
| 2D | MAY W10732141 |
| 2 | MAY W10473934 |
| 2B | ASSEMBLY, ORIFICE HOLDER (15K) |
| 2A | ASSEMBLY, ORIFICE HOLDER (9.5K) |
| 2C | ASSEMBLY, ORIFICE HOLDER (5K) |
| 3 | BRACKET, SADDLE VALVE |
| 4 | MAY W10510125 |
| 5 | HARNESS, IGNITER (INCLUDES SWITCHES) |
| 6 | MAY 3601P336-45 |
| 7 | MAY W10811695 |
| 8A | VALVE, GAS (LEFT REAR) |
| 8 | VALVE GAS (18K) (LEFT FRONT & RIGHT FRONT) |
| 8B | VALVE, GAS (RIGHT REAR) |
| 9 | BRACKET, AEGIS |
| 10 | MAY W10439242 |
| 11 | MAY W10680035 |
| 12 | MAY W10720102 |
| 13 | ELECTRODE, BAKE |
| 14 | MAY W10306050 |
| 15 | MAY W10776437 |
| 16 | ELECTRODE, BROIL |
| 17C | MAY W10732136 |
| 17B | ORIFICE, BURNER (12K) (RIGHT FRONT) |
| 17D | ORIFICE, BURNER (CENTER) |
| 17A | ORIFICE, NATURAL (9.5K) (LEFT REAR) |
| 17 | ORIFICE, BURNER (LEFT FRONT) |
| 18 | SCREW |
| 19 | SCREW |
| 20 | SCREW |
