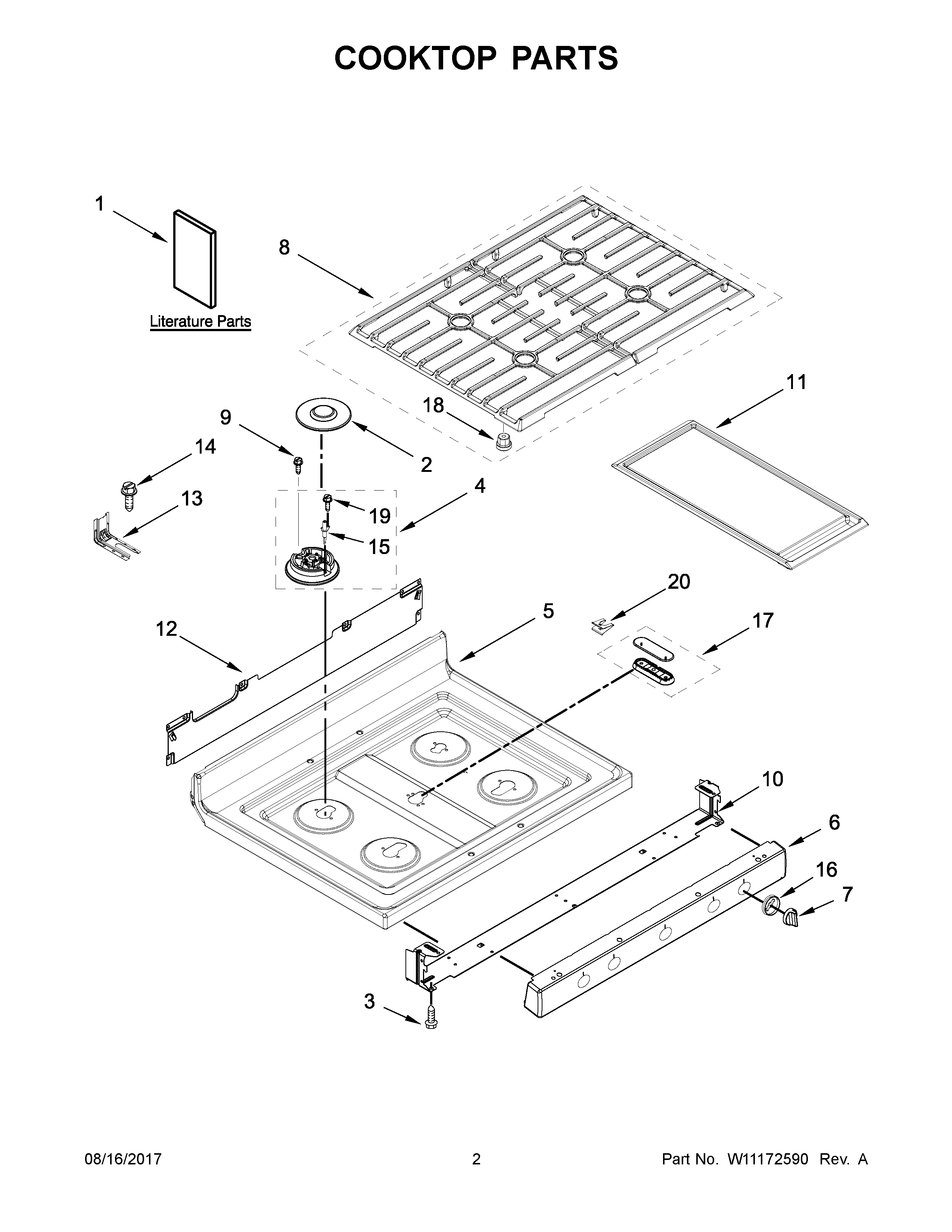

MGR8800FB0 02 – COOKTOP PARTSadmin2025-04-26T11:33:56+00:00MGR8800FB0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | CLIP, GAS WIRING |
| NI | HARNESS, COOKTOP |
| NI | HARNESS, BAKE/BROIL |
| NI | HARNESS, MAIN |
| NI | MAY 7111P017-60 |
| NI | CLIP, HARNESS |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1B | MAY W10538797 |
| 1A | MAY W10667179 |
| 1 | MAY W10694025 |
| 1F | MAY W10400066 |
| 1E | TIPS, SAFE COOKING (FRENCH) |
| 1D | TIPS, SAFE COOKING (ENGLISH) |
| 1C | MAY W10538798 |
| 2 | KIT, BURNER CAP (BLACK (SET OF 4)) |
| 3 | SCREW |
| 4B | ASSEMBLY, BURNER (6K) (RIGHT REAR) |
| 4A | ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) |
| 4 | ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT) |
| 5 | COOKTOP (BLACK) |
| 5A | COOKTOP (WHITE) |
| 6 | PANEL, MANIFOLD (BLACK) |
| 6A | PANEL, MANIFOLD (WHITE) |
| 7 | KNOB, CONTROL (BLACK) |
| 7A | KNOB, CONTROL (WHITE) |
| 8 | MAY W10655132 |
| 9 | SCREW |
| 10 | BRACKET, MAINFOLD (FRONT) |
| 11 | MAY W10347385 |
| 12 | BRACKET, MANIFOLD (REAR) |
| 13 | BRACKET, ANTI-TIP |
| 14 | SCREW, ANTI-TIP KIT |
| 15A | ELECTRODE (RIGHT FRONT & CENTER) |
| 15 | ELECTRODE (RIGHT REAR) |
| 16A | BEZEL (WHITE) |
| 16 | BEZEL (BLACK) |
| 17 | SPREADER, FLAME |
| 18 | MAY 8003P033-60 |
| 19 | MAY 8273062 |
| 20 | CLIP, SPRING ELECTRODE |
