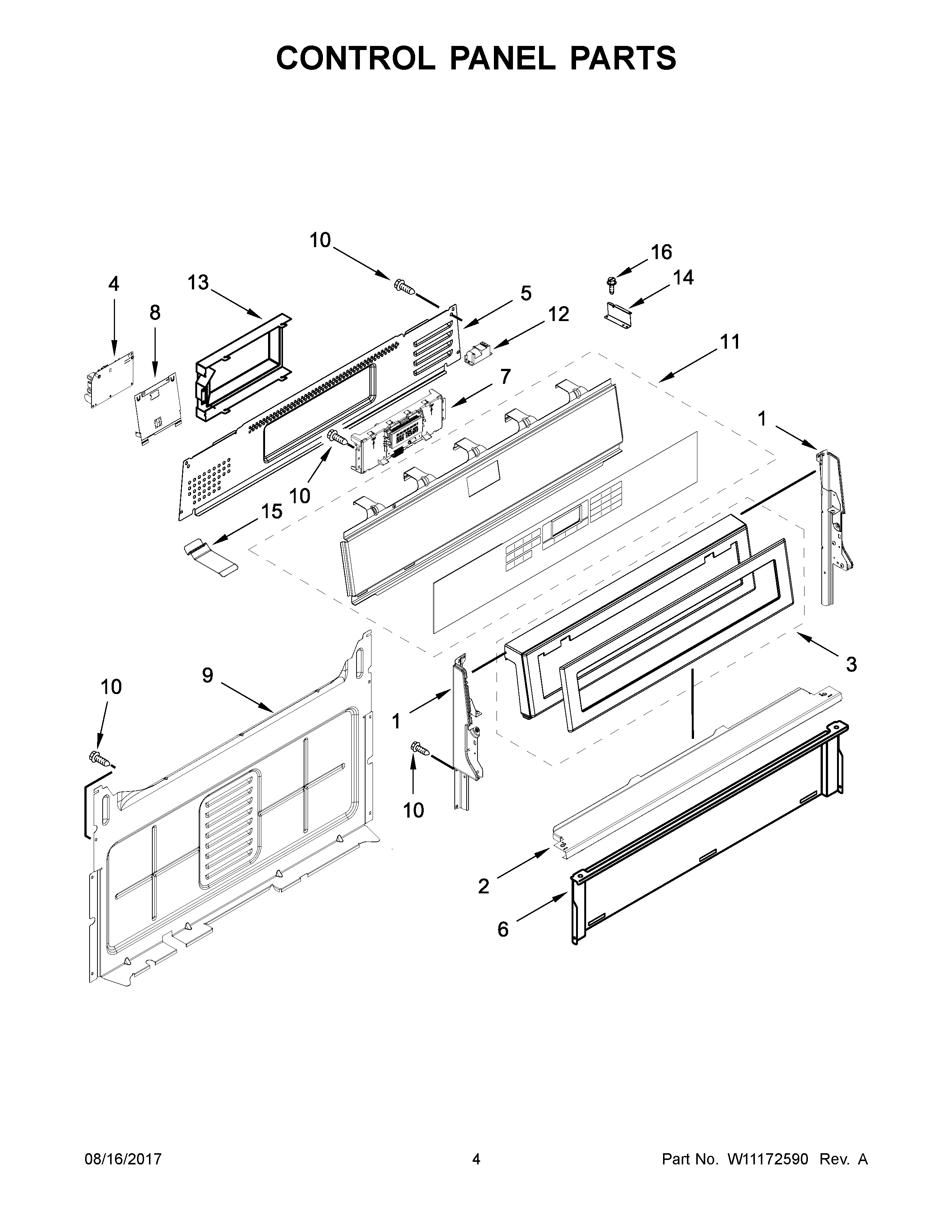

MGR8800FB0 03 – CONTROL PANEL PARTSadmin2025-04-26T11:35:32+00:00MGR8800FB0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1B | ENDCAP (WHITE (LEFT)) |
| 1A | ENDCAP (BLACK (RIGHT)) |
| 1C | ENDCAP (WHITE (RIGHT)) |
| 2 | BRACKET, CONSOLE MOUNTING |
| 3 | CONSOLE (BLACK) |
| 3A | CONSOLE (WHITE) |
| 4 | MODULE, SPARK DSI |
| 5 | COVER, UPPER |
| 6 | SHIELD, HEAT |
| 7 | MAY W10340325 |
| 8 | BRACKET, MOUNTING |
| 9 | Cover, Back |
| 10 | SCREW |
| 11A | ASSEMBLY, ACTIVE OVERLAY (WHITE) |
| 11 | ASSEMBLY, ACTIVE OVERLAY (BLACK) |
| 12 | MAY W10475149 |
| 13 | Cover |
| 14 | BRACKET, IGNITOR |
| 15 | SPREADER, CLIP-SPRING |
| 16 | SCREW |
