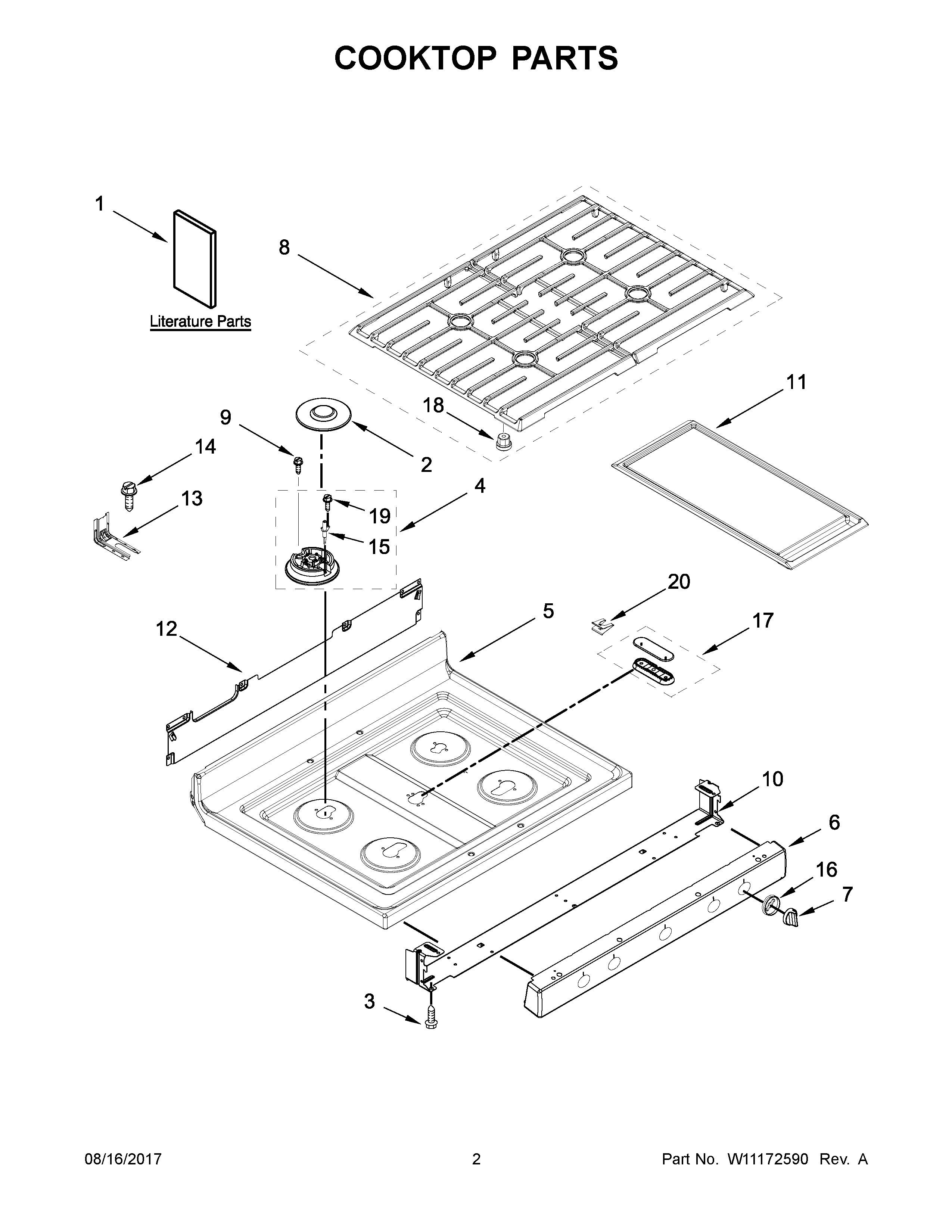

MGR8800FW0 02 – COOKTOP PARTS

Products

Position	Product
NI	CLIP, GAS WIRING
NI	HARNESS, COOKTOP
NI	HARNESS, BAKE/BROIL
NI	HARNESS, MAIN
NI	MAY 7111P017-60
NI	CLIP, HARNESS
NI	LINER (NOT A SERVICEABLE PART)
1B	MAY W10538797
1A	MAY W10667179
1	MAY W10694025
1F	MAY W10400066
1E	TIPS, SAFE COOKING (FRENCH)
1D	TIPS, SAFE COOKING (ENGLISH)
1C	MAY W10538798
2	KIT, BURNER CAP (BLACK (SET OF 4))
3	SCREW
4B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
4A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
5	COOKTOP (BLACK)
5A	COOKTOP (WHITE)
6	PANEL, MANIFOLD (BLACK)
6A	PANEL, MANIFOLD (WHITE)
7	KNOB, CONTROL (BLACK)
7A	KNOB, CONTROL (WHITE)
8	MAY W10655132
9	SCREW
10	BRACKET, MAINFOLD (FRONT)
11	MAY W10347385
12	BRACKET, MANIFOLD (REAR)
13	BRACKET, ANTI-TIP
14	SCREW, ANTI-TIP KIT
15A	ELECTRODE (RIGHT FRONT & CENTER)
15	ELECTRODE (RIGHT REAR)
16A	BEZEL (WHITE)
16	BEZEL (BLACK)
17	SPREADER, FLAME
18	MAY 8003P033-60
19	MAY 8273062
20	CLIP, SPRING ELECTRODE
