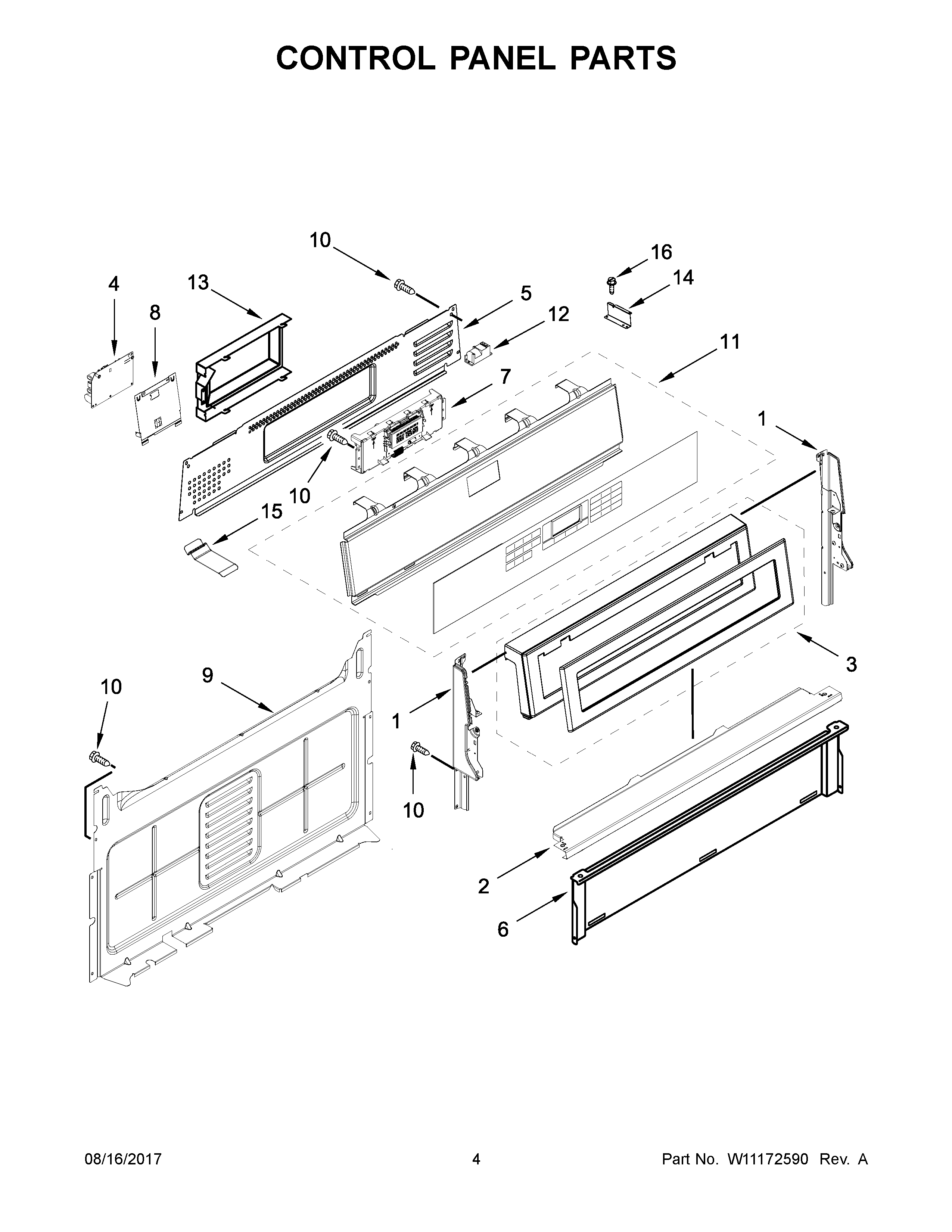

MGR8800FW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1B	ENDCAP (WHITE (LEFT))
1A	ENDCAP (BLACK (RIGHT))
1C	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	CONSOLE (BLACK)
3A	CONSOLE (WHITE)
4	MODULE, SPARK DSI
5	COVER, UPPER
6	SHIELD, HEAT
7	MAY W10340325
8	BRACKET, MOUNTING
9	Cover, Back
10	SCREW
11A	ASSEMBLY, ACTIVE OVERLAY (WHITE)
11	ASSEMBLY, ACTIVE OVERLAY (BLACK)
12	MAY W10475149
13	Cover
14	BRACKET, IGNITOR
15	SPREADER, CLIP-SPRING
16	SCREW
