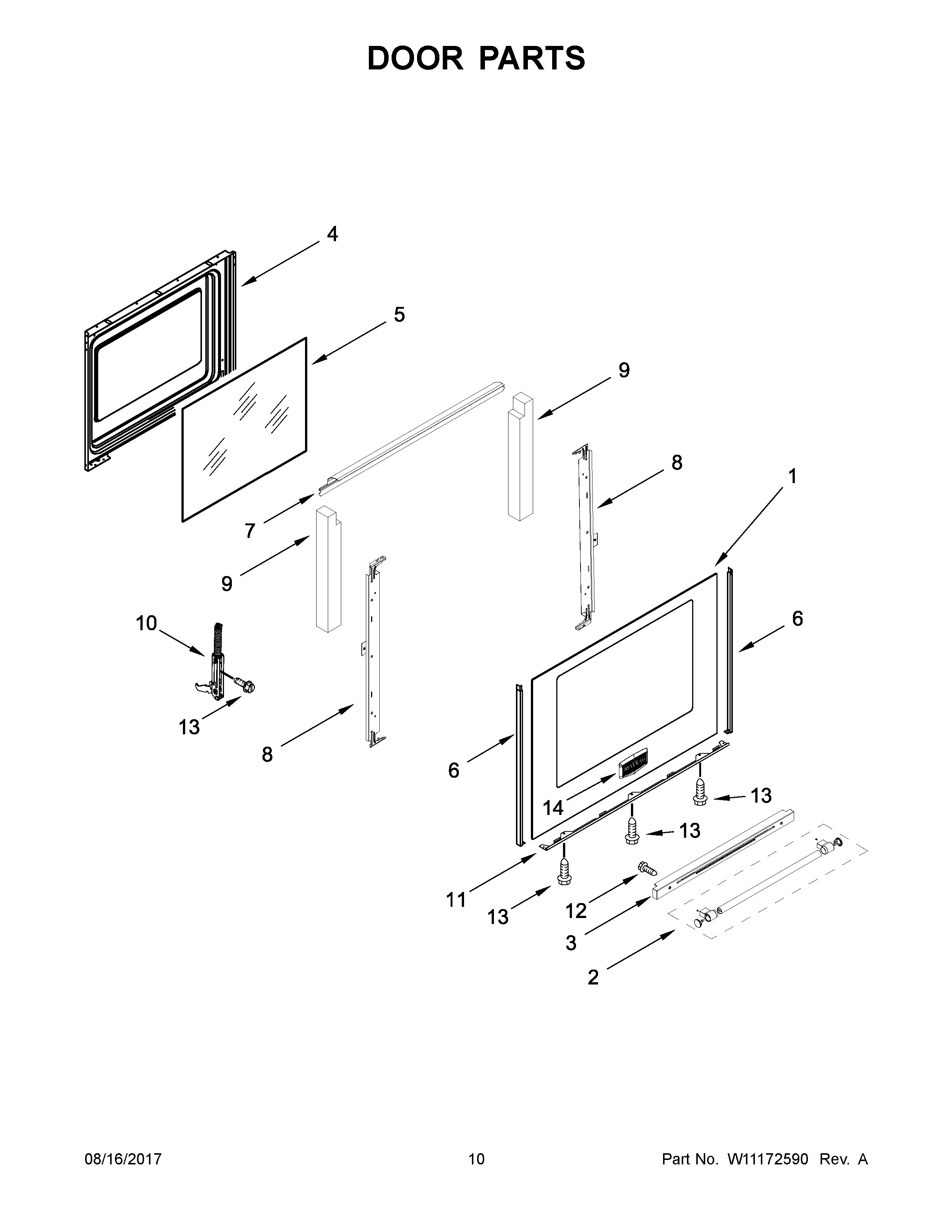

MGR8800FW0 06 – DOOR PARTS

MGR8800FW0 06 – DOOR PARTS

Written by

in

MGR8800FW0 06 – DOOR PARTS

Products

PositionProduct
1GLASS, OUTER DOOR (BLACK)
1AGLASS, OUTER DOOR (WHITE)
2HANDLE, OVEN DOOR (BLACK)
2AHANDLE, OVEN DOOR (WHITE)
3TRIM, VENT (BLACK)
3ATRIM, VENT (WHITE)
4LINING, DOOR
5GLASS, INNER
6TRIM, SIDE (BLACK)
6ATRIM, SIDE (WHITE)
7MAY W10294853
8MAY W10294851
9INSULATION, DOOR
10MAY W10440013
11BRACKET, GLASS (BLACK)
11ABRACKET, GLASS (WHITE)
12SCREW
13SCREW
14BADGE
