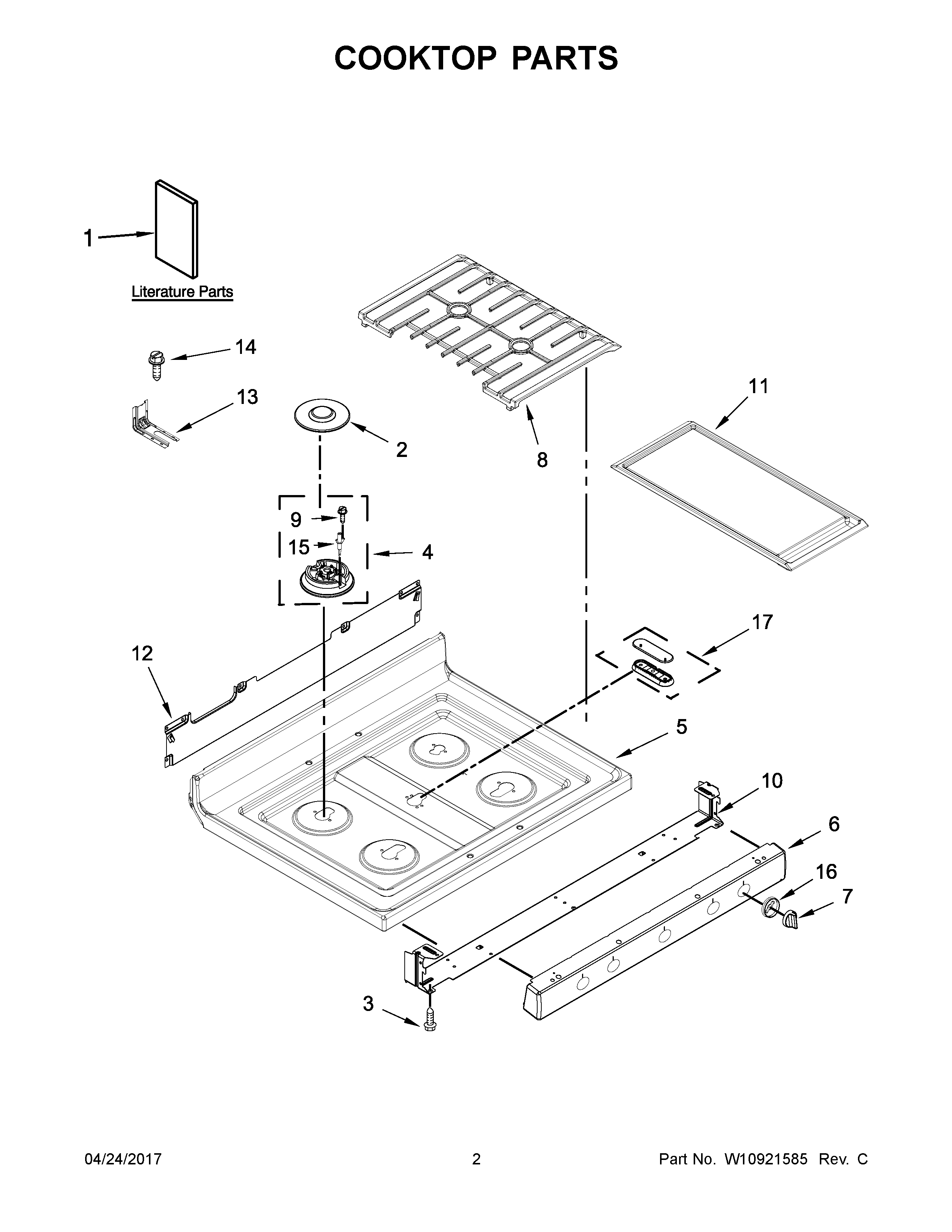

MGR8800FZ0 02 – COOKTOP PARTS

Products

PositionProduct
NICLIP, GAS WIRING
NIMAY W10519920
NIHARNESS, BAKE/BROIL
NICLIP, HARNESS
NICLIP, HARNESS
NIHARNESS, MAIN
NIHARNESS, COOKTOP
1MAY W10694025
1FMAY W10400066
1ETIPS, SAFE COOKING (FRENCH)
1AMAY W10667179
1CMAY W10538798
1BMAY W10538797
1DTIPS, SAFE COOKING (ENGLISH)
2KIT, BURNER CAP (BLACK (SET OF 4))
3SCREW
4BASSEMBLY, BURNER (6K) (RIGHT REAR)
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4AASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
5COOKTOP (BLACK)
6PANEL, MANIFOLD (STAINLESS)
7MAY W10858253
8MAY W10655132
9SCREW
10BRACKET, MAINFOLD (FRONT)
11MAY W10347385
12BRACKET, MANIFOLD (REAR)
13BRACKET, ANTI-TIP
14SCREW, ANTI-TIP KIT
15ELECTRODE (RIGHT REAR)
16BEZEL (STAINLESS)
17SPREADER, FLAME
