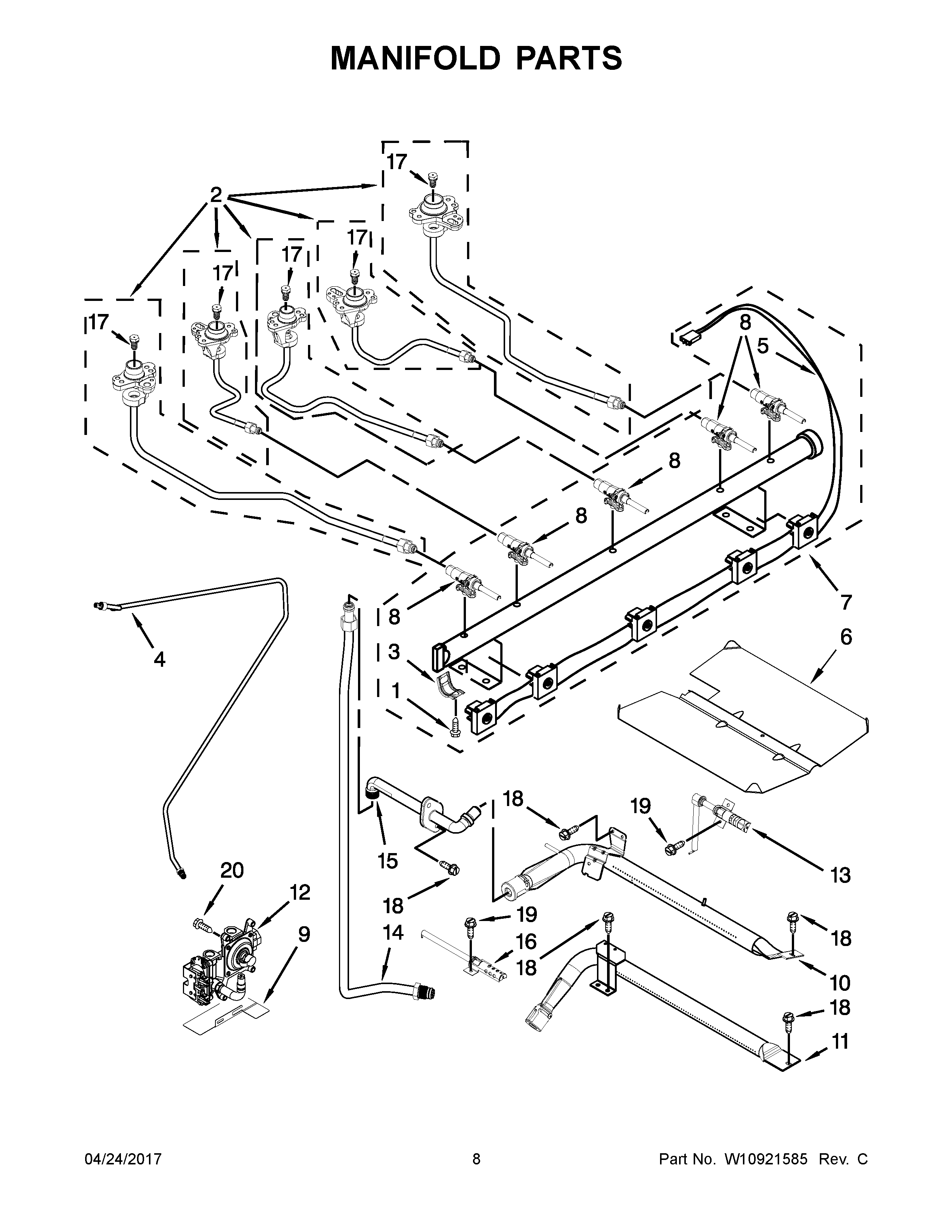

MGR8800FZ0 05 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10566535
NI	KIT, LP 5 ORIFICE CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)
2B	ASSEMBLY, ORIFICE HOLDER (15K)
2C	ASSEMBLY, ORIFICE HOLDER (5K)
2D	ASSEMBLY, ORIFICE HOLDER (8K) (CENTER)
2A	ASSEMBLY, ORIFICE HOLDER (9.5K)
3	BRACKET, SADDLE VALVE
4	MAY W10510125
5	HARNESS, IGNITER (INCLUDES SWITCHES)
6	MAY 3601P336-45
7	ASSEMBLY, MANIFOLD
8A	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (CENTER)
8B	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10680035
12	MAY W10720102
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10776437
16	ELECTRODE, BROIL
17C	MAY W10732136
17B	ORIFICE, BURNER (12K) (RIGHT FRONT)
17	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17A	MAY W10170507
17D	ORIFICE (8K) (CENTER)
18	SCREW
19	SCREW
20	SCREW
