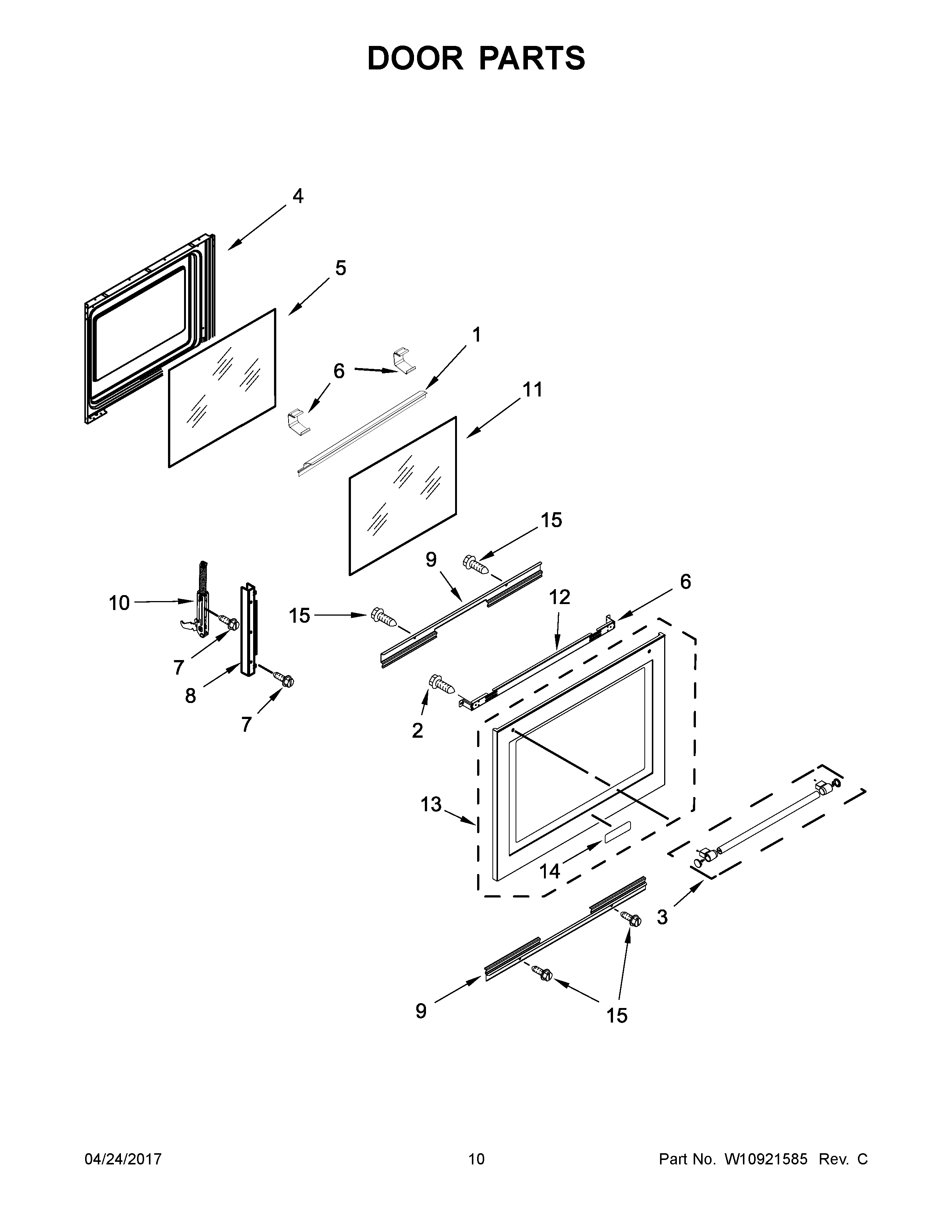

MGR8800FZ0 06 – DOOR PARTSadmin2025-04-26T13:06:31+00:00MGR8800FZ0 06 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | SCOOP, DOOR (BLACK) |
| 2 | SCREW |
| 3 | HANDLE, OVEN DOOR (STAINLESS) |
| 4 | LINER, DOOR |
| 5 | GLASS, INNER |
| 6 | CLIP, PANEL |
| 7 | SCREW |
| 8 | RAIL, VERTICAL SUPPORT |
| 9 | RAIL, HORIZONTAL SUPPORT |
| 10 | HINGE, DOOR (ACTIVE) |
| 11 | GLASS, OUTER (STAINLESS) |
| 12 | BRACKET, GLASS UPPER HANDLE |
| 13 | ASSEMBLY, DOOR SKIN (STAINLESS) |
| 14 | BADGE |
| 15 | SCREW |
