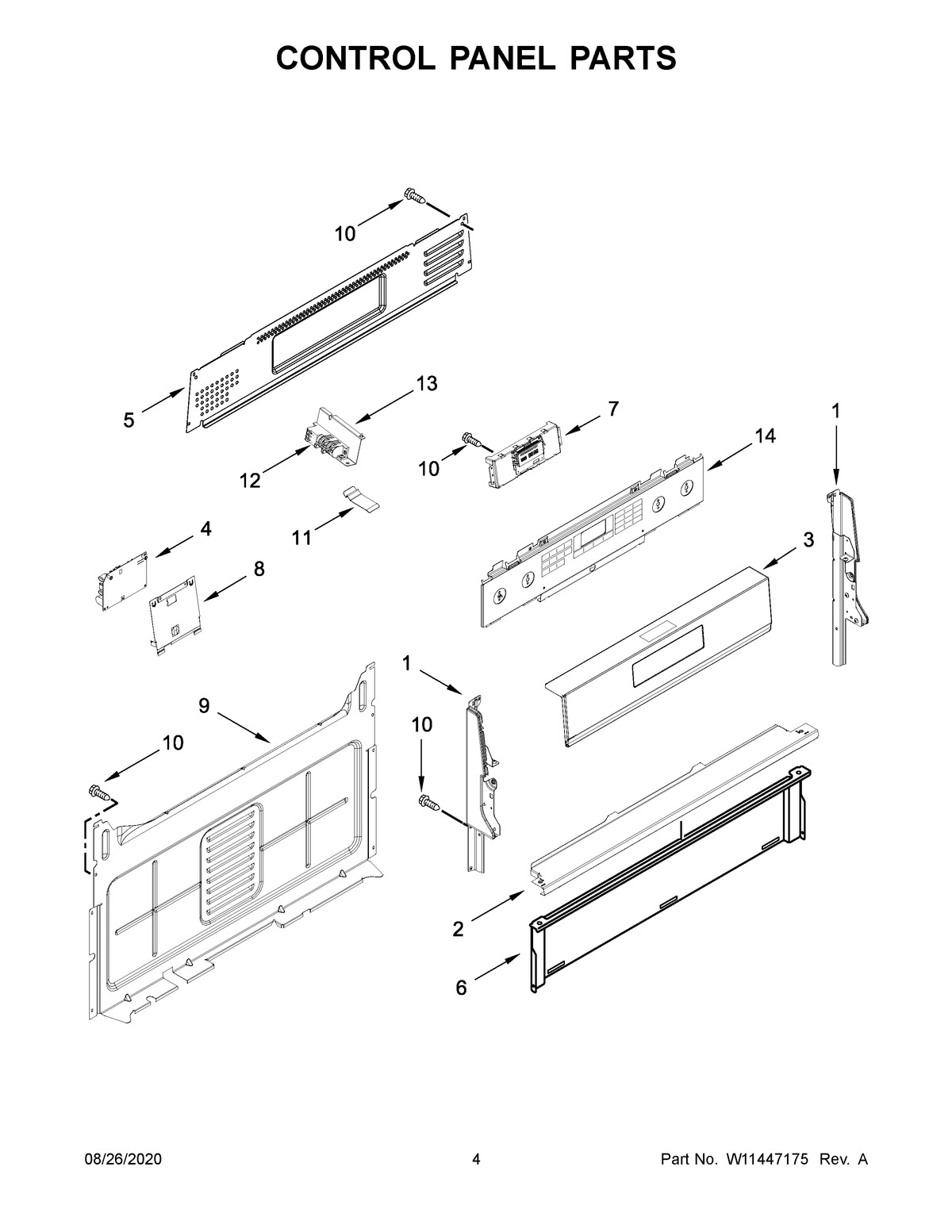

MGR8800FZ1 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1A	ENDCAP (BLACK (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	CONSOLE (STAINLESS)
4	MODULE, SPARK DSI
5	COVER, UPPER
6	SHIELD, HEAT
7	MAY W10340325
8	BRACKET, MOUNTING
9	Cover, Back
10	SCREW
11	SPREADER, CLIP-SPRING
12	MAY W10475149
13	BRACKET, IGNITOR
14	ASSEMBLY, ACTIVE OVERLAY (BLACK)
