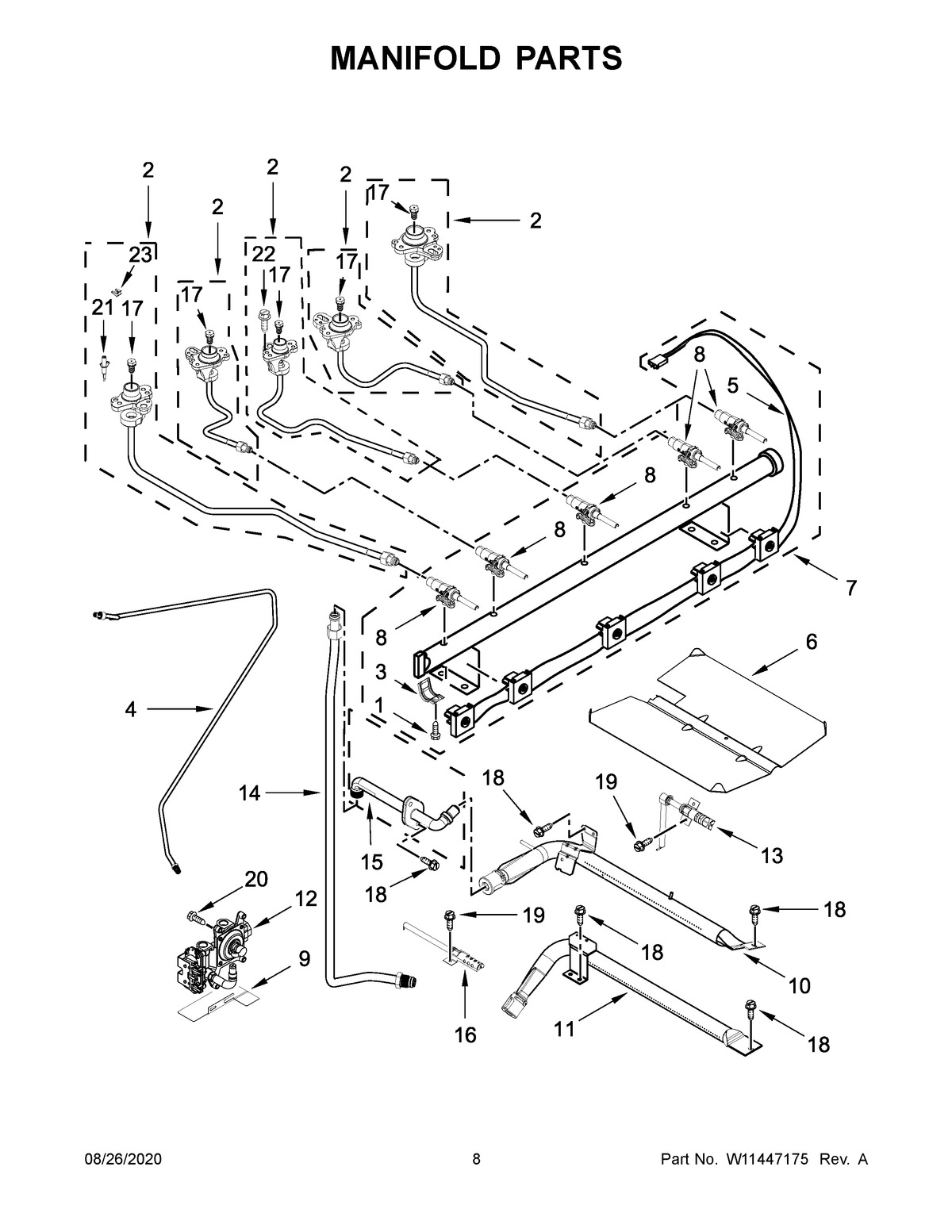

MGR8800FZ1 05 – MANIFOLD PARTS

Products

PositionProduct
NILP 5 ORIFICE CONVERSION KIT
NIMAY W10566535
NILINER (NOT A SERVICEABLE PART)
1SCREW, VALVE
2DORIFICE HOLDER ASSEMBLY (8K) (CENTER)
2CORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR)
2BORIFICE HOLDER ASSEMBLY (15K) (RIGHT FRONT)
2AORIFICE HOLDER ASSEMBLY (9.5K) LEFT REAR)
2ORIFICE HOLDER ASSEMBLY (18K) (LEFT FRONT)
3BRACKET, SADDLE VALVE
4MAY W10510125
5SWITCH, 5 BURNER MANIFOLD HARNESS
6MAY 3601P336-45
7MANIFOLD ASSEMBLY
8BVALVE, GAS (RIGHT REAR)
8VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8AVALVE, GAS (LEFT REAR, CENTER)
9BRACKET, AEGIS
10MAY W10439242
11MAY W10680035
12MAY W10720102
13ELECTRODE, BAKE
14MAY W10306050
15MAY W10776437
16ELECTRODE, BROIL
17DORIFICE (8K) (CENTER)
17AORIFICE (10K) (LEFT REAR)
17BORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17ORIFICE (18K) (LEFT FRONT)
17CORIFICE (LEFT REAR)
18SCREW
19SCREW
20SCREW
21AELECTRODE (RIGHT FRONT, RIGHT REAR, CENTER)
21ELECTRODE (LEFT FRONT, LEFT REAR)
22SCREW
23SPRING, ELECTRODE
