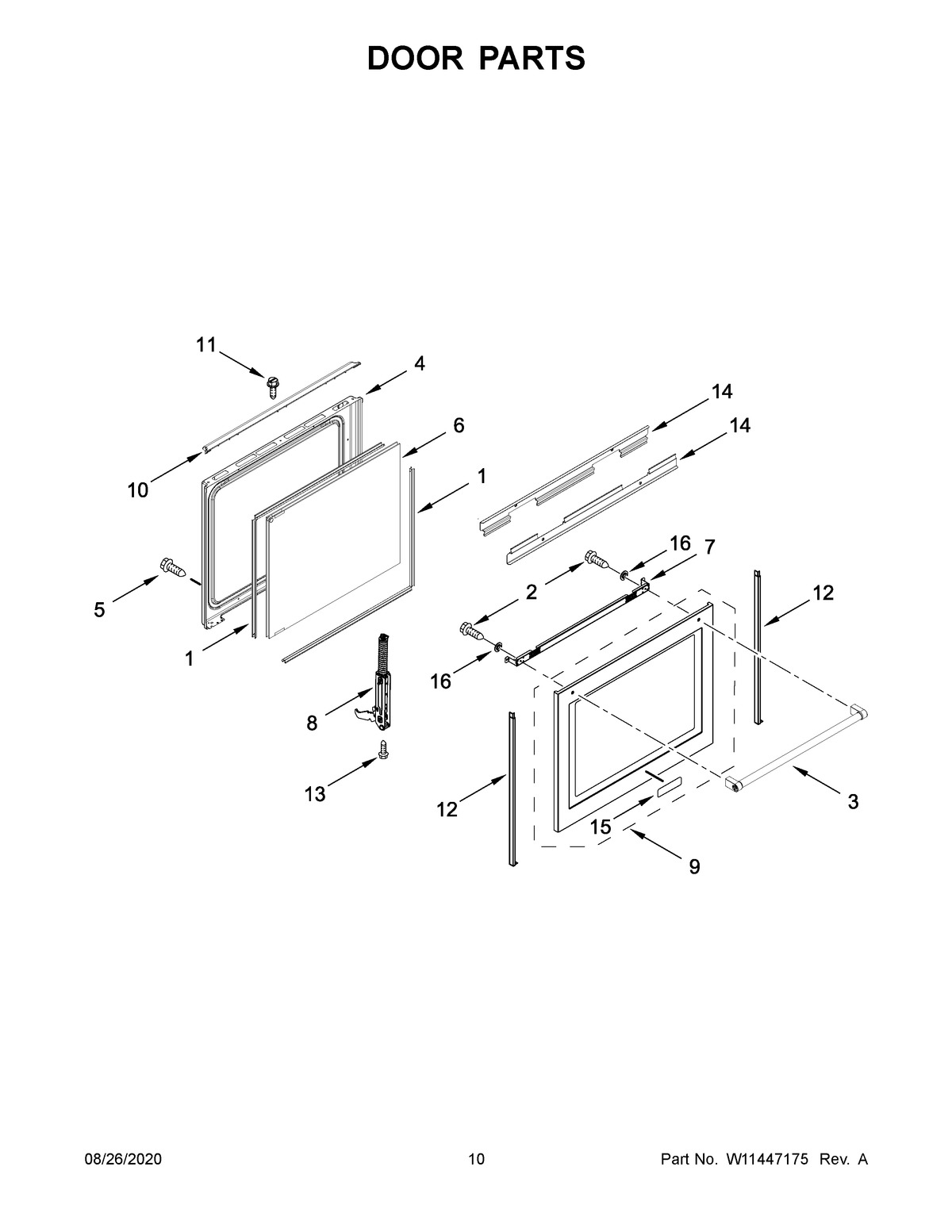

MGR8800FZ1 06 – DOOR PARTS

Written by

Products

Position	Product
1	GLASS SPACER
2	SCREW (STAINLESS MODELS)
3	HANDLE, OVEN DOOR (STAINLESS)
4	LINER, DOOR
5	SCREW
6	MAY W11223202
7	BRACKET, GLASS UPPER HANDLE
8	HINGE, DOOR (ACTIVE)
9	ASSEMBLY, DOOR SKIN (STAINLESS)
10	SCOOP, DOOR (BLACK)
11	SCREW
12	RAIL, VERTICAL SUPPORT
13	MAY W10031780
14	RAIL, HORIZONTAL SUPPORT
15	BADGE
16	WASHER, DOOR
