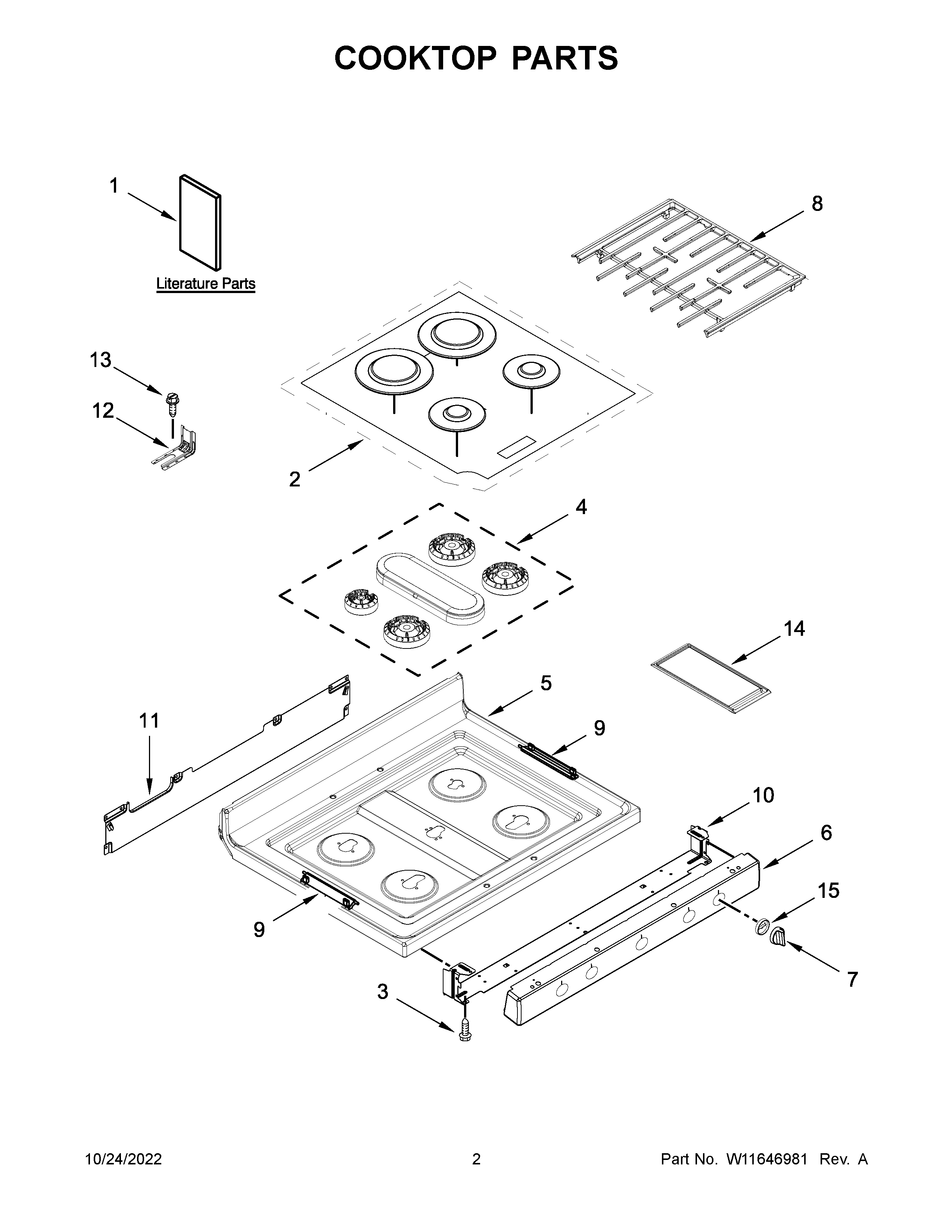

MGR8800FZ5 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W11461074 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11161843 Whirlpool Wire Harness
1B	QUICK START GUIDE
1A	TECH SHEET
1	OWNERS MANUAL
2	W11605759 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	W11662402 Whirlpool Range Burner Head
5	W11454367 Whirlpool Cooktop
6	W11028196 Whirlpool Manifold Panel
7	KNOB
8	W11381652 Whirlpool Burner Grate
10	MANIFOLD PANEL BRACKET
11	REAR GAS COOKTOP BRACKET
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	W10432544 Whirlpool Range Griddle
15	W11223011 Whirlpool Knob Bezel
