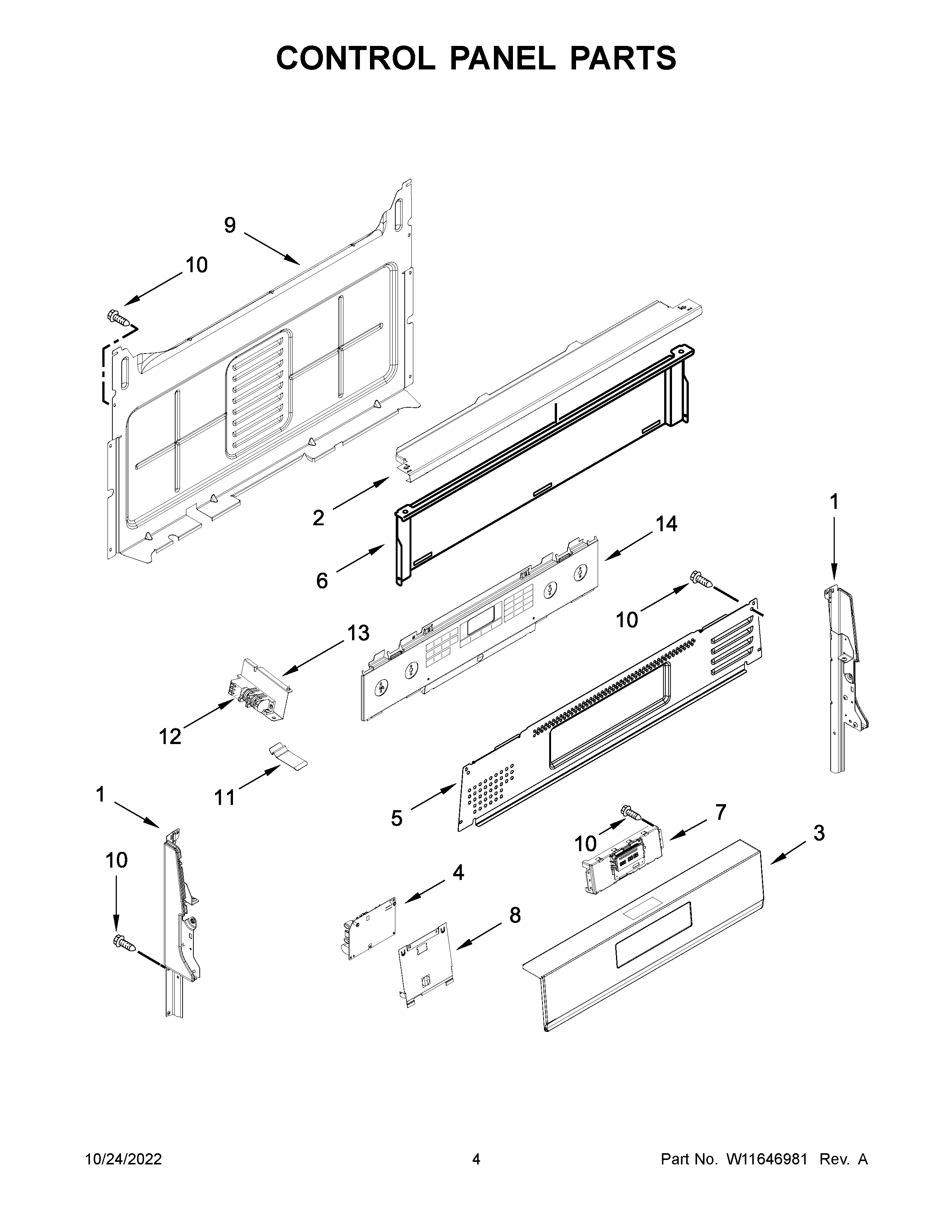

MGR8800FZ5 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W10516123 Whirlpool Mounting Bracket
3	W11164063 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11620579-includeCORE Whirlpool W11620579 Refrigerator Electronic Control Board
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	WPW10551614 Whirlpool Clip
12	WPW10475149 Whirlpool Spark Module
13	W10901176 Whirlpool Bracket Assembly
14	ASSEMBLY, ACTIVE OVERLAY (BLACK)
