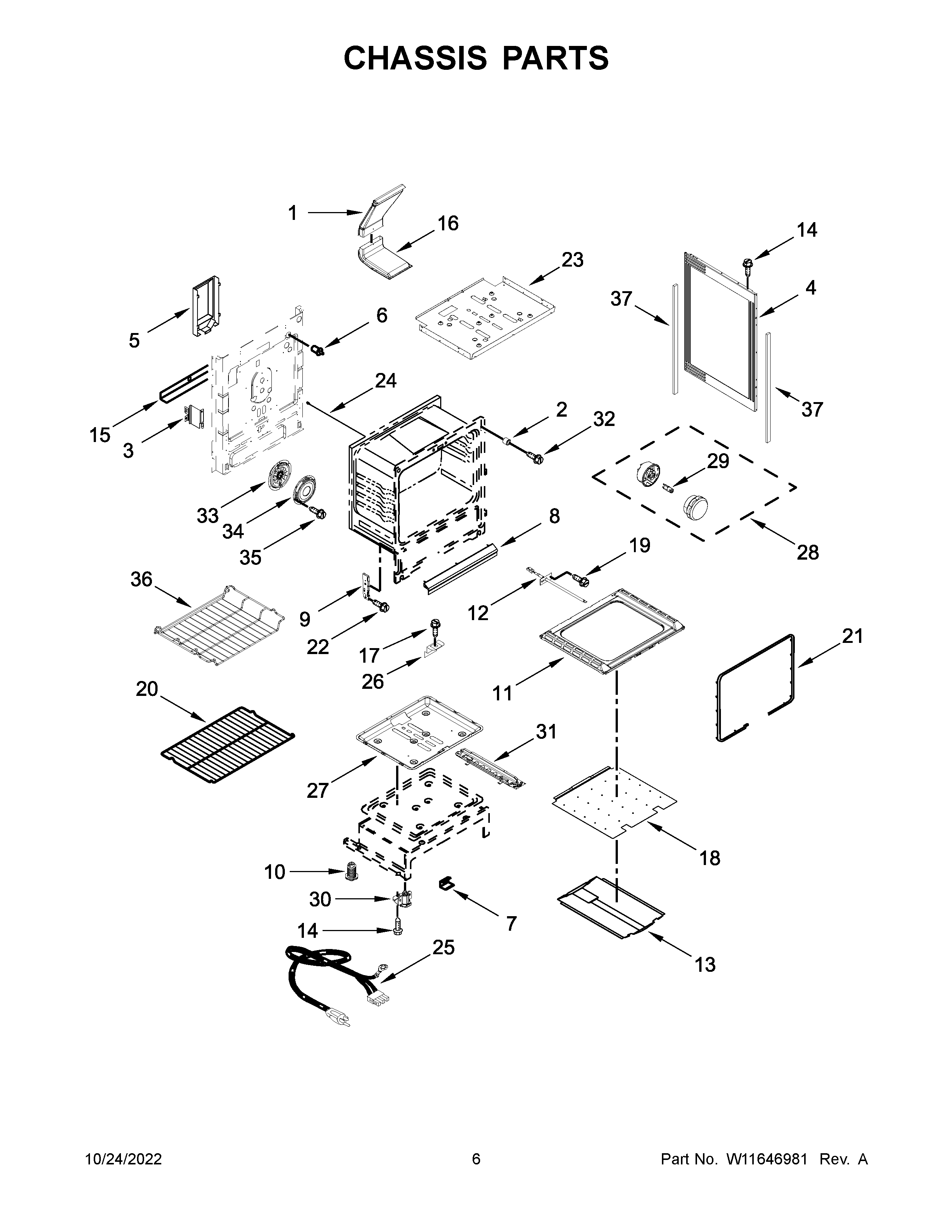

MGR8800FZ5 04 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688566 Whirlpool Insulation
NI	W11688362 Whirlpool Insulation
NI	INSULATION, STRAP
1	W10314347 Whirlpool Oven Flue Assembly
2	W10877054 Whirlpool Spacer Assembly
3	W10273002 Whirlpool Support Bracket
4	W11730303 Whirlpool Side Panel
5	W10158780 Whirlpool Rear Cover
6	SWTCH-LITE
7	W10137382 Whirlpool Clip
8	W10501599 Whirlpool Gasket
9	W10647259 Whirlpool Hinge Receiver
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WPW10211368 Whirlpool Oven Bottom
12	SENSOR-RANGE
13	BAFFLE, BAKE BURNER
15	W10435470 Whirlpool Brace
16	W11243157 Whirlpool Oven Flue
18	W10323077 Whirlpool Burner Baffle
19	SCREW
20	WPW10531060 Whirlpool Oven Rack
21	W11562931 Whirlpool Door Gasket
22	W10777162 Whirlpool Screw
23	WPW10273195 Whirlpool Heat Shield
24	W11370463 Whirlpool Door Rod Assembly
25	W11582239 Whirlpool Range Power Cord
26	W10035900 Whirlpool Support Bracket
27	W11379356 Whirlpool Hidden Pan Assembly
28	W11594170 Whirlpool Light Socket
29	BULB-LIGHT
30	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
31A	WPW10306546 Whirlpool Base Rail
32	WPW10031790 Whirlpool Screw
33	W11043837 Whirlpool Convection Fan
34	WPW10346154 Whirlpool Cover Assembly
36	WPW10289145 Whirlpool Oven Rack
37	W11175143 Whirlpool Gasket
