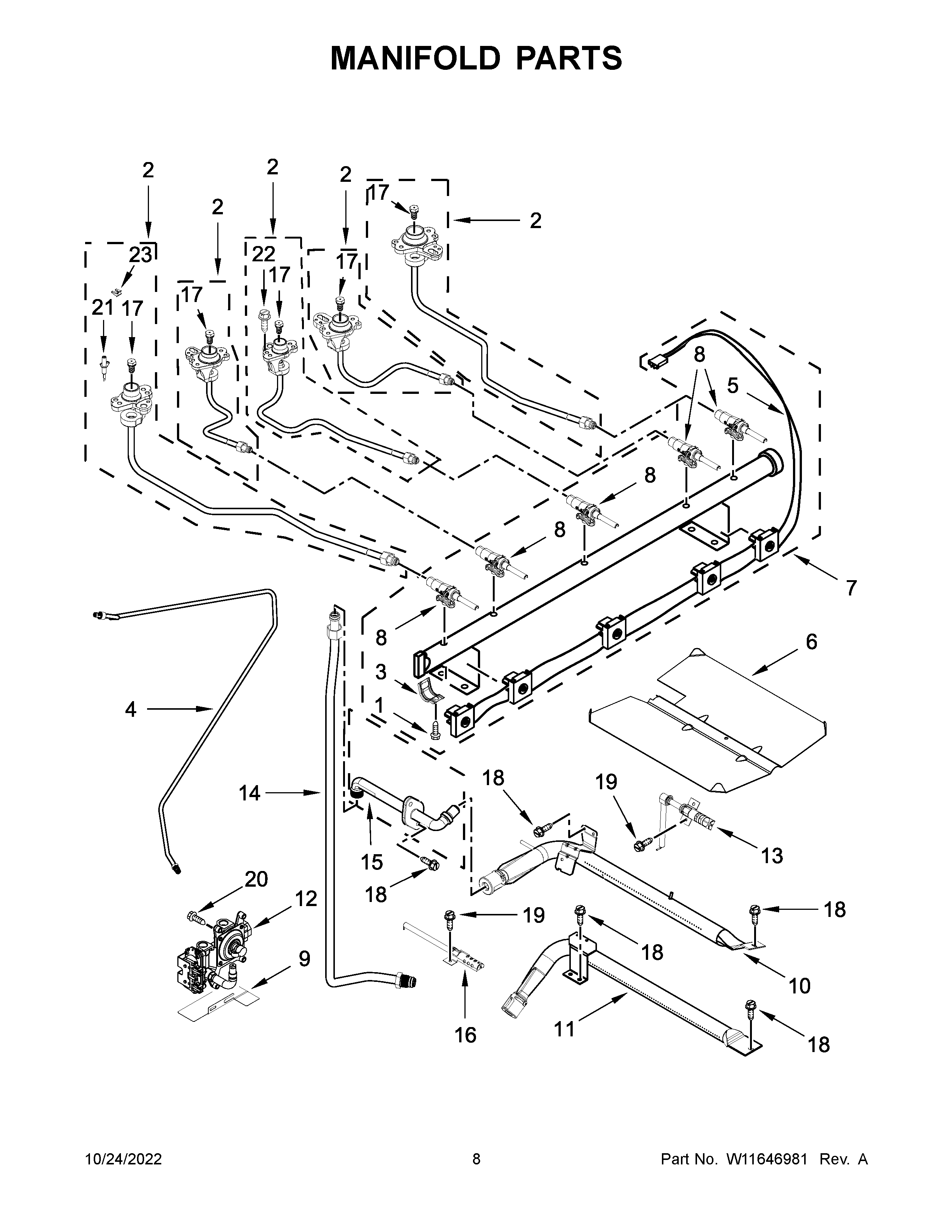

MGR8800FZ5 05 – MANIFOLD PARTS

Products

Position	Product
NI	W11087486 Whirlpool Spud Orifice
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11560165 Whirlpool Conversion Kit
1	W10295997 Whirlpool Screw
2D	W11557818 Whirlpool Range Orifice Holder
2	W11557814 Whirlpool Orifice Holder
2A	W11557815 Whirlpool Orifice Holder
2B	W11557816 Whirlpool Orifice Holder
2C	W11557817 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10510125 Whirlpool Gas Tubing
5	W10906162 Whirlpool Wire Harness
6	BAFFLE, BROIL BURNER
7	W11418925 Whirlpool Manifold
8B	W11352015 Whirlpool Range Burner Valve
8A	W11699929 Whirlpool Burner Valve
8	W11628784 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10919226 Whirlpool Regulator
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10776437 Whirlpool Fitting
16	WPW10333842 Whirlpool Oven Igniter
17B	W11700316 Whirlpool Orifice
17A	W11485873 Whirlpool Orifice
17	ORIFICE (18K) (LEFT FRONT)
17C	W11712434 Whirlpool Orifice
17D	W11485874 Whirlpool Orifice
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	W11453940 Whirlpool Surface Igniter
21A	W11453920 Whirlpool Surface Igniter
22	W11241230 Whirlpool Screw
23	W11684564 Whirlpool Clip Assembly
