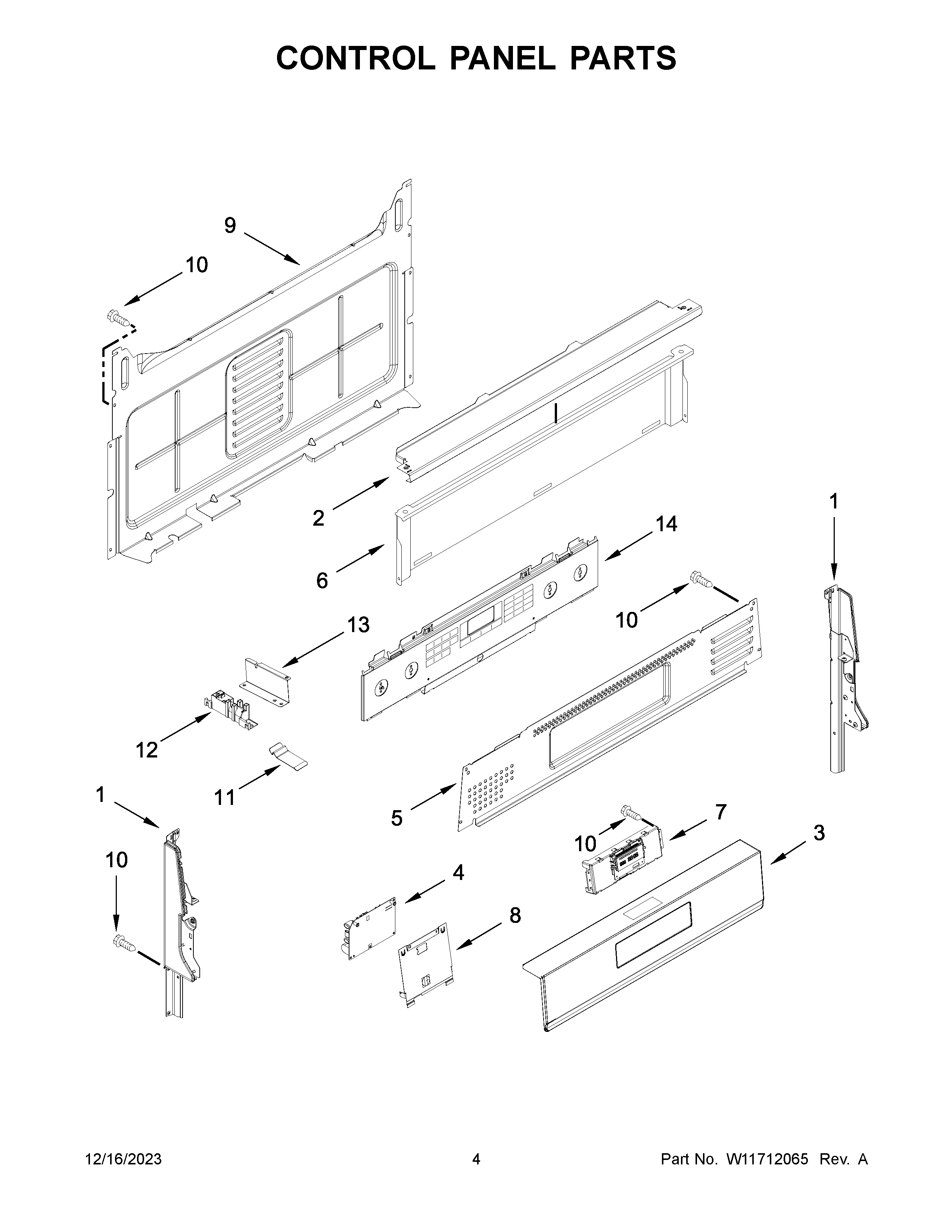

MGR8800FZ6 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
3W11164063 Whirlpool Control Panel
4W11162730 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11620579-includeCORE Whirlpool W11620579 Refrigerator Electronic Control Board
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11WPW10551614 Whirlpool Clip
12W11703692 Whirlpool Speaker Module
13W10901176 Whirlpool Bracket Assembly
14ASSEMBLY, ACTIVE OVERLAY (BLACK)
