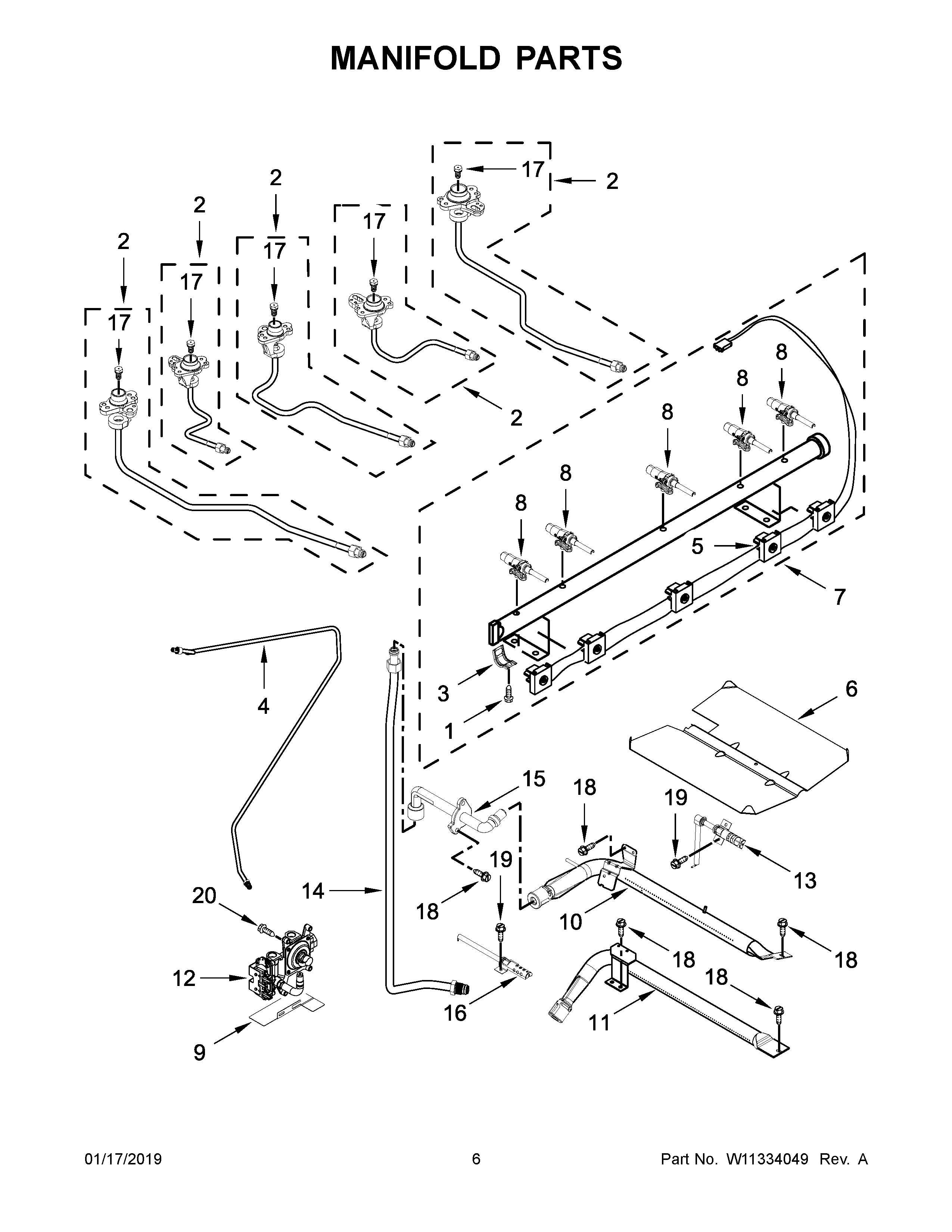

MGR8800HK0 04 – MANIFOLD PARTS

Products

Position	Product
NI	KIT, LP 5 ORIFICE CONVERSION
NI	MAY W10566535
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)
2B	ASSEMBLY, ORIFICE HOLDER (15K)
2C	ASSEMBLY, ORIFICE HOLDER (5K)
2A	ASSEMBLY, ORIFICE HOLDER (9.5K)
2D	ASSEMBLY, ORIFICE HOLDER (8K) (CENTER)
3	BRACKET, SADDLE VALVE
4	MAY W10510125
5	HARNESS, IGNITER (INCLUDES SWITCHES)
6	MAY 3601P336-45
7	ASSEMBLY, MANIFOLD
8A	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (RIGHT REAR)
8C	VALVE, GAS (CENTER)
8B	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
9	BRACKET, AEGIS
10	MAY W10439242
11	MAY W10680035
12	MAY W10720102
13	ELECTRODE, BAKE
14	MAY W10306050
15	MAY W10776437
16	ELECTRODE, BROIL
17A	MAY W10732136
17C	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
17B	MAY W10170507
17D	ORIFICE (8K) (CENTER)
17	ORIFICE, BURNER (12K) (RIGHT FRONT)
18	SCREW
19	SCREW
20	SCREW
