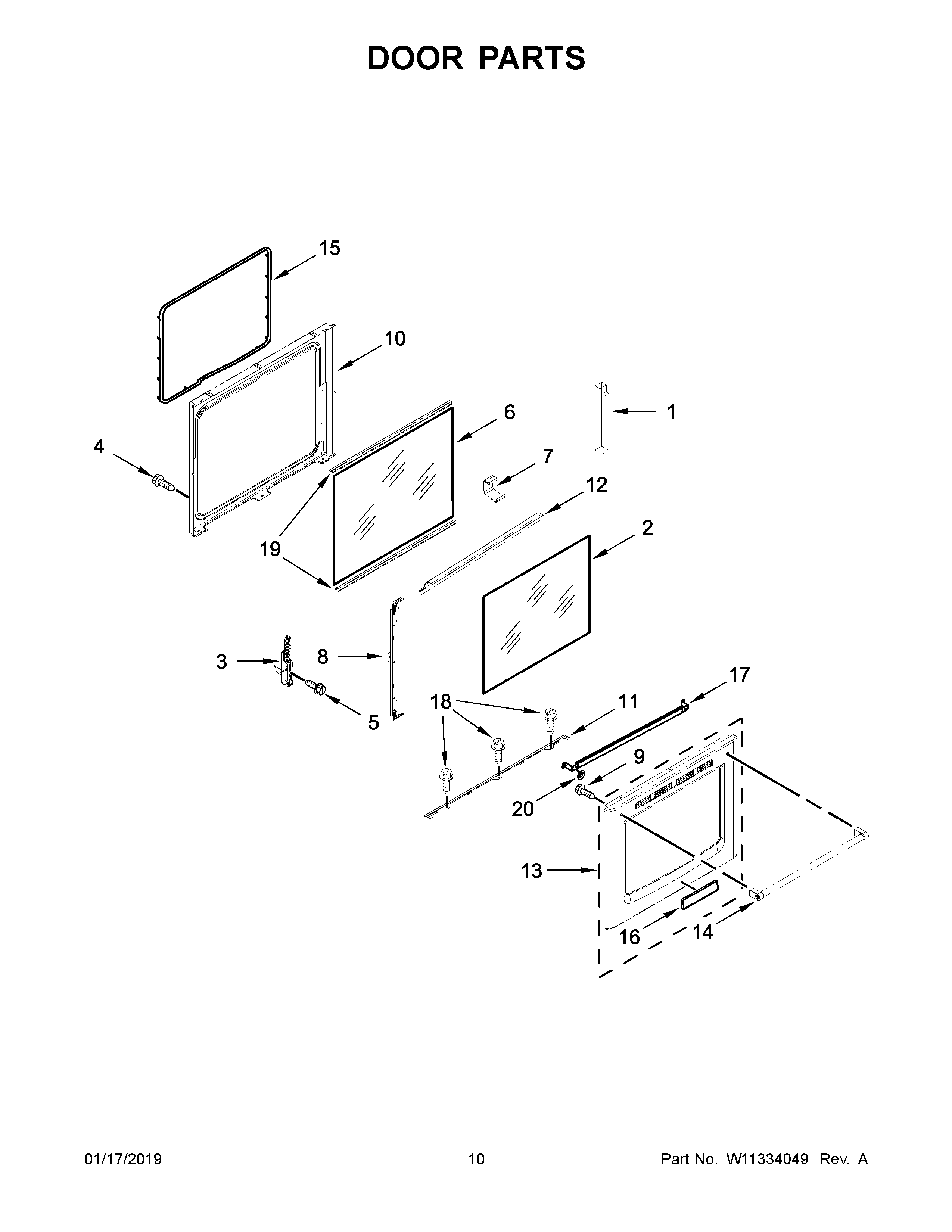

MGR8800HK0 06 – DOOR PARTS

Products

PositionProduct
1INSULATION, DOOR
2GLASS, OUTER (STAINLESS)
3HINGE, DOOR (ACTIVE)
4SCREW
5MAY W10362924
6GLASS, INNER
7CLIP, PANEL
8RAIL, VERTICAL SUPPORT
9MAY W10241367
10LINER, DOOR
11RAIL, HORIZONTAL SUPPORT
12SCOOP, DOOR (BLACK)
13MAY W11205027
14HANDLE, OVEN DOOR (STAINLESS)
15MAY W10162385
16BADGE
17BRACKET, GLASS UPPER HANDLE
18SCREW
19SPACER, GLASS
20WASHER, DOOR
