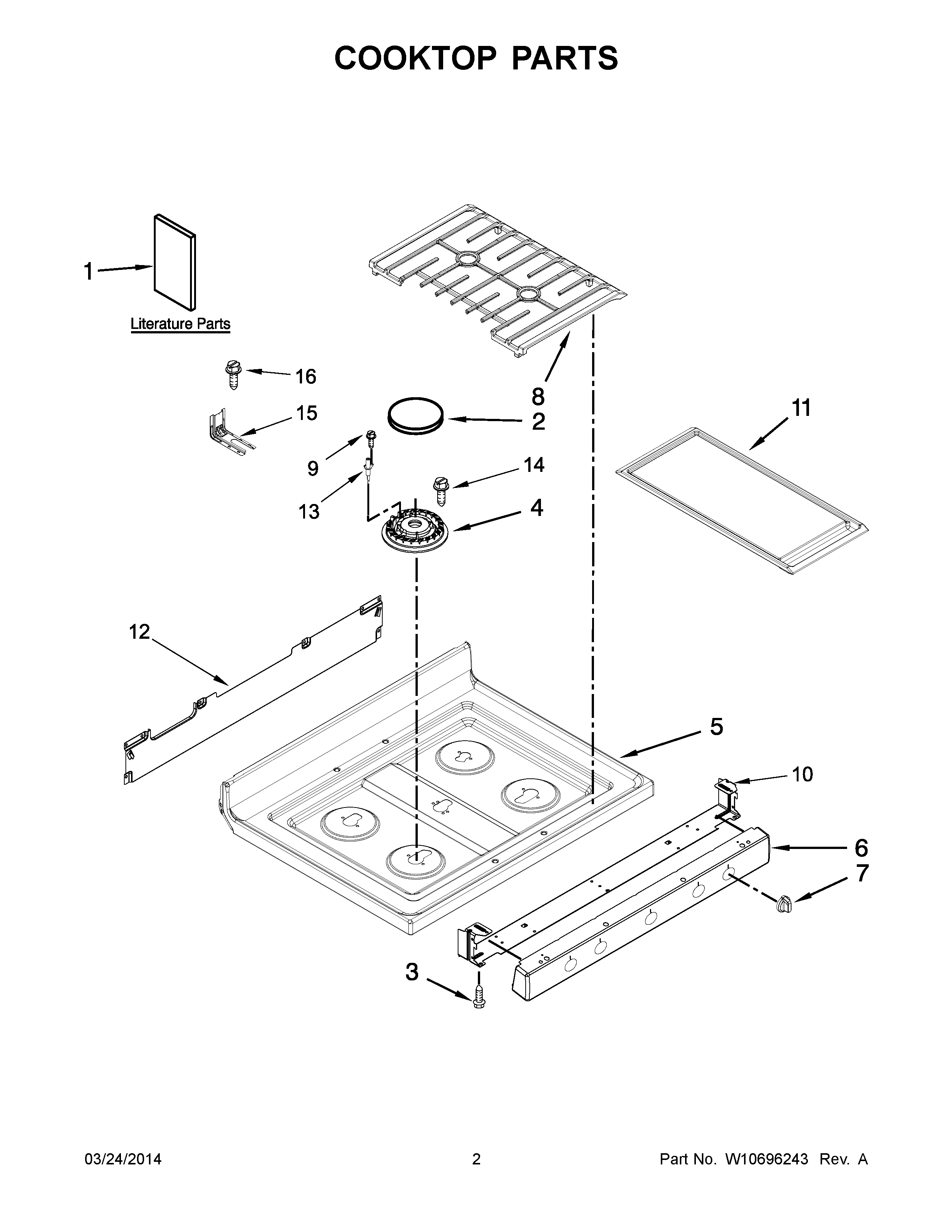

MGR8850DS0 02 – COOKTOP PARTS

MGR8850DS0 02 – COOKTOP PARTS

Written by

in

MGR8850DS0 02 – COOKTOP PARTS

Products

PositionProduct
1MAY W10553363
1MAY W10538797
1MAY W10400067
1MAY W10400066
1MAY W10538798
1MAY W10667179
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2CAP, BURNER (SET)
3SCREW
4ASSEMBLY, BURNER (6K) (RIGHT REAR)
4ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
5MAY W10366730
6MAY W10655891
7MAY W10650400
8MAY W10655132
9SCREW
10BRACKET, MAINFOLD (FRONT)
11MAY W10347385
12BRACKET, MANIFOLD (REAR)
13ELECTRODE (RIGHT REAR)
14MAY 8273062
15BRACKET, ANTI-TIP
16SCREW, ANTI-TIP KIT
