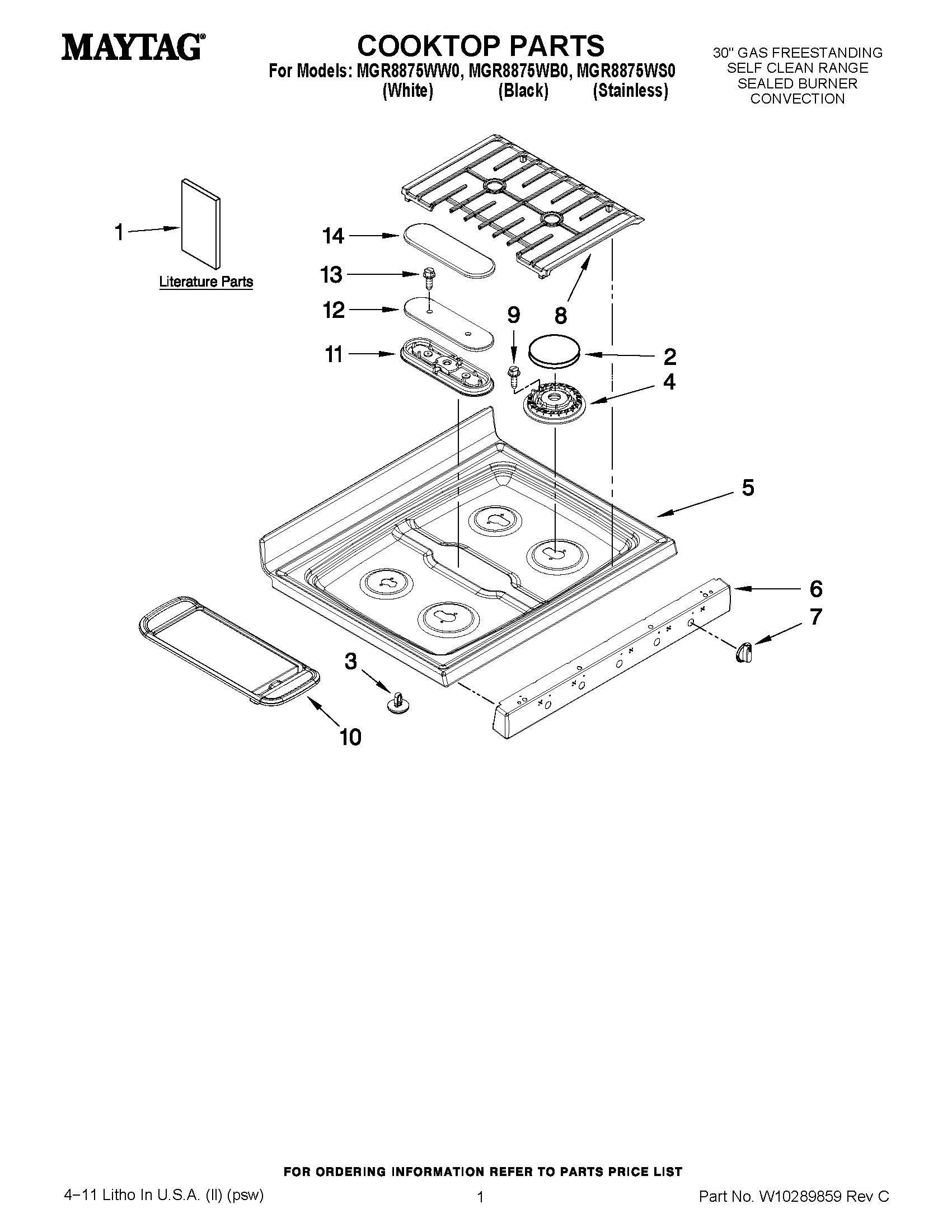

MGR8875WB0 01 – COOKTOP PARTS

MGR8875WB0 01 – COOKTOP PARTS

Written by

in

MGR8875WB0 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10258096
1MAY W10239464
1WIRING DIAGRAM (ENGLISH)
1WIRING DIAGRAM (FRENCH)
1TIPS, SAFE COOKING (FRENCH)
2CAP, BURNER LEFT FRONT (GREY)
2CAP, BURNER LEFT FRONT (BLACK)
3MAY 8010P149-60
4HEAD, BURNER (RF)
4HEAD, BURNER CTR.
4BURNER (LR/RR/RF)
5MAY W10237150
5MAY W10237151
6MAY W10211395
6MAY W10211381
6MAY W10211380
7MAY W10111302
7MAY W10200192
7KNOB, BURNER (BLACK)
8GRATE, BURNER (WETSTONE)
8MAY W10225517
9SCREW
10MAY W10169819
11ORIFICE, BURNER (CENTER)
12COVER, CAP
13SCREW
14SET, FISH BURNER CAP (WETSTONE)
14SET, FISH BURNER CAP (BLACK)
