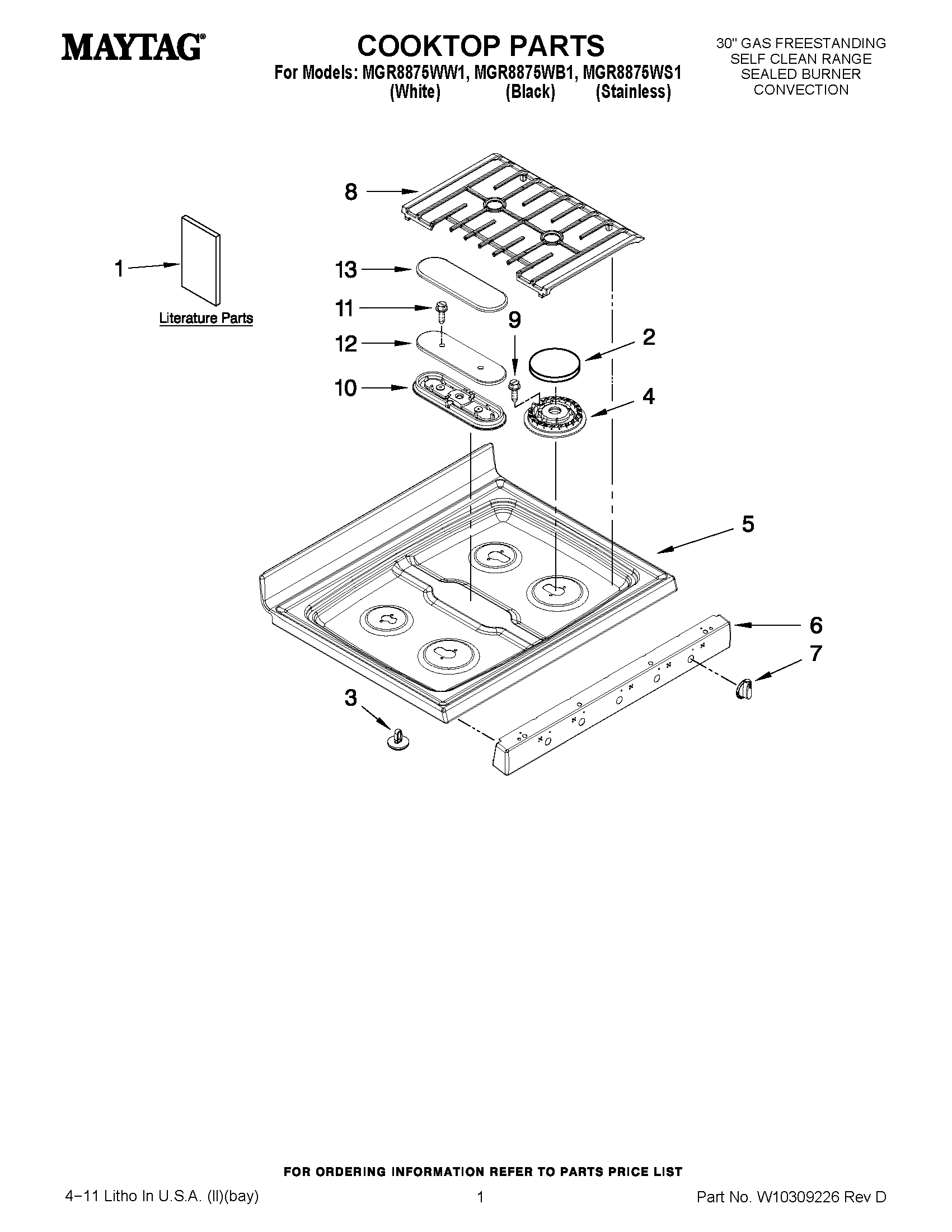

MGR8875WB1 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10258096
1MAY W10239464
1WIRING DIAGRAM (ENGLISH)
1WIRING DIAGRAM (FRENCH)
1TIPS, SAFE COOKING (FRENCH)
2CAP, BURNER LEFT FRONT (BLACK)
2CAP, BURNER LEFT FRONT (GREY)
3MAY 8010P149-60
4HEAD, BURNER (RF)
4BURNER (LR/RR/RF)
4HEAD, BURNER CTR.
4ORIFICE, BURNER (CENTER)
5MAY W10237151
5MAY W10237150
6MAY W10211395
6MAY W10211381
6MAY W10211380
7MAY W10111302
7KNOB, BURNER (BLACK)
7MAY W10200192
8GRATE, BURNER (WETSTONE)
8MAY W10225517
9SCREW
11SCREW
12COVER, CAP
13SET, FISH BURNER CAP (BLACK)
13SET, FISH BURNER CAP (WETSTONE)
