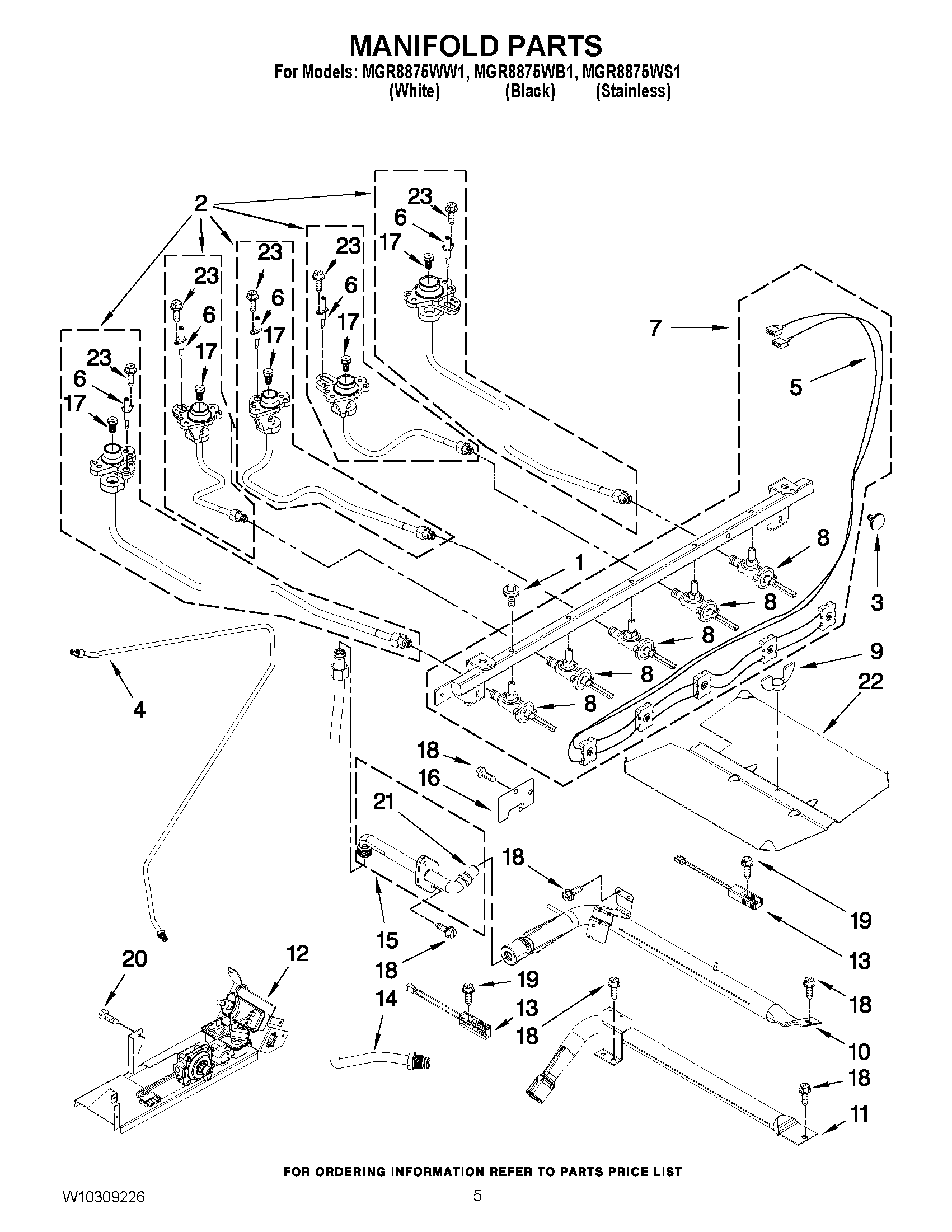

MGR8875WB1 04 – MANIFOLD PARTS
Written by
in
MGR8875WB1 04 – MANIFOLD PARTS
Products
Position
Product
NI
MAY W10271868
1
MAY 7101P651-60
2
MAY W10169903
2
ORIFICE, BURNER (LEFT REAR)
2
ORIFICE, BURNER (RIGHT REAR)
2
ORIFICE, BURNER (RIGHT FRONT)
2
MAY W10169909
3
MAY 8010P149-60
4
MAY 7506P361-60
5
MAY 7403P983-60
6
Electrode (4)
7
MAY W10269502
8
MAY 7502P501-60
8
VALVE (LR,LF,RR)
8
VALVE (CENTER)
9
NUT, WING
10
MAY W10160904
11
MAY 7505P331-60
12
MAY 7501P233-60
13
MAY 7432P136-60
13
IGNITOR, OVEN
14
MAY 7506P368-60
15
MAY W10247148
16
MAY 4005F421-45
17
ORIFICE, NATURAL (5K) (RIGHT REAR)
17
ORIFICE, NATURAL (9.5K) (LEFT REAR)
17
MAY W10170511
17
ORIFICE, BURNER (LEFT FRONT)
17
ORIFICE, BURNER (CENTER)
18
SCREW
19
SCREW
20
SCREW
21
MAY 7507P366-60
22
MAY 3601P336-45
23
MAY 8273062
←
