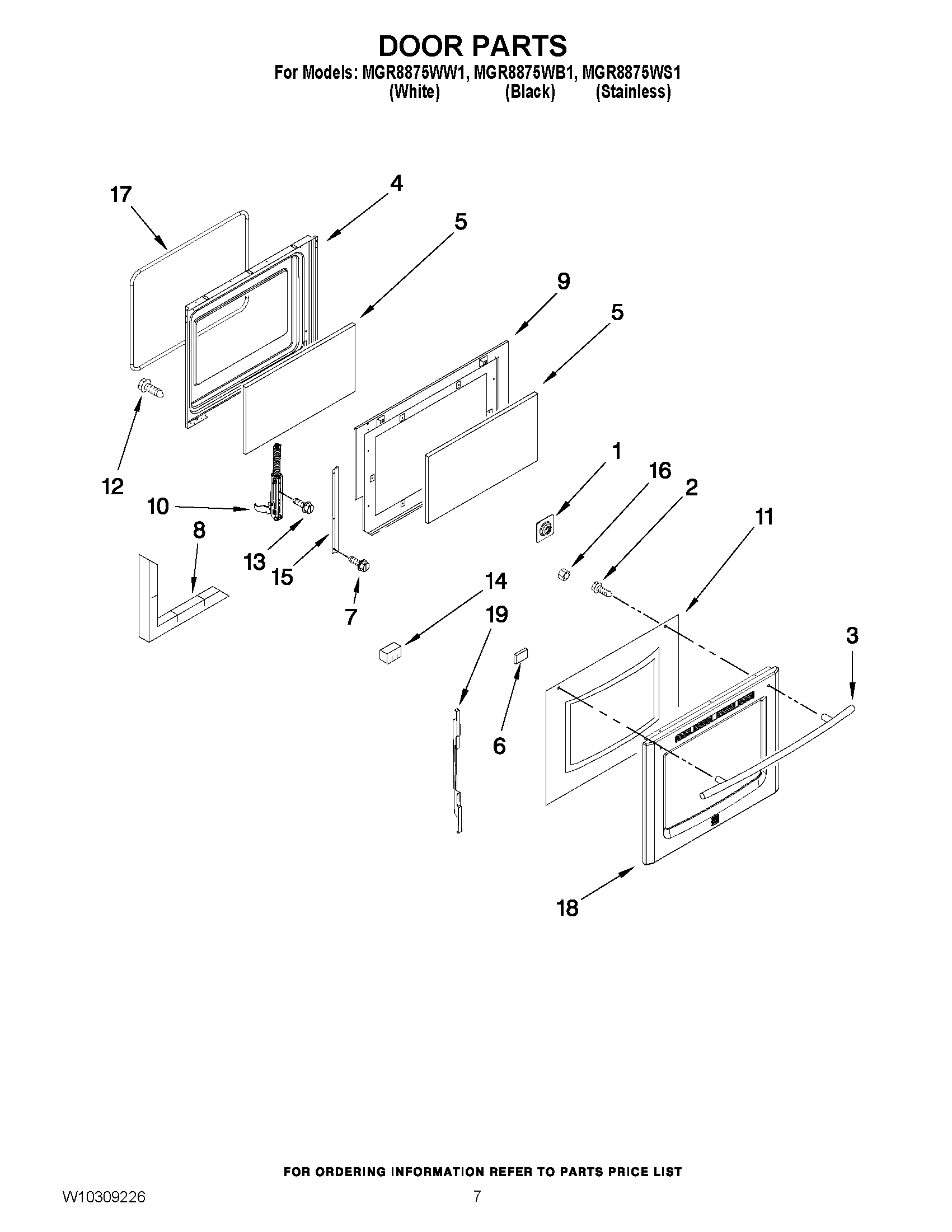

MGR8875WB1 05 – DOOR PARTS

MGR8875WB1 05 – DOOR PARTS

Written by

in

MGR8875WB1 05 – DOOR PARTS

Products

Position	Product
1	MAY 3823F017-45
2	MAY 3196557
3	MAY W10171747
3	MAY W10161708
3	MAY W10171748
4	MAY 2402W297-19
5	Glass, Inner
6	WP74004224 Whirlpool Tape
7	SCREW
8	MAY 7002P246-60
9	Retainer, Side
10	MAY 7106P124-60
11	MAY W10181725
12	SCREW
13	SCREW (10-24X5/16-NI)
14	TAPE, FOIL
15	BRACKET, INNER GLASS
16	MAY 7103P176-60
17	MAY W10306689
18	MAY W10172590
18	MAY W10097300
18	MAY W10214541
19	MAY 3801P918-51
