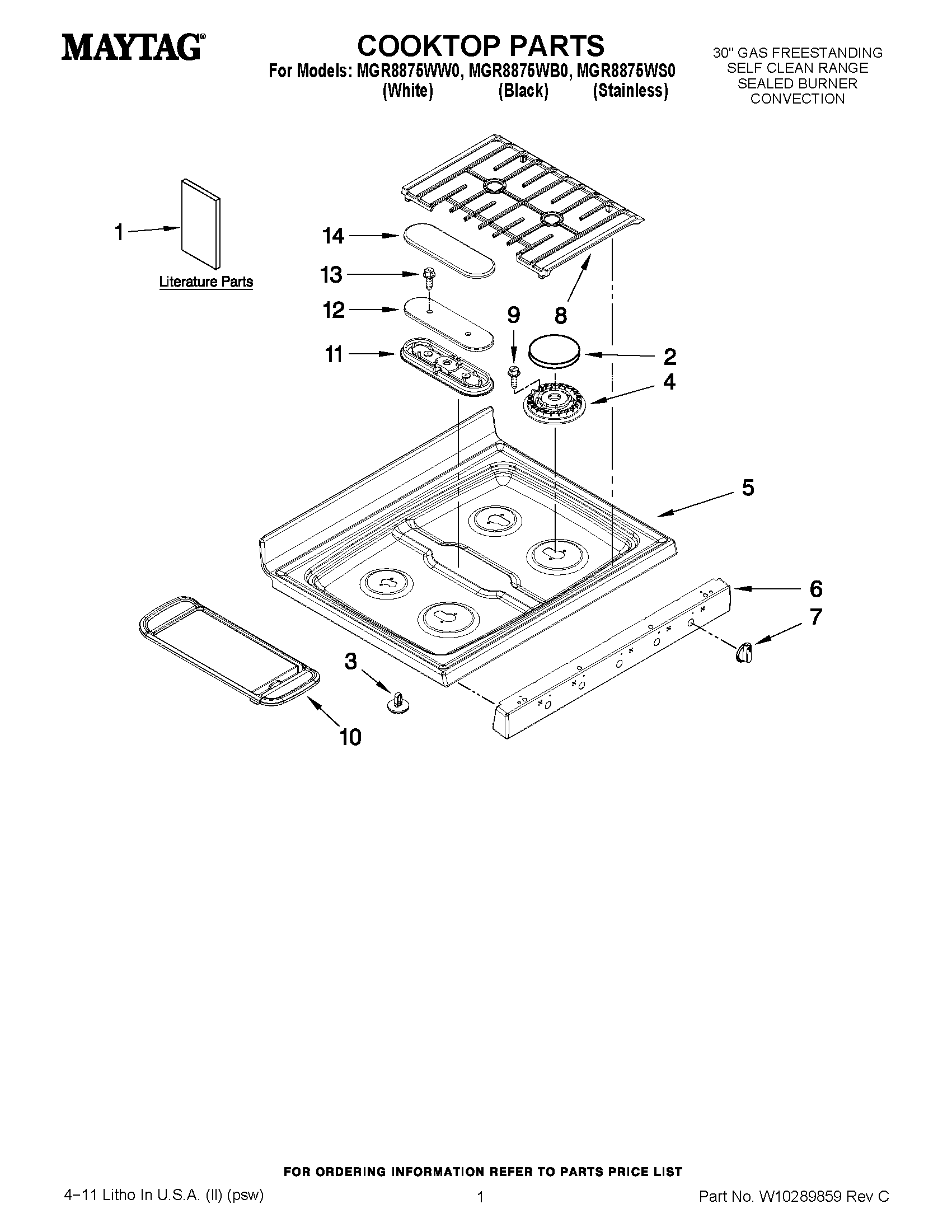

MGR8875WS0 01 – COOKTOP PARTSadmin2025-04-26T13:04:42+00:00MGR8875WS0 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY W10258096 |
| 1 | MAY W10239464 |
| 1 | WIRING DIAGRAM (ENGLISH) |
| 1 | WIRING DIAGRAM (FRENCH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | CAP, BURNER LEFT FRONT (GREY) |
| 2 | CAP, BURNER LEFT FRONT (BLACK) |
| 3 | MAY 8010P149-60 |
| 4 | HEAD, BURNER (RF) |
| 4 | HEAD, BURNER CTR. |
| 4 | BURNER (LR/RR/RF) |
| 5 | MAY W10237150 |
| 5 | MAY W10237151 |
| 6 | MAY W10211395 |
| 6 | MAY W10211381 |
| 6 | MAY W10211380 |
| 7 | MAY W10111302 |
| 7 | MAY W10200192 |
| 7 | KNOB, BURNER (BLACK) |
| 8 | GRATE, BURNER (WETSTONE) |
| 8 | MAY W10225517 |
| 9 | SCREW |
| 10 | MAY W10169819 |
| 11 | ORIFICE, BURNER (CENTER) |
| 12 | COVER, CAP |
| 13 | SCREW |
| 14 | SET, FISH BURNER CAP (WETSTONE) |
| 14 | SET, FISH BURNER CAP (BLACK) |
