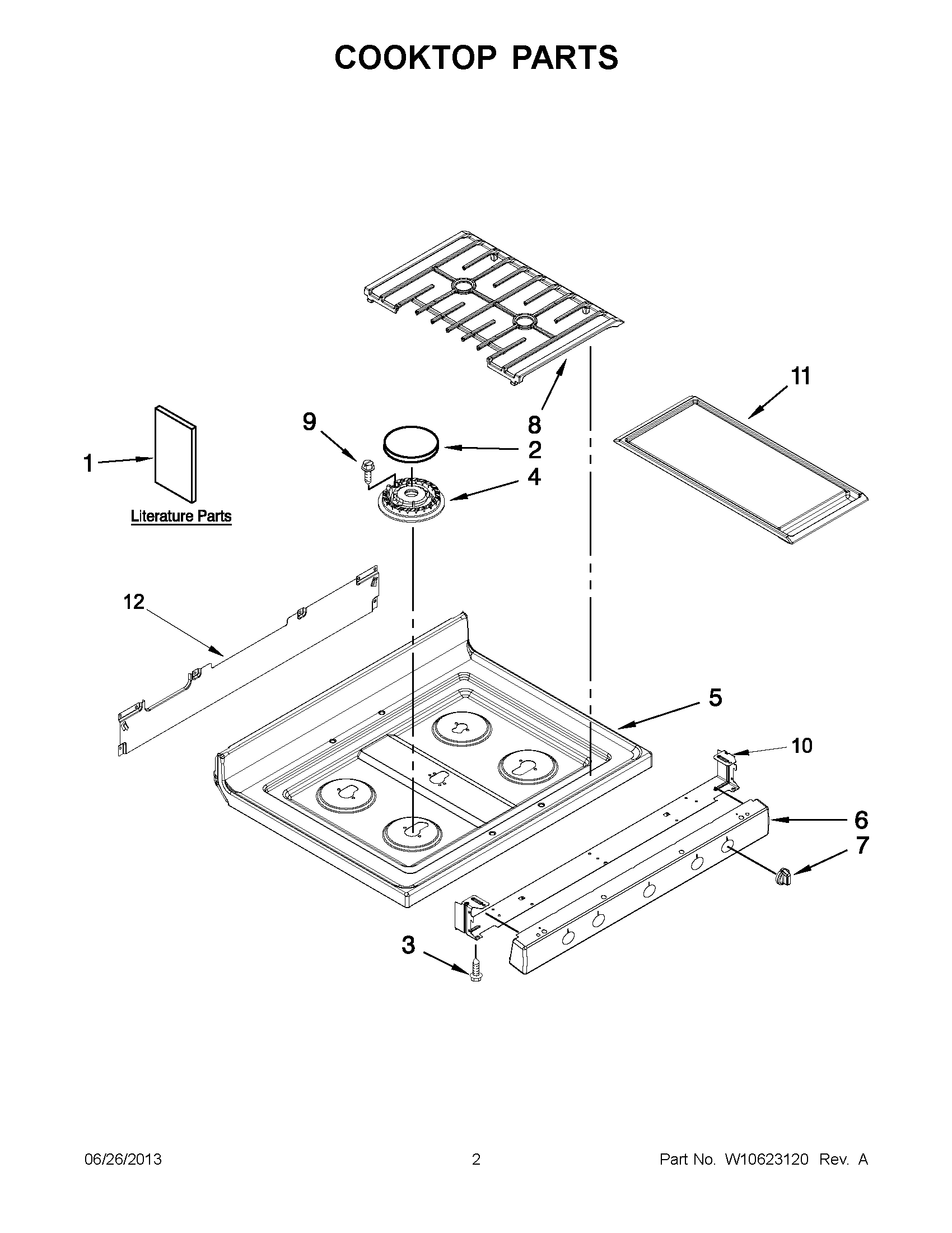

MGR8880AS1 01 – COOKTOP PARTS

MGR8880AS1 01 – COOKTOP PARTS

Written by

in

MGR8880AS1 01 – COOKTOP PARTS

Products

PositionProduct
1OWNERS MANUAL WIRING DIAGRAM
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10400066
1MAY W10538797
1MAY W10553363
2CAP, BURNER (SET)
3SCREW
4ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4ASSEMBLY, BURNER (6K) (RIGHT REAR)
4ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
5MAY W10366729
5MAY W10366730
6MAY W10441315
6MAY W10441313
6MAY W10441312
7MAY W10370187
7MAY W10370188
7MAY W10370189
8MAY W10451804
9SCREW
10BRACKET, MAINFOLD (FRONT)
11MAY W10347385
12BRACKET, MANIFOLD (REAR)
