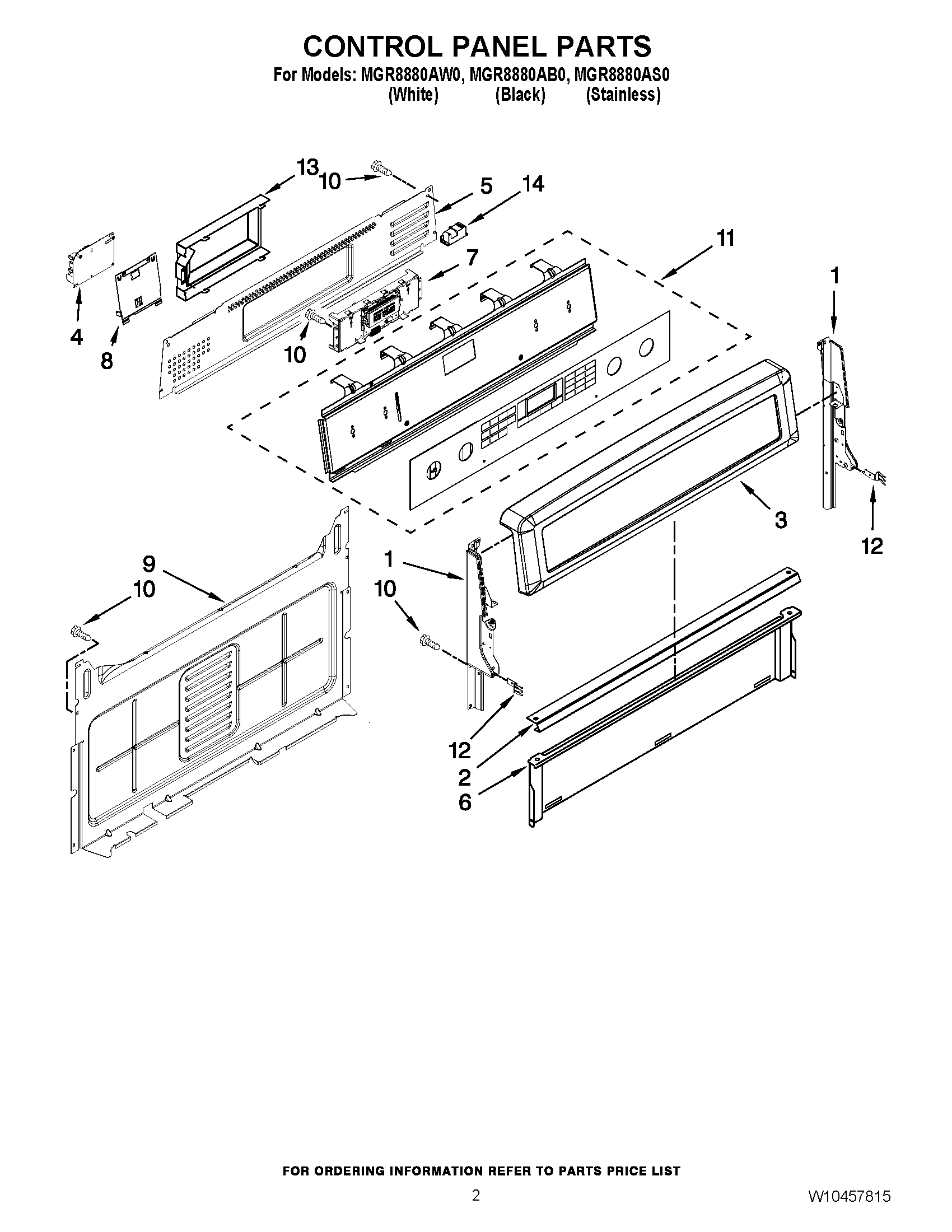

MGR8880AW0 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	MAY 3196068
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (RIGHT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (LEFT))
2	BRKT-MNTG,CONSOLE
3	CONSOLE (STAINLESS)
3	MAY W10097270
3	MAY W10097280
4	MAY W10331686
5	COVER, UPPER
6	SHIELD, HEAT
7	MAY W10340325
8	BRACKET, GAS
9	Cover, Back
10	SCREW
11	MAY W10339439
11	MAY W10339438
11	MAY W10339440
12	BRACKET, REAR COOKTOP
13	Cover
14	MODULE, SPARK
