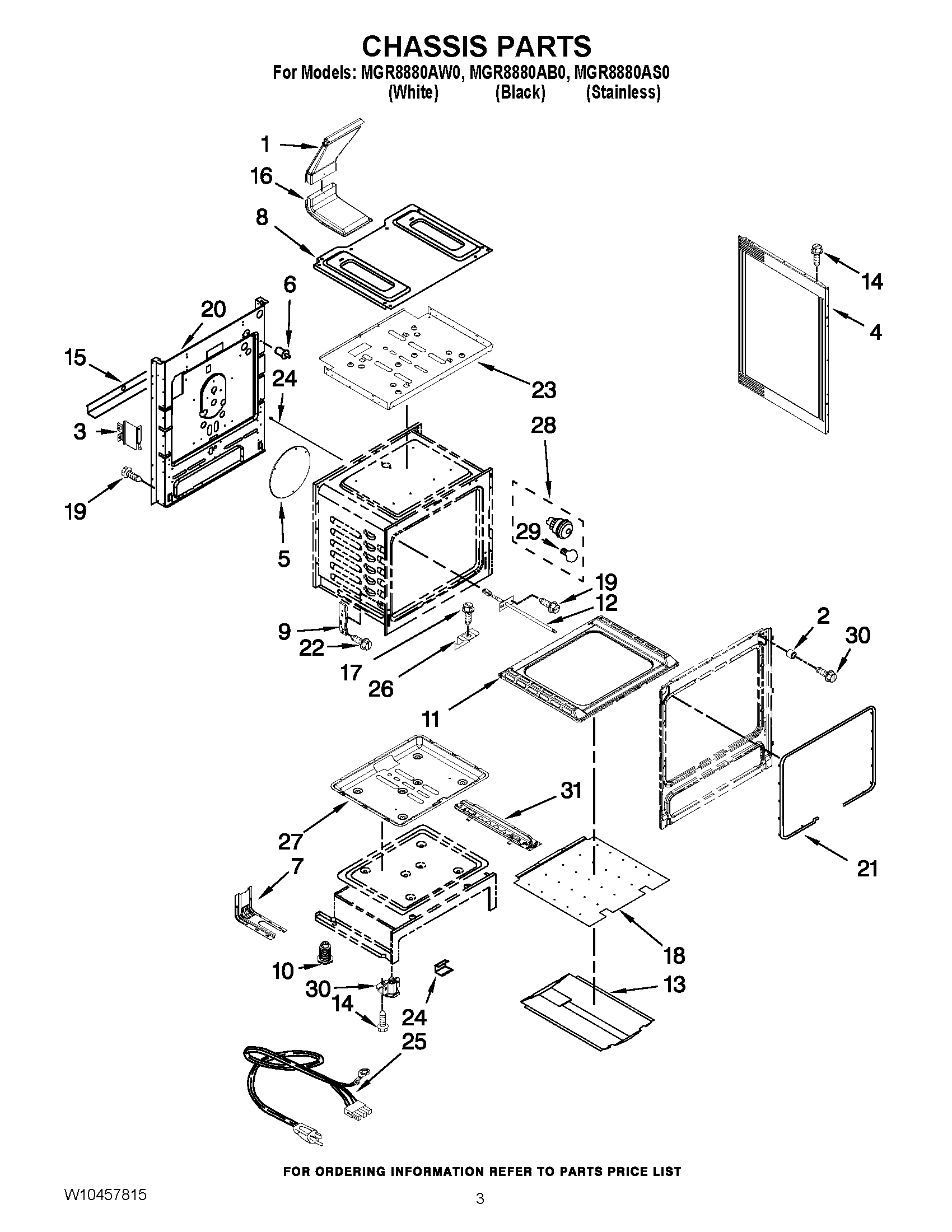

MGR8880AW0 03 – CHASSIS PARTSadmin2025-04-26T13:06:05+00:00MGR8880AW0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10194395 |
| NI | MAY W10194394 |
| NI | ALT CLEANING KIT |
| NI | STRAP, INSULATION |
| 1 | MAY W10314347 |
| 2 | SPACER, DOOR |
| 3 | BRACKET, SUPPORT |
| 4 | MAY W10322769 |
| 4 | MAY W10322770 |
| 5 | MAY W10346154 |
| 6 | MAY 9757262 |
| 7 | BRACKET, ANTI-TIP |
| 8 | BOX-BURNER, GAS SEALED |
| 9 | RECEIVER, HINGE |
| 10 | FOOT, LEVELING |
| 11 | MAY W10211368 |
| 12 | SENSOR, OVEN |
| 13 | MAY 3601P356-45 |
| 15 | BRACE, MAIN BACK |
| 16 | ASSEMBLY, UPPER FLUE |
| 17 | MAY W10362924 |
| 18 | MAY W10323077 |
| 19 | SCREW |
| 20 | MAY W10273005 |
| 21 | MAY W10162385 |
| 22 | MAY W10031780 |
| 23 | MAY W10273195 |
| 24 | ROD, REAR DOOR |
| 25 | Cord, Power |
| 26 | MAY W10035900 |
| 27 | MAY W10273204 |
| 28 | MAY 3196701 |
| 29 | BULB, OVEN LIGHT |
| 30 | ASSEMBLY, FRONT FOOT |
| 31 | ASSEMBLY, BASE RAIL (LEFT) |
| 31 | ASSEMBLY, BASE RAIL (RIGHT) |
