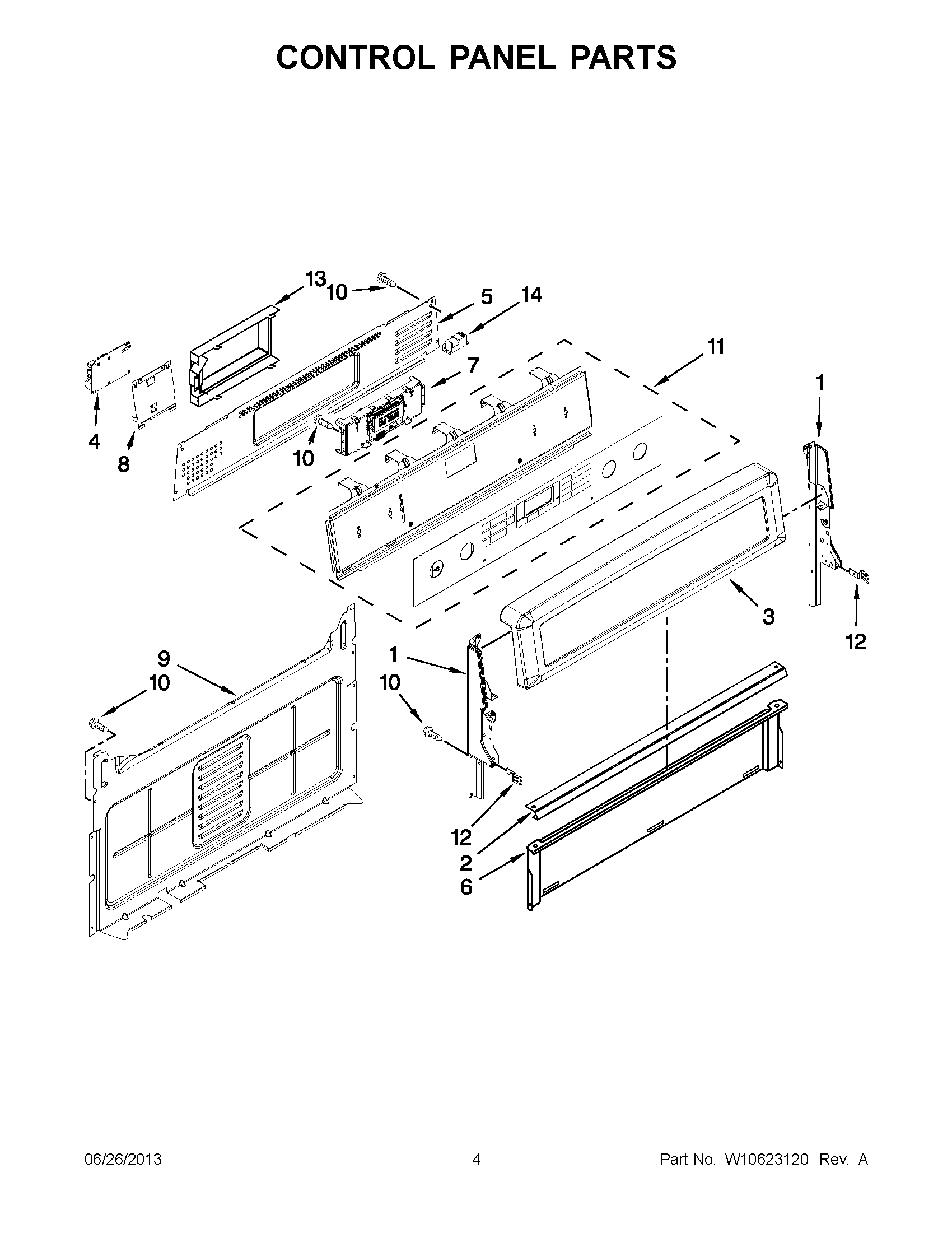

MGR8880AW1 02 – CONTROL PANEL PARTS

MGR8880AW1 02 – CONTROL PANEL PARTS

Written by

in

MGR8880AW1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2BRACKET, CONSOLE MOUNTING
3MAY W10097280
3MAY W10097270
3CONSOLE (STAINLESS)
4MAY W10511278
5COVER, UPPER
6SHIELD, HEAT
7MAY W10340325
8BRACKET, GAS
9Cover, Back
10SCREW
11MAY W10339438
11MAY W10339439
11MAY W10339440
12BRACKET, REAR COOKTOP
13Cover
14MAY W10475149
