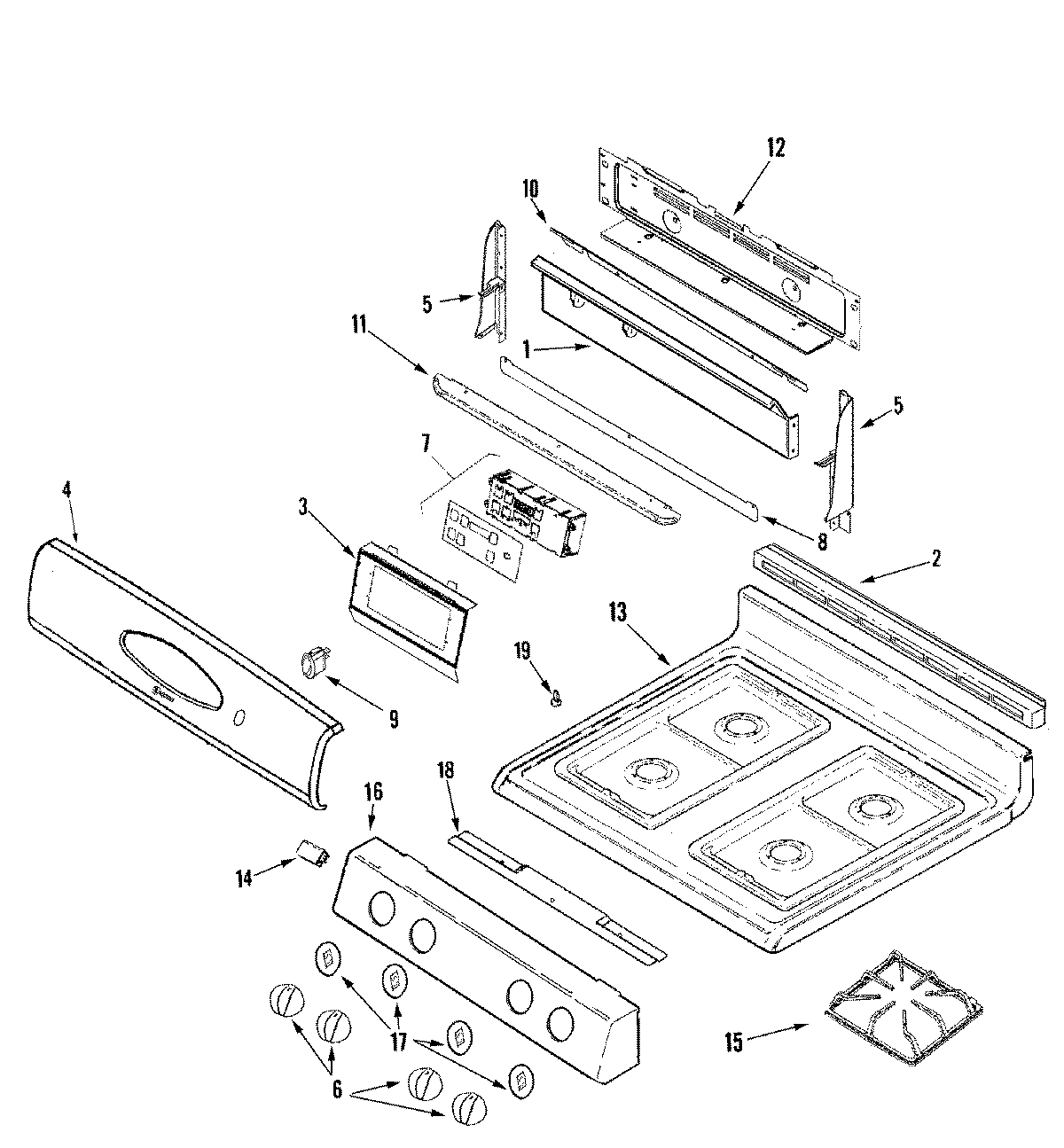

MGRH752BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	SCREW (8BX3/8-NI)
1	MAY 74009779
2	SCREW (10ABX1/4P TR ZN)
2	MAY 74009797
3	BRACKET, CLOCK
4	MAY 74009110
4	MAY 74009093
5	WP74009541 Whirlpool Screw Assembly
5	MAY 74010712
5	MAY 74010714
6	74009774 Whirlpool Oven Knob Bisque
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	5701M754-60 Whirlpool Electronic Control Board
7	WP74003976 Whirlpool Screw
8	MAY 74009780
9	7403P984-60 Whirlpool RO Switch
10	SCREW
10	MAY 74009978
11	MAY 74009803
11	MAY 74009798
12	COVER, REAR WIRE
12	WP90767 Whirlpool Screw
12	MAY 74006536
12	MAY 71001394
13	WP74005546 Whirlpool RU Spacer
13	MAY 74004964
14	MAY 74004827
15	MAY 74003514
15	WP7518P464-60 Whirlpool Burner Grate
16	MAY 74009830
17	MAY 74009846
18	MAY 74002447
19	W11189172 Whirlpool Glide Drawer
