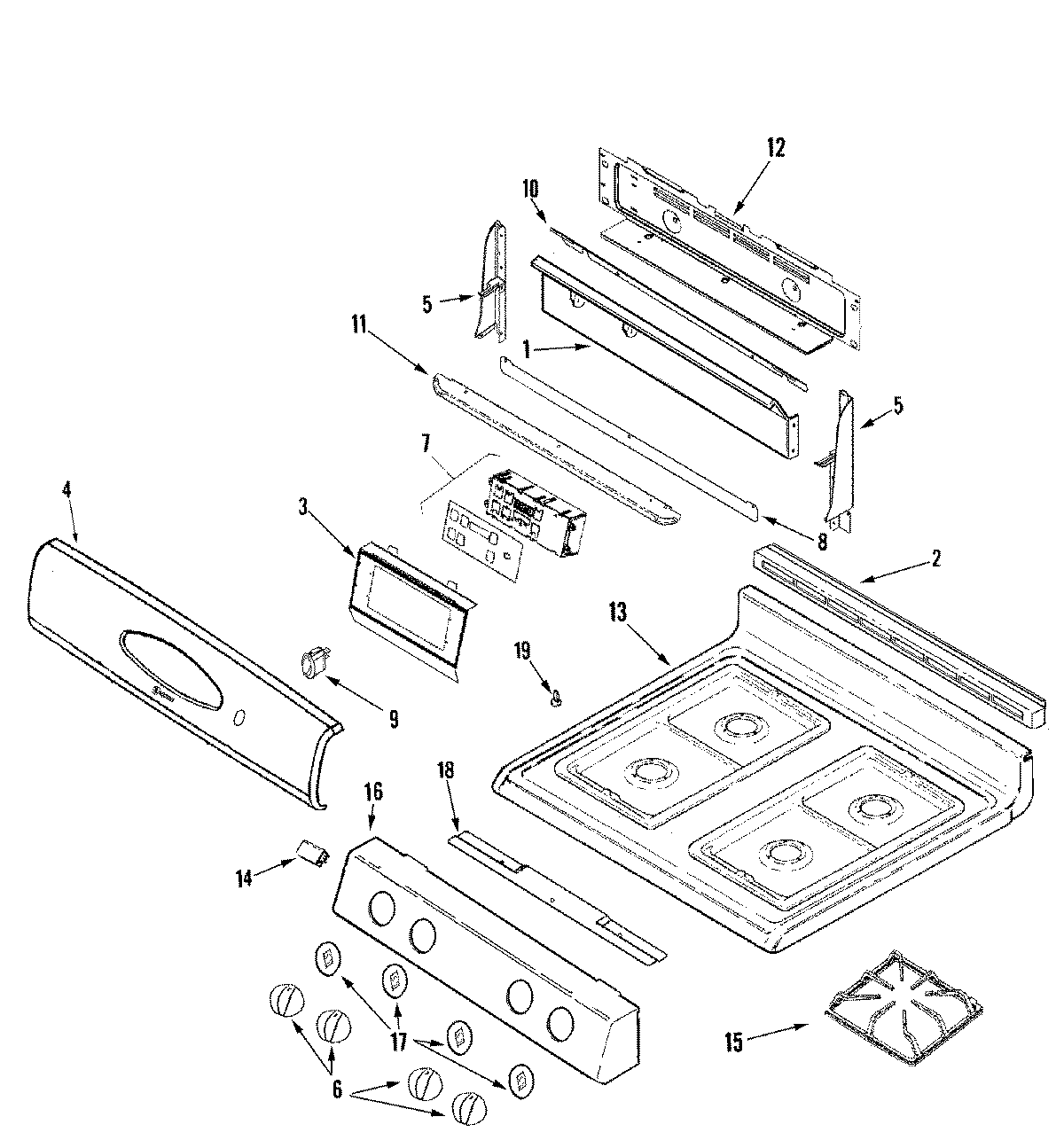

MGRH752BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3BRACKET, CLOCK
4MAY 74009108
4MAY 74009093
5WP98008545 Whirlpool Screw
5MAY 74010202
5MAY 74010201
6KNOB (BLK)
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
75701M754-60 Whirlpool Electronic Control Board
7WP74003976 Whirlpool Screw
8MAY 74009780
97403P985-60 Whirlpool Rocker Switch (Black)
10MAY 74009978
10SCREW
11MAY 74009801
11MAY 74009800
12MAY 71001394
12MAY 74006536
12COVER, REAR WIRE
12WP90767 Whirlpool Screw
13MAY 71003047
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74009827
17MAY 74009846
18MAY 74002447
19W11189172 Whirlpool Glide Drawer
