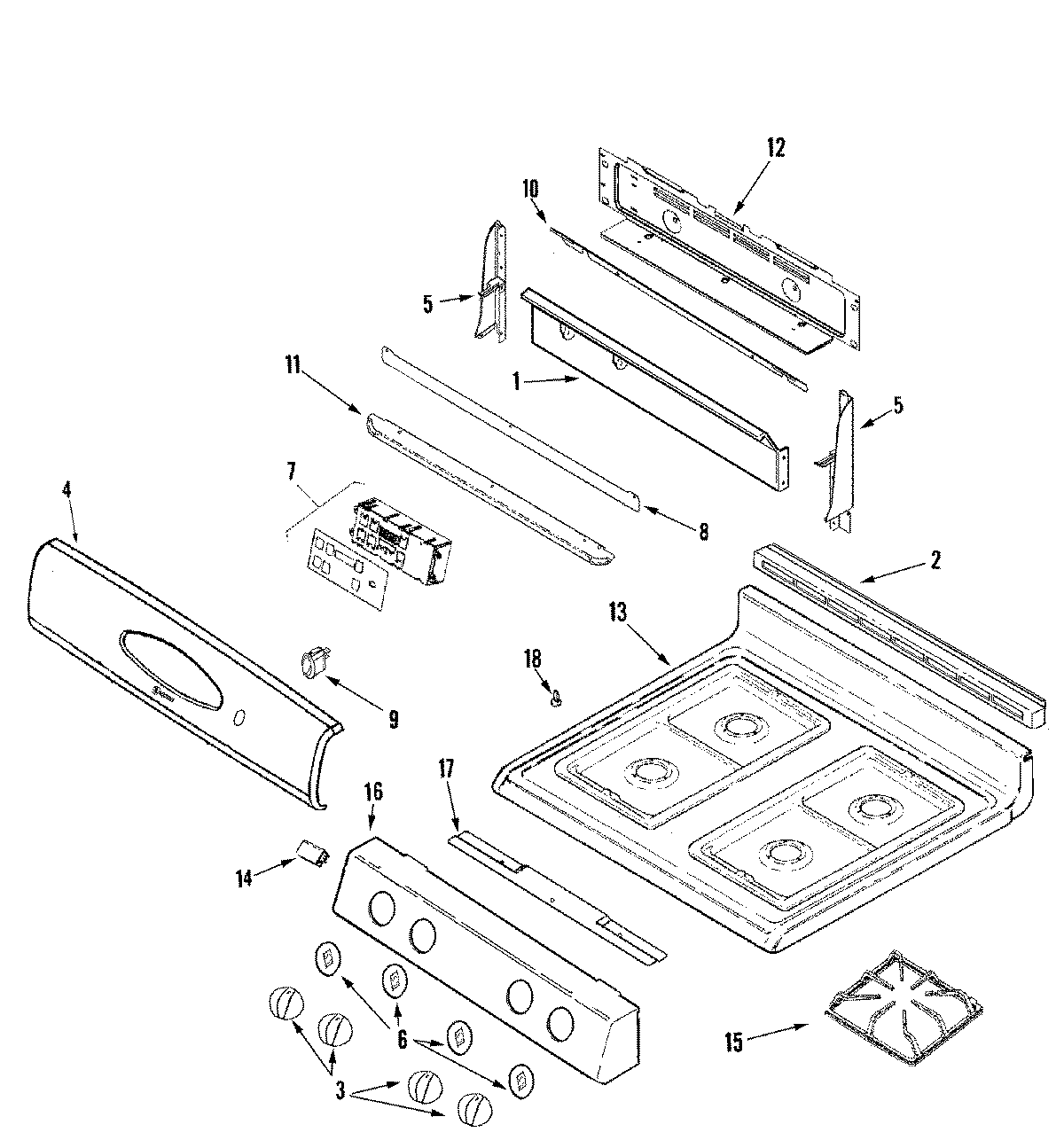

MGRH752CDS 02 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
MGRH752CDS 02 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
SCREW (8BX3/8-NI)
1
MAY 74009779
2
MAY 74009797
2
SCREW (10ABX1/4P TR ZN)
3
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3
KNOB (BLK)
4
MAY 74010455
4
MAY 74009093
5
WP98008545 Whirlpool Screw
5
MAY 74010202
5
MAY 74010201
6
MAY 74009846
7
5701M754-60 Whirlpool Electronic Control Board
7
WP74003976 Whirlpool Screw
8
MAY 74009780
9
7403P985-60 Whirlpool Rocker Switch (Black)
10
MAY 74009978
10
SCREW
11
MAY 74009800
11
MAY 74009801
12
MAY 71001394
12
MAY 74006536
12
COVER, REAR WIRE
12
WP90767 Whirlpool Screw
13
MAY 71003047
13
WP74005546 Whirlpool RU Spacer
14
MAY 74004827
15
WP7518P464-60 Whirlpool Burner Grate
16
MAY 74009827
17
MAY 74002447
18
W11189172 Whirlpool Glide Drawer
←
