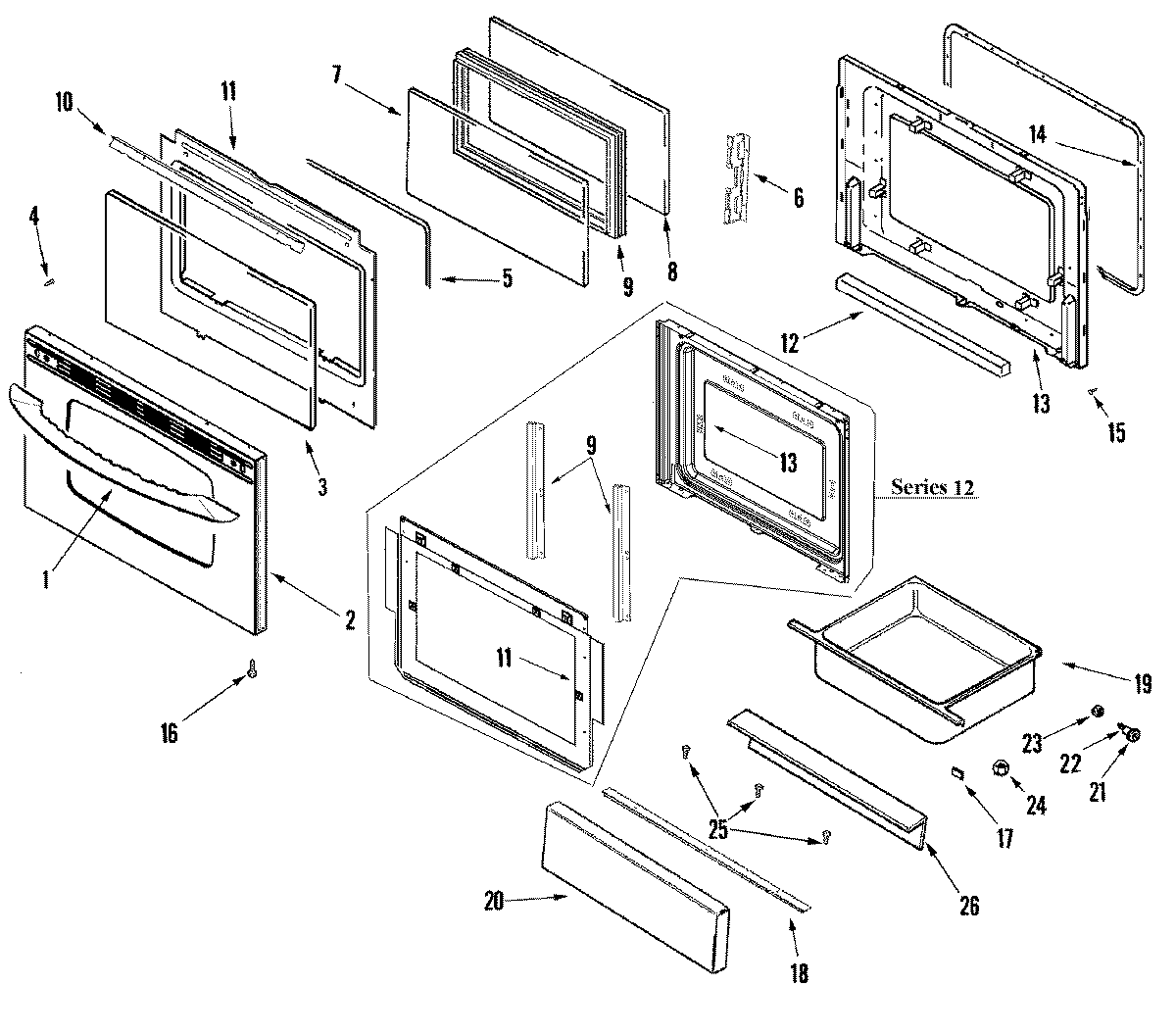

MGRH752CDS 03 – DOOR/DRAWER (STL)

Products

Position	Product
1	WP7701P526-60 Whirlpool Door Handle
2	NUT, SNAP (ROUND-BLK)
2	MAY 74010232
2	MAY 74010233
3	MAY 74010042
4	WP74006515 Whirlpool Washer Screw
4	MAY 74011772
5	WP74009029 Whirlpool Door Gasket
6	MAY 74010041
7	GLASS, DOOR (INNER/COATED)
8	74003645 Whirlpool Range Oven Door Inner Glass
9	SCREW, 8 X 1/2
9	FRAME, GLASS
9	3801F886-51 Whirlpool Mounting Bracket
10	MAY 74010040
11	3601F373-51 Whirlpool Baffle
11	MAY 74009502
12	INSULATION, OVEN DOOR
13	MAY 74003642
13	LINING, DOOR
14	GASKT-DOOR OVEN
17	WP74005546 Whirlpool RU Spacer
18	Handle, Drawer (STL)
18	HANDLE, DRAWER (STL)
19	SCREW
19	SPACER, RUBBER (BLK-SQUARE)
19	MAY 74008337
20	PANEL, DRAWER GAS (STL)
20	MAY 74009840
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
23	WP488130 Whirlpool Air Conditioner Nut
24	WPW10131078 Whirlpool Nut Assembly
26	LINING, DRAWER PANEL
