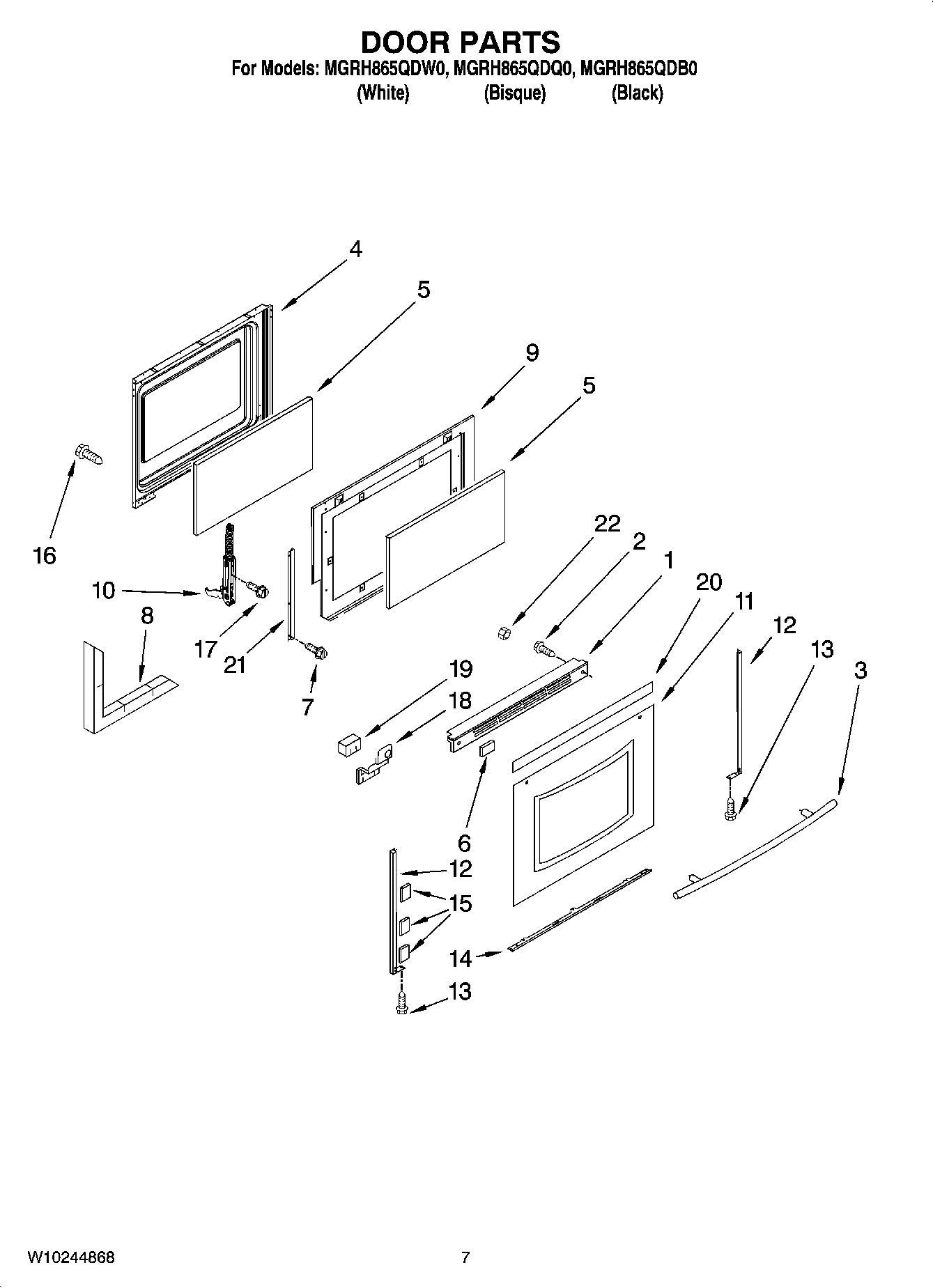

MGRH865QDB0 05 – DOOR PARTS
Written by
in
MGRH865QDB0 05 – DOOR PARTS
Products
Position
Product
1
MAY 3608F140-78
1
MAY 3608F140-70
1
MAY 3608F140-71
2
MAY 7010P636-60
2
MAY 7101P528-60
3
MAY 7701P523-60
3
MAY 7701P524-60
3
MAY 7701P522-60
4
MAY 2402W297-19
5
Glass, Inner
6
Tape (White)
7
MAY 7101P388-60
8
MAY 7002P246-60
9
Retainer, Side
10
MAY 7106P124-60
11
MAY 7902M781-60
11
MAY 7902P791-60
11
MAY 7902M674-60
12
MAY 8270P193-60
12
MAY 3608F126-71
12
Trim, Door Side (Bisque)
13
Screw (2) (Black)
14
TRIM, DOOR BOTTOM (BISQUE)
14
MAY 3608F092-71
14
MAY 3608F092-70
15
Tape, Double Sided (White)
15
MAY W10208307
16
MAY 7101P427-60
17
SCREW (10-24X5/16-NI)
18
MAY 3801F857-45
18
MAY 3801F858-45
19
INSULATION, CORNER (DOOR)
20
TAPE, FOIL 3“
21
BRACKET, INNER GLASS
22
WP3400029 Whirlpool Dishwasher Nut
←
