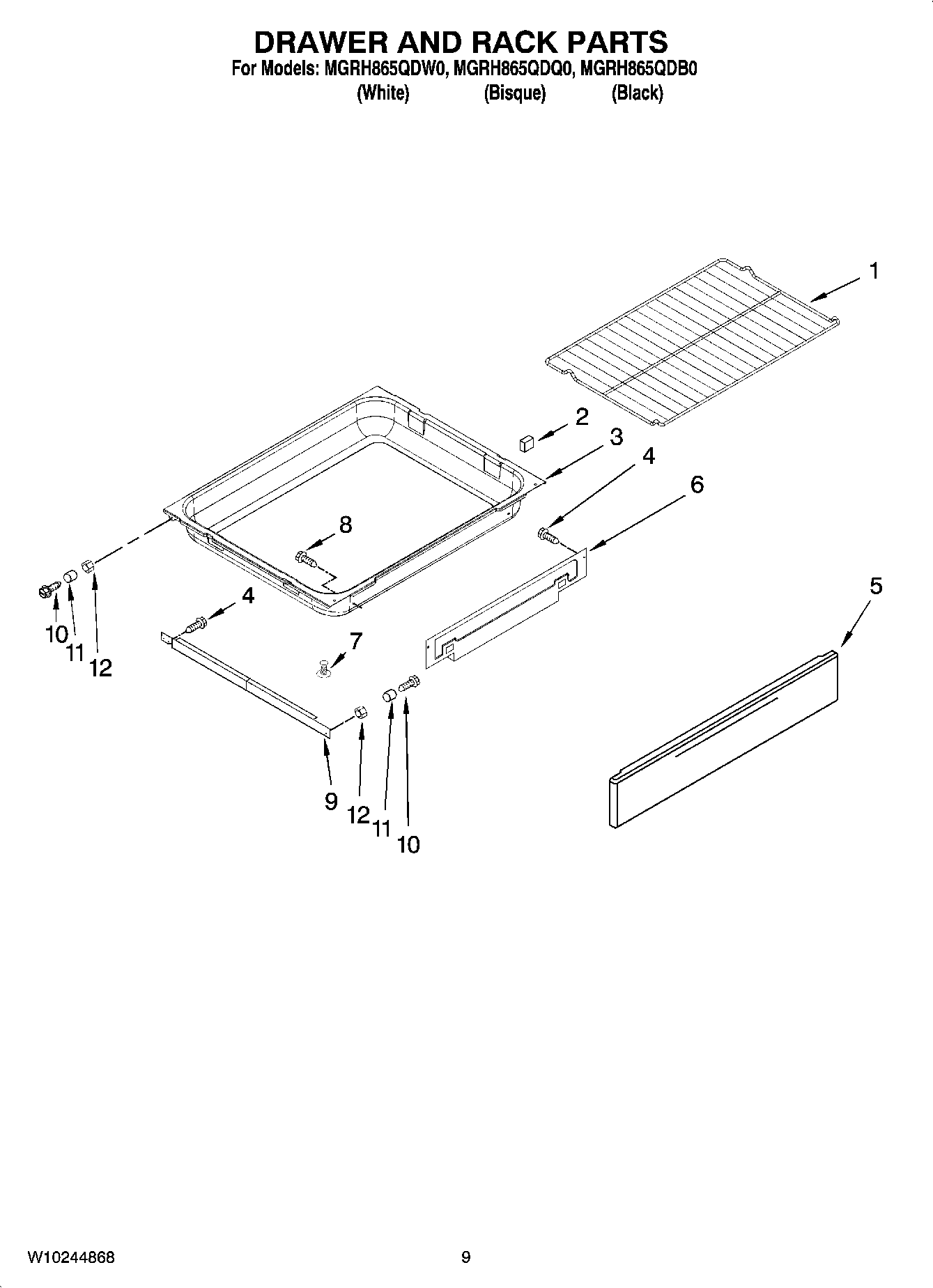

MGRH865QDB0 06 – DRAWER AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY 5171P730-60
NI	PAINT, BULK (1 qt.) (Biscuit)
NI	MAY 4392901
NI	SCREW, GROUND (GRN)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	Clip, Wire
NI	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
NI	REFINISHING MATERIAL (GREASE)
NI	CLIP, WIRE
NI	MAY W10173437
NI	MAY 4392899
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	INSULATION (2-1/2" X 22" X 120")
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	INSULATION (1-1/2" X 24" X 120")
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
1	MAY W10179196
2	MAY 8010P130-60
3	MAY 3405F037-80
4	MAY 7101P388-60
5	MAY 2416F104-71
5	MAY 2416F104-78
5	MAY 2416F104-70
6	MAY 3605F337-51
7	MAY 8038P037-60
8	WP7101P072-60 Whirlpool Screw
9	MAY 3406F034-51
10	MAY 7118P032-60
11	WP74004078 Whirlpool Door Roller
12	WP488130 Whirlpool Air Conditioner Nut
