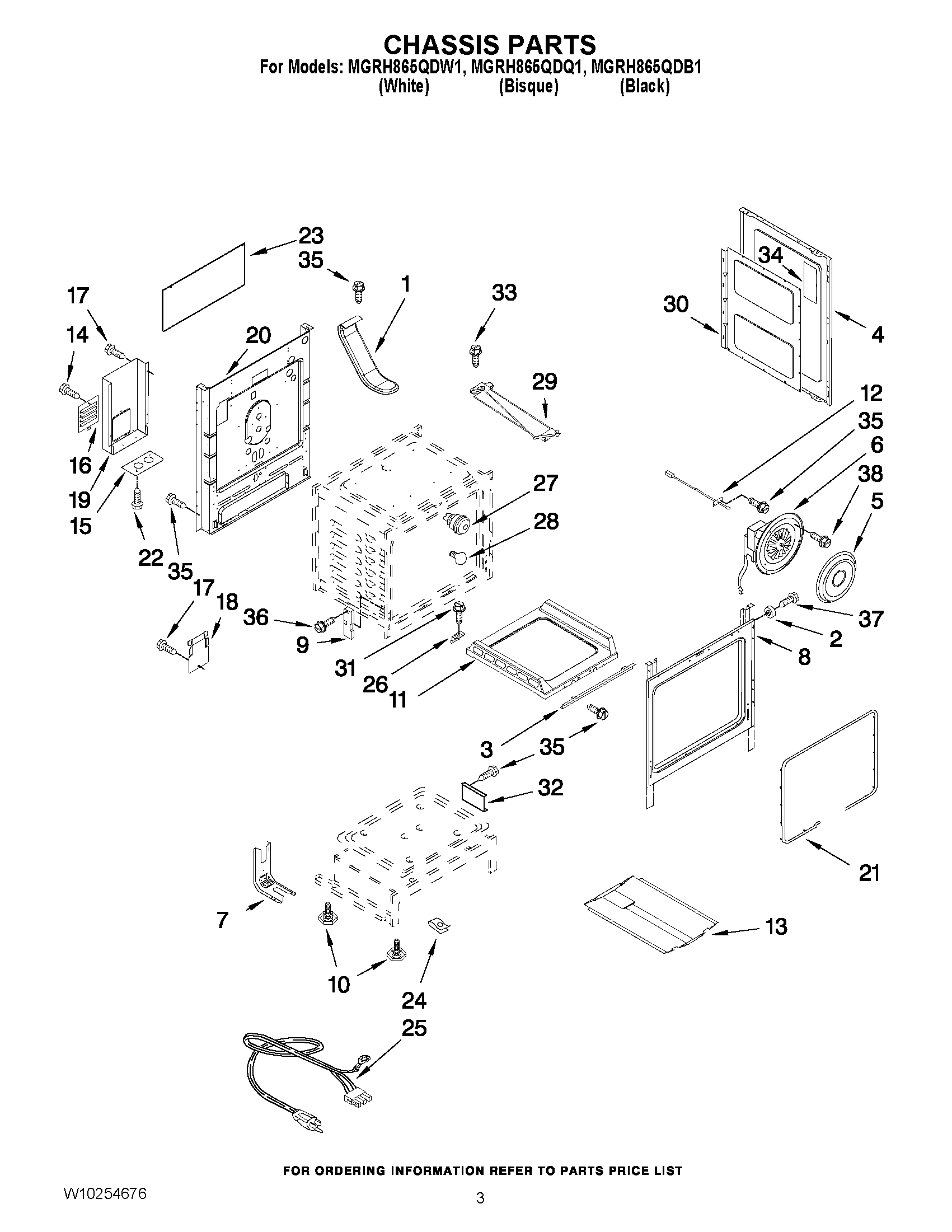

MGRH865QDB1 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P492-60
NI	MAY 7002P424-60
1	MAY 8026P080-60
2	MAY 8010P148-60
3	MAY 3807P680-45
4	Panel, Side (Bisque)
4	MAY 2618F172-69
4	MAY 2618F172-58
5	MAY 3605F305-19
6	Fan, Convection
7	BRACKET, ANTI-TIP
8	LINER (NOT A SERVICEABLE PART)
9	MAY 7106P125-60
10	Leg, Leveling
11	MAY 2205F053-19
12	Sensor, Oven
13	MAY 3601P356-45
14	SCREW (8BX3/8-NI)
15	PLATE, CONDUIT REINFORCEMENT
16	MAY 4005F704-51
17	MAY 7101P434-60
18	MAY 4005F753-45
19	COVER, WIRE (LWR)
20	MAY 4002F347-51
21	MAY W10162385
22	MAY 7101P336-60
23	MAY 3604F381-19
24	CLIP
25	MAY 7402P109-60
26	MAY 3801P822-45
27	MAY 7407P181-60
28	RANGE ONLY 40W 120V APPL BULB
29	MAY 8002P104-60
30	MAY 3804F316-51
31	MAY 7101P500-60
32	MAY 3801P798-51
33	Screw (Black) (2)
34	MAY 7002P494-60
35	MAY 7101P388-60
36	SCREW (10-24X5/16-NI)
37	MAY 7101P618-60
38	MAY 7101P385-60
