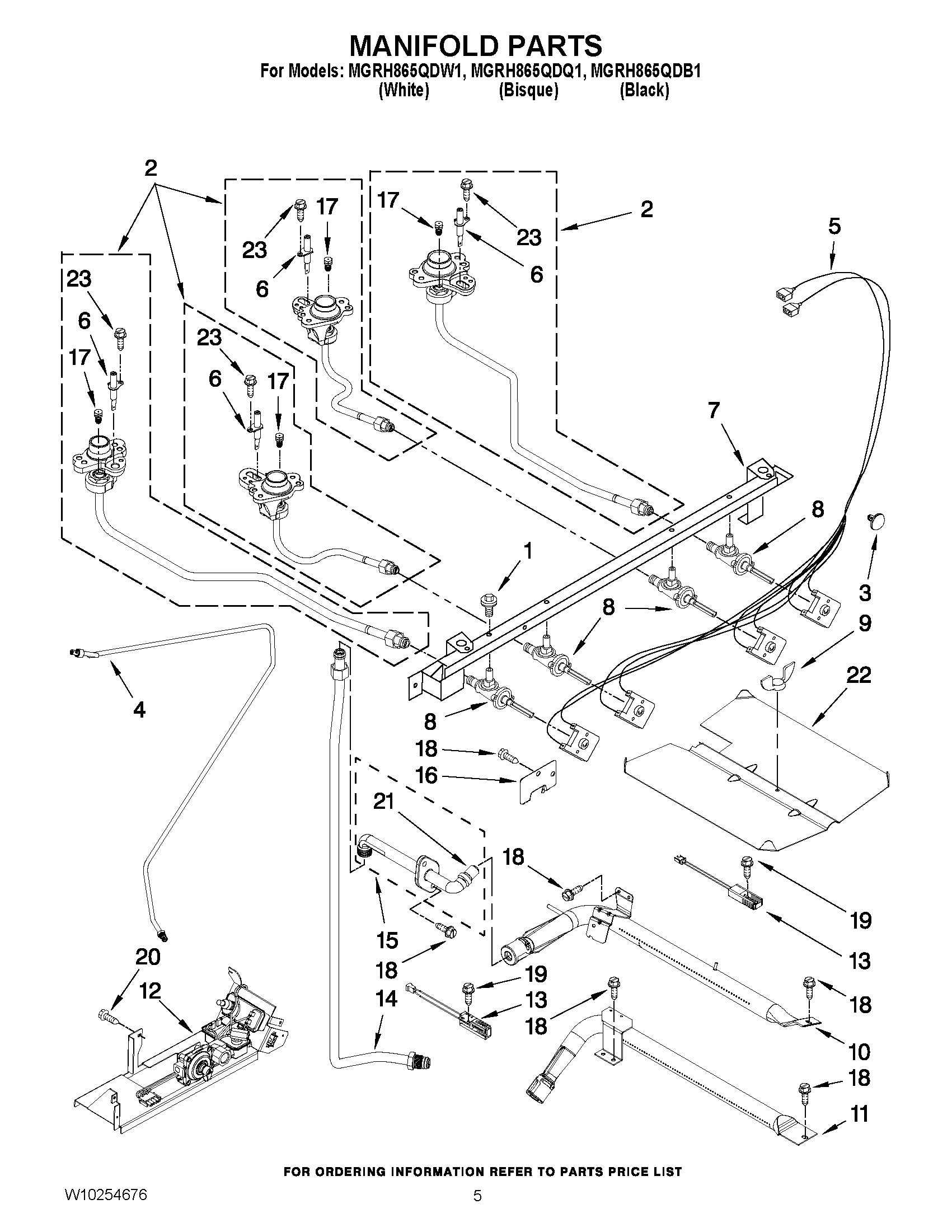

MGRH865QDB1 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 5789A598-60
1	MAY 7101P651-60
2	MAY 7527P123-60
2	MAY 7527P124-60
2	MAY 7527P095-60
2	MAY 7527P098-60
3	MAY 8010P149-60
4	MAY 7506P361-60
5	MAY 7403P982-60
6	WP74009958 Whirlpool Spark Electrode Assembly
7	MAY 7513P523-60
8	MAY 7502P501-60
8	VALVE (LR,LF,RR)
8	VALVE (CENTER)
9	NUT, WING
10	MAY 7505P311-60
11	MAY 7505P331-60
12	MAY 7501P233-60
13	IGNITOR, OVEN
13	MAY 7432P136-60
14	MAY 7506P368-60
15	MAY 7507P357-60
16	MAY 4005F421-45
17	MAY 7509P118-60
17	MAY 7509P117-60
17	MAY 7509P119-60
17	MAY 7509P121-60
18	MAY 7101P388-60
19	SCREW (10-24X5/16-NI)
20	SCREW, GROUND (GRN)
21	MAY 7507P366-60
22	MAY 3601P336-45
23	MAY 8273062
