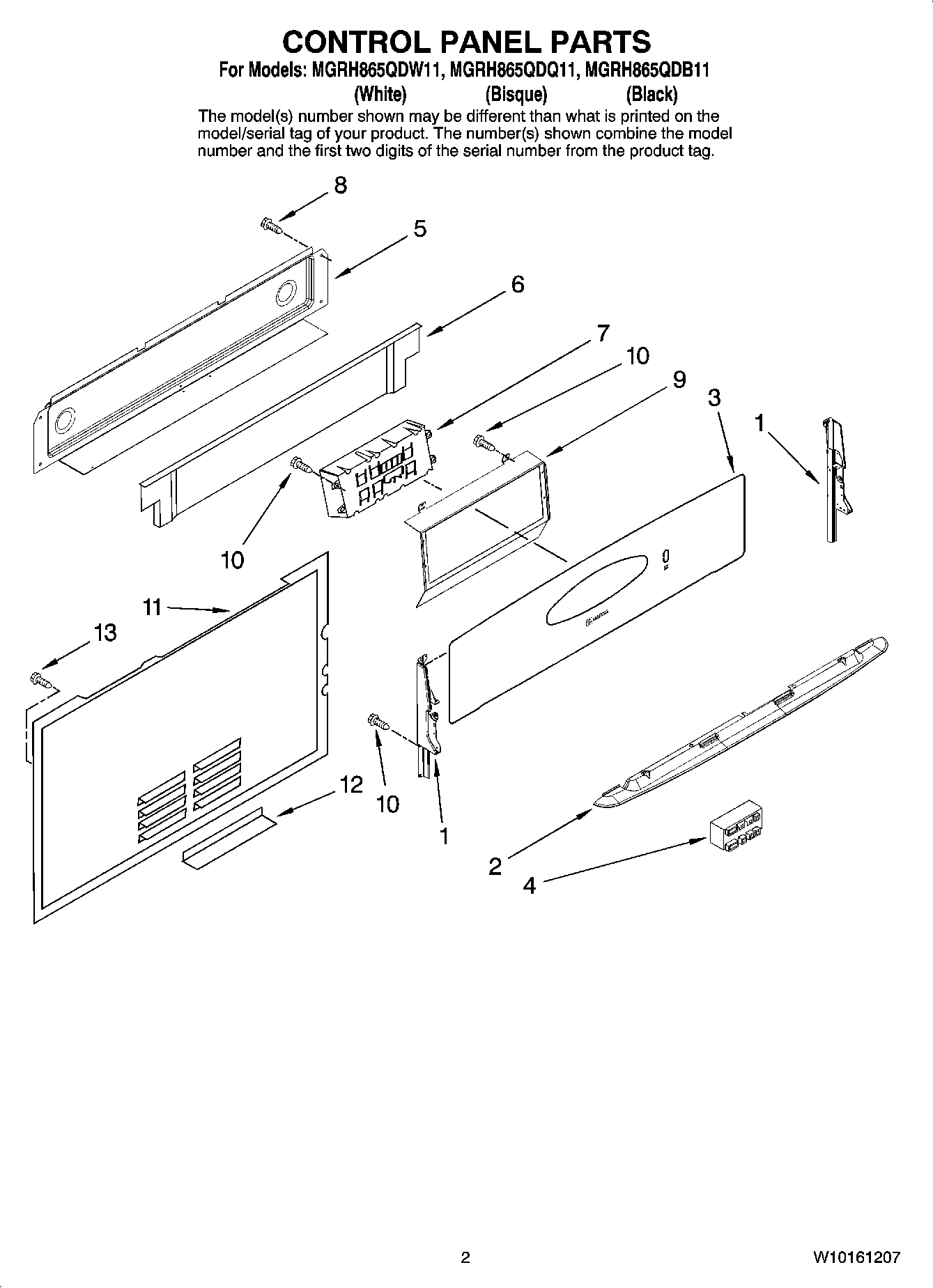

MGRH865QDB11 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Latch Assembly
1	END CAP (RT-WHT)
1	END CAP (RT-BSQ)
1	END CAP (LT-BSQ)
1	End Cap (Right Black)
1	End Cap (Left Black)
2	SHIELD, HEAT VISOR (BSQ)
2	MAY 74009202
2	MAY 74009203
3	PANEL, BACKGUARD (WHT)
3	PANEL, BACKGUARD (BLK)
3	SWITCH, INFINITE
4	74008821 Whirlpool Spark Module
5	COVER, REAR WIRE
6	MAY 74009444
7	MAY W10141396
7	MAY W10145166
7	MAY W10145167
8	SCREW
9	BRACKET, CLOCK
10	WP74003976 Whirlpool Screw
11	COVER, MAIN WIRE (GAS)
12	BOTTOM, REAR COVER
13	MAY 71001394
